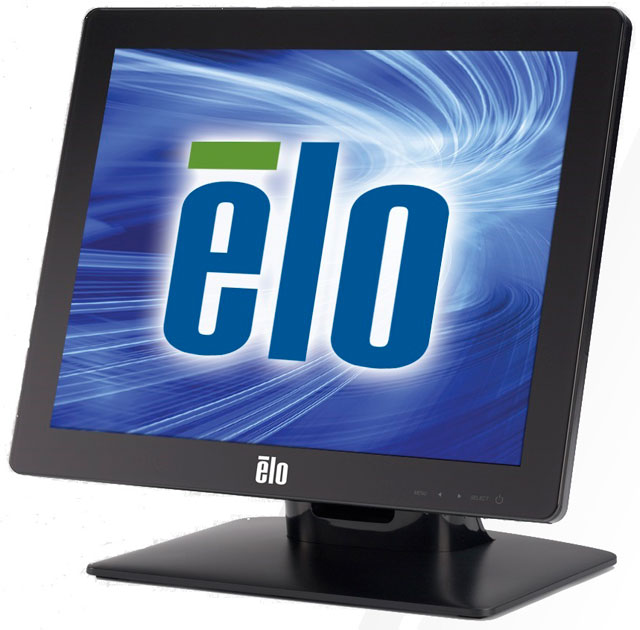

Elo 1517L Touchscreen

Sleek and thin design with “built for touch” reliability

Elo 1517L  -  The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged \built for touch\" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found."
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$687.31
In Stock
Elo 1517L Touchscreen
Elo 1517L Touchscreen
Elo 1517L Touchscreen
Elo 1517L Touchscreen Elo 1517L Touchscreen

Accessories For Elo 1517L Touchscreen

Subscribe & Save Eligible

Category

Elo 1517L Touchscreen Options

  • Elo E344758 Touchscreen

    Elo E344758 Touchscreen
    15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4:3 Aspect Ratio, IntelliTouch Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA Video Interface, RS232 Serial/USB Touch Controller Interface, Anti-Glare, Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.
    Item on backorder — chat for lead time
    $701.25
    Add to Quote
  • Elo E273226 Touchscreen

    Elo E273226 Touchscreen
    15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4:3 Aspect Ratio, IntelliTouch ZB Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA Video Interface, RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.
    Item on backorder — chat for lead time
    $720.80
    Add to Quote
  • Elo E523163 Touchscreen

    Elo E523163 Touchscreen
    15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4:3 Aspect Ratio, AccuTouch ZB Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 240 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA Video Interface, RS232 Serial/USB Touch Controller Interface, Anti-Glare, Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.
    In Stock
    $687.31
    Add to Quote
  • Elo E144246 Touchscreen

    Elo E144246 Touchscreen
    15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4:3 Aspect Ratio, AccuTouch ZB Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 240 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.
    In Stock
    $730.65
    Add to Quote
  • Elo E829550 Touchscreen

    Elo E829550 Touchscreen
    15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4:3 Aspect Ratio, IntelliTouch ZB Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA Video Interface, RS232 Serial/USB Touch Controller Interface, Clear, Zero-Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.
    Item on backorder — chat for lead time
    $751.65
    Add to Quote
  • Elo E596184 Touchscreen

    Elo E596184 Touchscreen
    Touchscreen Monitors, Elo 1517L, 15" LCD (LED Backlight) Desktop, Projected Capacitive 10-touch, USB & RS232 Controller, Anti-glare, Zero-bezel, VGA video interface, Black, Worldwide
    In Stock
    $829.82
    Add to Quote
  • Elo E953836 Touchscreen

    Elo E953836 Touchscreen
    Elo 1517L 15" LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - iTouch - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, China RoHS, WEEE - 3 Year
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
  • Elo E999454 Touchscreen

    Elo E999454 Touchscreen
    Elo 1517L 15" LCD Touchscreen Monitor - 4:3 - 25 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA-2 - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, China RoHS, WEEE - 3 Year
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
  • Elo E532051 Touchscreen

    Elo E532051 Touchscreen
    Elo 1517L Rev B 15" LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - White - RoHS, China RoHS, WEEE - 3 Year
    Item on backorder — chat for lead time
    Discontinued See Replacement
  • Elo E579160 Touchscreen

    Elo E579160 Touchscreen
    Elo 1517L 15" LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - Surface Acoustic Wave - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - White
    Item on backorder — chat for lead time
    Discontinued See Replacement

Frequently Asked Questions

The Elo 1517L is offered with multiple touch technology options to suit different environments. You can choose from AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments due to its proven ability to survive splashing liquids, food, and grease.

Yes, the 1517L is specifically designed for high-use public venues and is well-suited for point-of-sale, point-of-information, point-of-service, loyalty systems, and interactive digital signage applications. Its retail-focused feature set and rugged 'built for touch' design make it an attractive solution for commercial touchmonitor needs in retail and hospitality environments.

The 1517L offers flexible mounting capabilities, including desktop, wall, and VESA mounting options. This versatility allows you to deploy the touchmonitor in various configurations depending on your space and application requirements.

The 1517L includes both USB and RS232 serial connections for touch interface communication. Additionally, the touchmonitor can be customized with an integrated magnetic stripe reader (MSR) that is easily installed by the user, providing an elegant, integrated solution.

The 1517L uses state-of-the-art LED backlights that deliver 60% energy savings compared to traditional display technology. This makes it an environmentally friendly and cost-effective choice for commercial installations while maintaining excellent brightness of up to 250 nits.

The 1517L is available with your choice of antiglare or clear glass, and comes in both black or white color options. The 15-inch display features a native resolution of 1024 x 768 with a contrast ratio of 700:1 and wide viewing angles of +/-80° horizontal and +/-70° vertical.

Full specifications (PDF)

Elo 1517L Touchscreen Model Overview

The 1517L 15-inch LED Desktop Touchmonitor from Elo Touch Solutions is a stylish and robust solution designed for high-traffic commercial environments. With its "built for touch" reliability, this monitor withstands continuous public use while offering sleek aesthetics and energy efficiency. Enhanced by LED technology for 60% energy savings, it delivers exceptional performance in retail, hospitality, and interactive digital signage applications. The monitor is available in various touch technologies to meet diverse user needs, ensuring an engaging and intuitive experience.


Key Features:

  • Sleek and thin design with built for touch reliability
  • 60% Energy Savings using LED Technology
  • Integrated cable management for a tidy workspace
  • Available with Antiglare or Clear glass
  • Black or White color options
  • Mountable on desktop, wall, or VESA
  • 3-Year Standard Warranty

Specifications:

  • Model: 1517L
  • Color: Black or White
  • Active Display Area: 11.97 x 8.98 inches
  • Monitor Dimensions (with stand): 14.1 x 7.8 x 12.5 inches
  • Panel Thickness: 1.7 inches
  • Diagonal Size: 15.0 inches
  • Native Resolution: 1024 x 768
  • Brightness: Up to 250 nits
  • Response Time: 16 msec
  • Viewing Angle: Horizontal +/-80° / Vertical +/-70°
  • Contrast Ratio: 700:1
  • Touch Interface: Serial (RS232) and USB
  • Warranty: 3 Years Standard
