Elo E829550 Touchscreen

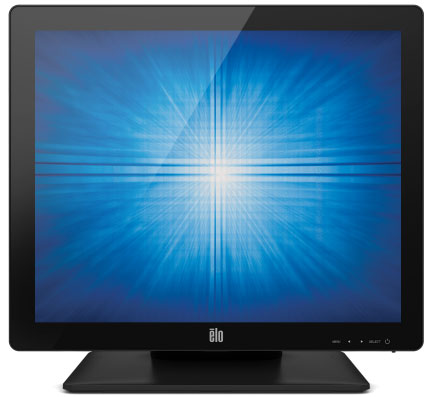

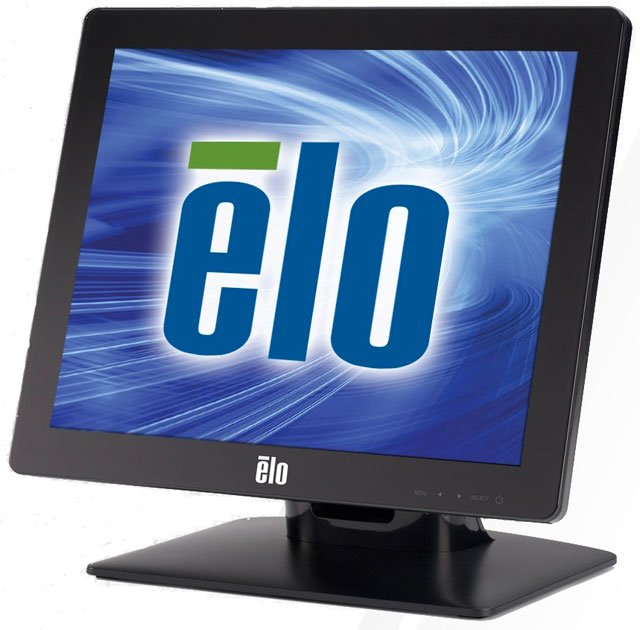

Elo 1517L -
15" LCD Touchscreen Monitor - 4: 3 - 16 ms - 15" Class - Surface Acoustic Wave - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.2 Million Colors - 700: 1 - 250 Nit - LED Backlight - USB - VGA - Black -, WEEE, China - 3 Year
Temporarily out of stock; available to order
Sleek and thin design with "built for touch" reliability
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
Technical Information
- Horizontal Viewing Angle: 160°
- Vertical Viewing Angle: 140°
- Backlight Technology: LED
- Adjustable Display Angle: Yes
- Screen Mode: XGA-2
- Features: Security Lock
- Mount Type:
- Desk Mountable
- Wall Mountable
- Pole Mount
- Screen Size: 15"
- Aspect Ratio: 4:3
- Response Time: 16 ms
General Information
- Product Type: LCD Touchscreen Monitor
- Brand Name: Elo
- Manufacturer: Elo Touch Solutions, Inc
- Product Model: 1517L
- Product Name: 1517L Rev B 15-inch Multifunction Desktop
Physical Characteristics
- VESA Mount Compatible: Yes
- VESA Mount Standard: 75 x 75
- Height with Stand: 12.50"
- Width with Stand: 14.10"
- Depth with Stand: 7.80"
- Color: Black
- Weight (Approximate): 9.48 lb
Interfaces/Ports
- USB: Yes
- VGA: Yes
- Serial Port: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
- China RoHS
- Certifications & Standards:
- C-Tick
- cUL
- IC
- CCC
- CE
- VCCI
- KCC
- e-Standby
- CoC
- BSMI
- UL
- FCC
- CB
- IMERC
- IEC 60320 C6
- C-Tick
- cUL
- IC
- CCC
- CE
- VCCI
- KCC
- e-Standby
- CoC
- BSMI
- UL
- FCC
- CB
- IMERC
- IEC 60320 C6
- Package Contents:
- 1517L Rev B 15-inch Multifunction Desktop
- Detachable Touch and Video Cables
- Power Cable
- 1517L Rev B 15-inch Multifunction Desktop
- Detachable Touch and Video Cables
- Power Cable
Power Description
- Operating Power Consumption: 12 W
- Standby Power Consumption: 1.70 W
- Off-Mode Power Consumption: 1.30 W
- Input Voltage:
- 110 V AC
- 220 V AC
- 12 V DC
Video
- Standard Refresh Rate: 75 Hz
- Brightness: 250 Nit
- Color Supported: 16.2 Million Colors
- Maximum Resolution: 1024 x 768
- Contrast Ratio: 700:1
Touchscreen Information
- Touchscreen: Yes
- Touchscreen Type: Surface Acoustic Wave
Warranty
- Limited Warranty: 3 Year
Full specifications (PDF)| Brand | Elo |
| Model | 1517L |
| Screen Size | 15 |
| Display Type | LCD |
| Color | Black |
| Interface | USB, RS-232 Serial |
The Elo E829550 is also known as Elo Touch Systems ELO-E829550 .
