Elo E532051 Touchscreen

Part Number: E532051

Model: 1517L

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Screen Size Class

15"

Viewable Screen Size

15"

Screen Mode

XGA

Screen Surface

Anti-glare

Product Description:

Elo 1517L Rev B 15" LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - White - RoHS, China RoHS, WEEE - 3 Year

Explore all Elo 1517L Touchscreens

Add to Quote

Overview

Full specifications (PDF)

Elo 1517L Touchscreen Model Overview

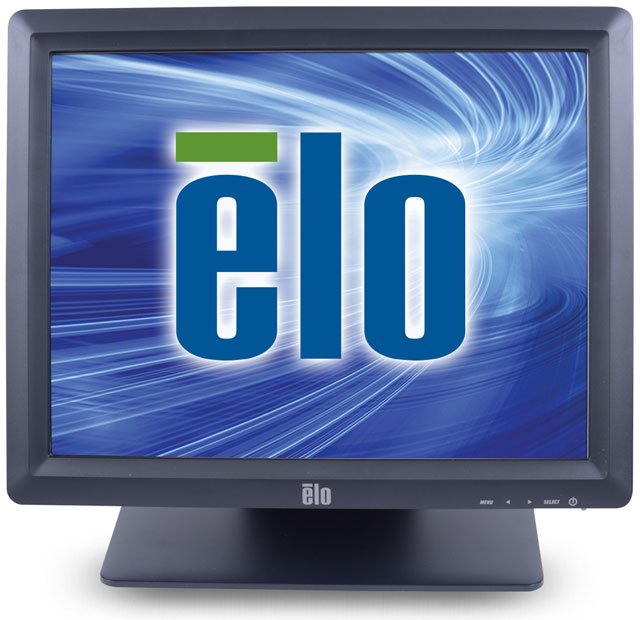

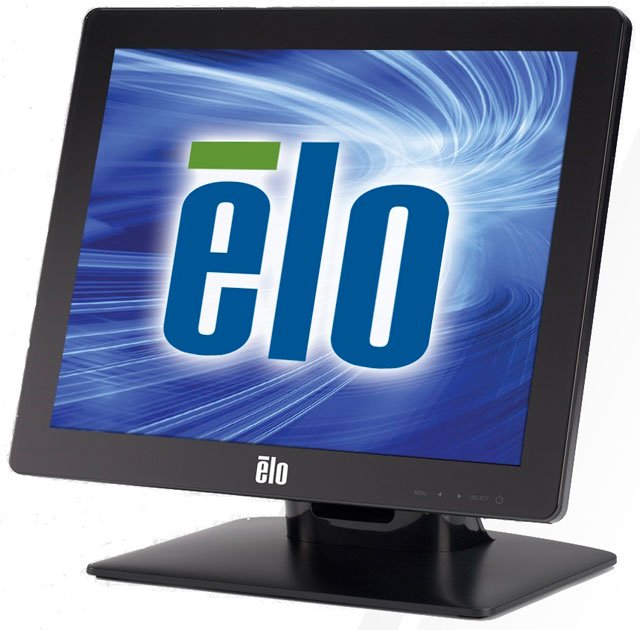

The 1517L 15-inch LED Desktop Touchmonitor from Elo Touch Solutions is a stylish and robust solution designed for high-traffic commercial environments. With its "built for touch" reliability, this monitor withstands continuous public use while offering sleek aesthetics and energy efficiency. Enhanced by LED technology for 60% energy savings, it delivers exceptional performance in retail, hospitality, and interactive digital signage applications. The monitor is available in various touch technologies to meet diverse user needs, ensuring an engaging and intuitive experience.

Key Features:

Sleek and thin design with built for touch reliability
60% Energy Savings using LED Technology
Integrated cable management for a tidy workspace
Available with Antiglare or Clear glass
Black or White color options
Mountable on desktop, wall, or VESA
3-Year Standard Warranty

Specifications:

Model: 1517L
Color: Black or White
Active Display Area: 11.97 x 8.98 inches
Monitor Dimensions (with stand): 14.1 x 7.8 x 12.5 inches
Panel Thickness: 1.7 inches
Diagonal Size: 15.0 inches
Native Resolution: 1024 x 768
Brightness: Up to 250 nits
Response Time: 16 msec
Viewing Angle: Horizontal +/-80° / Vertical +/-70°
Contrast Ratio: 700:1
Touch Interface: Serial (RS232) and USB
Warranty: 3 Years Standard

Elo E532051 Touchscreen Overview

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA

Screen Surface:

Anti-glare

Response Time:

16 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

160°

Vertical Viewing Angle:

140°

Backlight Technology:

LED

Features:

Security Lock

Video

Maximum Resolution:

1024 x 768

Standard Refresh Rate:

75 Hz

Color Supported:

16.2 Million Colors

Contrast Ratio:

700:1

Brightness:

250 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

5-wire Resistive

Interfaces/Ports

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

12 W

Standby Power Consumption:

1.70 W

Off-Mode Power Consumption:

1.30 W

Physical Characteristics

Product Color:

White

Height with Stand:

12.50"

Width with Stand:

14.10"

Depth with Stand:

7.80"

Weight (Approximate):

9.48 lb

Miscellaneous

Package Contents:

1517L Rev B 15-inch Multifunction Desktop
Detachable Touch Cable
Video cable

Certifications & Standards:

Argentinian S-Mark
Australia C-Tick
Canada cUL
IC
China CCC
Europe CE
Japan VCCI
Korea KCC
e-Standby
Mexico CoC
Taiwan BSMI Mark
United States UL
FCC
International CB
IMERC

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
China RoHS
WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 7411493344190

EAN: 7411493344190

UNSPSC: 43211903
