Elo E344758 Touchscreen

Elo 1517L - 15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4:3 Aspect Ratio, IntelliTouch Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA Video Interface, RS232 Serial/USB Touch Controller Interface, Anti-Glare, Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.
  • The XGA-2 touchscreen highlights XGA-2 display with the resolution of up to 1024 x 768 pixels
  • The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
Read More
$656.14
In Stock
Add to Quote

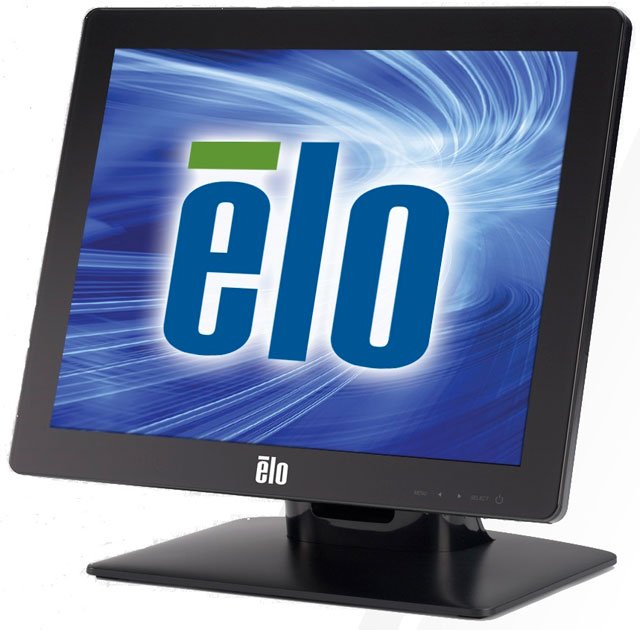

Elo 1517L Touchscreen Model Overview
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
Elo E344758 Touchscreen Overview

The 1517L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1517L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA-2
Screen Surface:
Anti-glare
Response Time:
25 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
140°
Adjustable Display Angle:
Yes
Mount Type:
Desk Mountable
Backlight Technology:
LED
Features:
Security Lock
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
700:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
IntelliTouch Surface Wave
Interfaces/Ports
USB:
Yes
USB Standard:
USB 1.1
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
10 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
Black
Height:
19"
Width:
9.1"
Height with Stand:
12.50"
Width with Stand:
14.10"
Depth with Stand:
6.80"
Weight (Approximate):
15.60 lb
Weight with Stand (Approximate):
9 lb
Miscellaneous
Package Contents:
  • 1517L Rev A Multifunction 15-inch Desktop Touchmonitor
  • Power Cable
  • Touch/Video Cables
Certifications & Standards:
  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • e-Standby
  • CoC
  • BSMI
  • UL
  • FCC
  • CB
  • IMERC
  • IEC 60320 C6
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0618156523108, 0745254482690, 0834619001277, 7411493344268
UPC: 618156523108, 741149334426, 745254482690, 834619001277
EAN: 0618156523108, 0745254482690, 0834619001277, 7411493344268
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E344758 Touchscreen is also known as ELO-E344758 or E344758.
