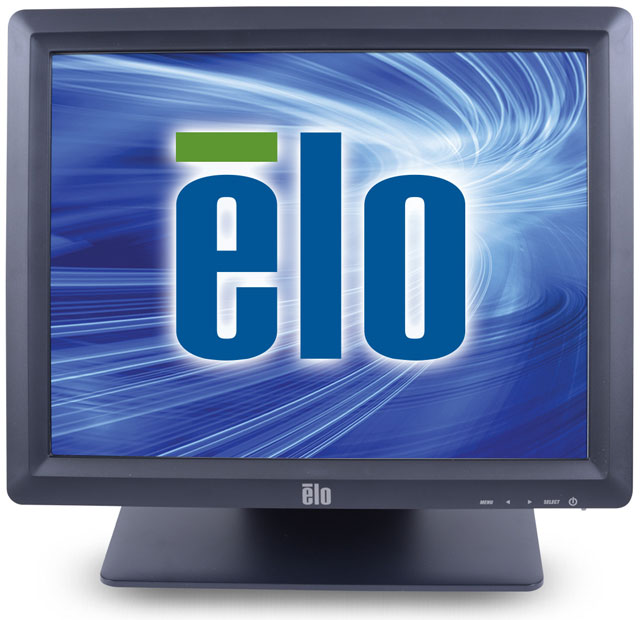

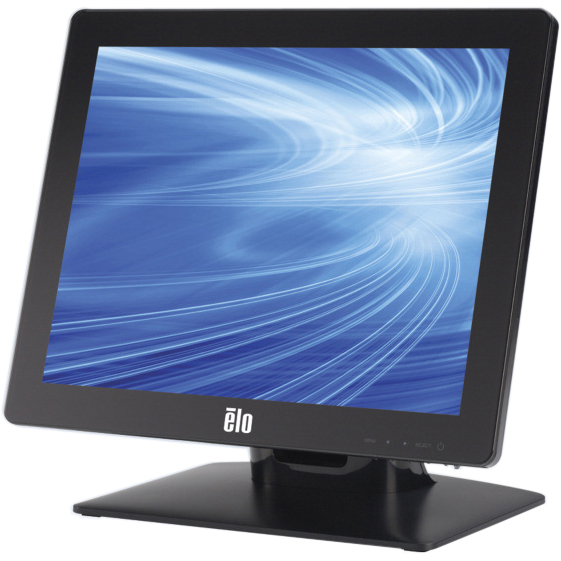

Elo E579160 Touchscreen

Elo 1517L - 15" LCD Touchscreen Monitor - 4: 3 - 16 ms - 15" Class - Surface Acoustic Wave - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.2 Million Colors - 700: 1 - 250 Nit - LED Backlight - USB - VGA - White
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • The SAW touchscreen innovation conveys unrivaled picture clarity, determination, light transmission, and dependability by using clear glass that keeps on working regardless of the possibility of scratches
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Full specifications (PDF)

Sleek and thin design with "built for touch" reliability
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touch monitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel. The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.
Elo E579160 Overview

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

Loading...

Full specifications (PDF)

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA-2
Screen Surface:
Anti-glare
Response Time:
16 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
140°
Adjustable Display Angle:
Yes
Mount Type:
  • Desk Mountable
  • Wall Mountable
  • Pole Mount
Backlight Technology:
LED
Features:
Security Lock
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.2 Million Colors
Contrast Ratio:
700:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Operating Power Consumption:
12 W
Standby Power Consumption:
1.70 W
Off-Mode Power Consumption:
1.30 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color:
White
Height with Stand:
12.50"
Width with Stand:
14.10"
Depth with Stand:
7.80"
Weight (Approximate):
9.48 lb
Item Numbers
GTIN: 7411493344336
EAN: 7411493344336
UNSPSC: 43211903

Loading...

The Elo E579160 is also known as Elo Touch Systems ELO-E579160 .
