Elo E953836 Touchscreen

Part Number: E953836
Model: 1517L
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Response Time
16 ms

Product Description:

  Elo 1517L 15" LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - iTouch - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, China RoHS, WEEE - 3 Year
Explore all Elo 1517L Touchscreens
Add to Quote
Elo E953836 Touchscreen
Elo E953836 Touchscreen
Elo E953836 Touchscreen
Elo E953836 Touchscreen
Elo E953836 Touchscreen
Elo E953836 Touchscreen
Elo E953836 Touchscreen
Elo E953836 Touchscreen
Elo E953836 Touchscreen Elo E953836 Touchscreen Elo E953836 Touchscreen Elo E953836 Touchscreen Elo E953836 Touchscreen Elo E953836 Touchscreen Elo E953836 Touchscreen

Full specifications (PDF)

Elo 1517L Touchscreen Model Overview

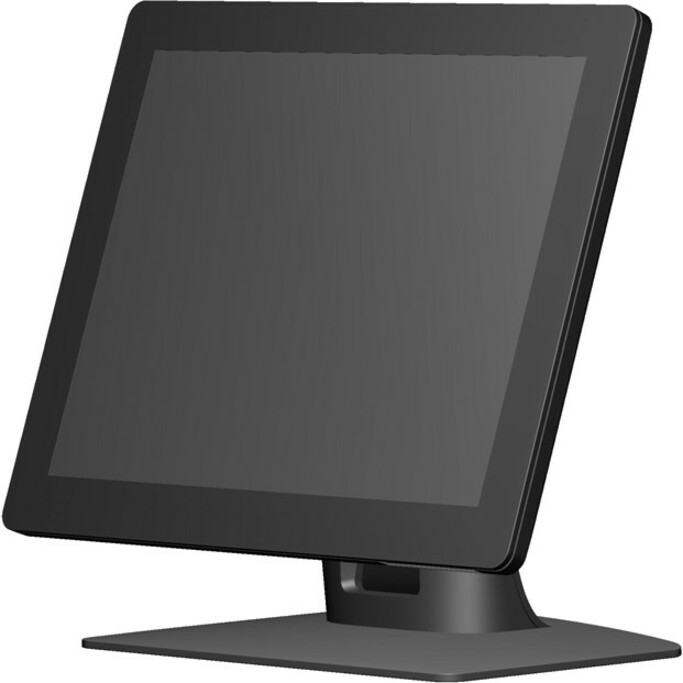

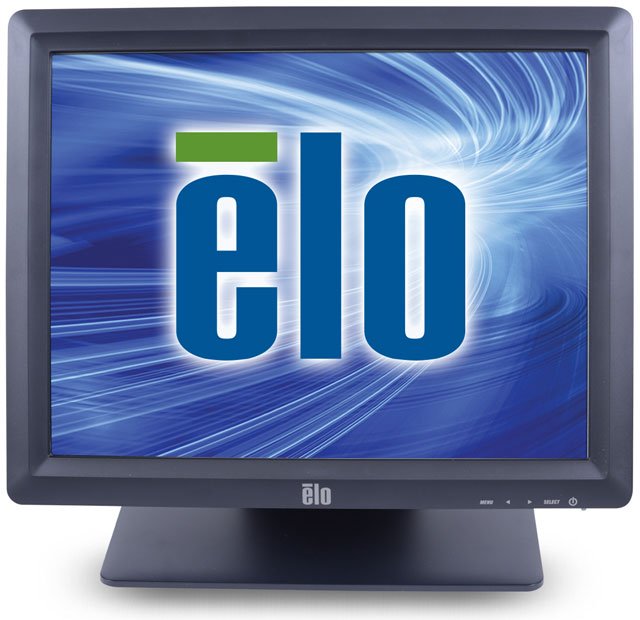

The 1517L 15-inch LED Desktop Touchmonitor from Elo Touch Solutions is a stylish and robust solution designed for high-traffic commercial environments. With its "built for touch" reliability, this monitor withstands continuous public use while offering sleek aesthetics and energy efficiency. Enhanced by LED technology for 60% energy savings, it delivers exceptional performance in retail, hospitality, and interactive digital signage applications. The monitor is available in various touch technologies to meet diverse user needs, ensuring an engaging and intuitive experience.


Key Features:

  • Sleek and thin design with built for touch reliability
  • 60% Energy Savings using LED Technology
  • Integrated cable management for a tidy workspace
  • Available with Antiglare or Clear glass
  • Black or White color options
  • Mountable on desktop, wall, or VESA
  • 3-Year Standard Warranty

Specifications:

  • Model: 1517L
  • Color: Black or White
  • Active Display Area: 11.97 x 8.98 inches
  • Monitor Dimensions (with stand): 14.1 x 7.8 x 12.5 inches
  • Panel Thickness: 1.7 inches
  • Diagonal Size: 15.0 inches
  • Native Resolution: 1024 x 768
  • Brightness: Up to 250 nits
  • Response Time: 16 msec
  • Viewing Angle: Horizontal +/-80° / Vertical +/-70°
  • Contrast Ratio: 700:1
  • Touch Interface: Serial (RS232) and USB
  • Warranty: 3 Years Standard
Elo E953836 Touchscreen Overview
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
16 ms
Aspect Ratio:
4:3
Mount Type:
  • Wall Mountable
  • Pole Mount
Backlight Technology:
LED
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.2 Million Colors
Contrast Ratio:
700:1
Brightness:
250 Nit
Audio
Speakers:
No
Touchscreen Information
Touchscreen Type:
iTouch
Interfaces/Ports
DVI:
No
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
12 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
Black
Height with Stand:
12.50"
Width with Stand:
14.10"
Depth with Stand:
7.80"
Weight (Approximate):
9.50 lb
Miscellaneous
Package Contents:
  • 1517L 15-inch Multifunction Desktop
  • Detachable Touch and Video Cables
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0741149329026, 5711045497629, 7411493290268
UPC: 741149329026
EAN: 0741149329026, 5711045497629, 7411493290268
UNSPSC: 43211903

Recommended Accessories

Category

  • Digital Signage Display Accessories (1)
  • Mounting Hardware and Stands (1)
  • Touchscreen Accessories (5)

Recommended Accessories for Model: Elo E953836 Touchscreen

Top Digital Signage Display Accessories Purchased With Elo E953836

Top Mounting Hardware and Stands Purchased With Elo E953836

Top Touchscreen Accessories Purchased With Elo E953836

See All Touchscreen Accessories for Elo E953836 Touchscreen >
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E953836 Touchscreen is also known as ELO-E953836 or E953836.
