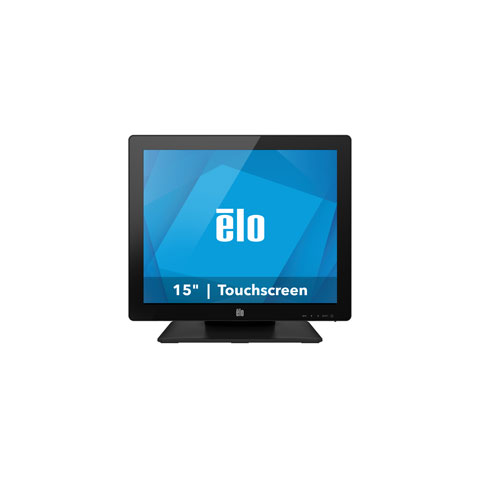

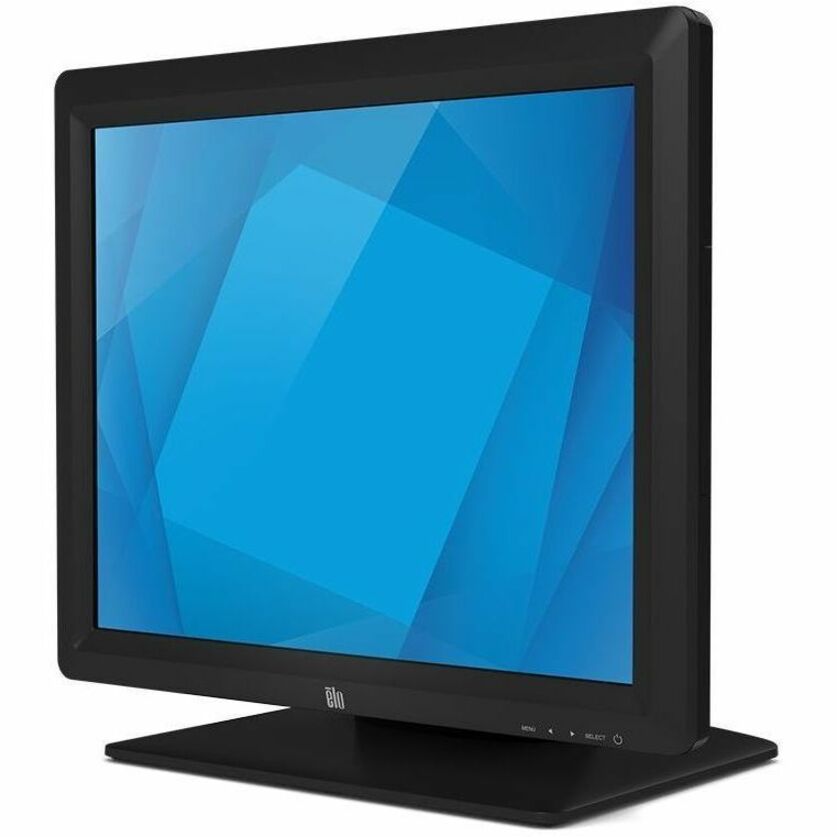

The 1517L 15-inch LED Desktop Touchmonitor from Elo Touch Solutions is a stylish and robust solution designed for high-traffic commercial environments. With its "built for touch" reliability, this monitor withstands continuous public use while offering sleek aesthetics and energy efficiency. Enhanced by LED technology for 60% energy savings, it delivers exceptional performance in retail, hospitality, and interactive digital signage applications. The monitor is available in various touch technologies to meet diverse user needs, ensuring an engaging and intuitive experience.
Key Features:
Sleek and thin design with built for touch reliability
60% Energy Savings using LED Technology
Integrated cable management for a tidy workspace
Available with Antiglare or Clear glass
Black or White color options
Mountable on desktop, wall, or VESA
3-Year Standard Warranty
Specifications:
Model: 1517L
Color: Black or White
Active Display Area: 11.97 x 8.98 inches
Monitor Dimensions (with stand): 14.1 x 7.8 x 12.5 inches
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch. | MSR ready.
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.
Other features.
Sleek and thin design with built-for-touch reliability
Flexible and space-saving
60% Energy savings using LED technology
Sealed touchscreen against dirt, dust and liquids
Removable base and mounting options including VESA, wall and pole-mounting
USB and RS232 serial connections
Typical power consumption: 12W, internal and external power options
What touch technology does the Elo E596184 1517L touchscreen use?
The Elo E596184 1517L features Projected Capacitive 10-touch technology, which provides reliable and responsive touch input for high-traffic public venues. This technology is built into a zero-bezel design that creates an uninterrupted surface area for easy cleaning and a modern appearance.
What video connectivity options are available on this touchscreen?
The Elo E596184 1517L includes a VGA video interface via a Mini D-Sub 15-Pin connector for analog video input. The monitor also features both USB and RS232 controller interfaces for touch input and system integration.
Is the Elo E596184 1517L suitable for point-of-sale and retail applications?
Yes, the Elo E596184 1517L is specifically designed for retail and commercial environments, making it well-suited for point-of-sale, point-of-information, point-of-service, shelf-level, and countertop interactive digital signage applications. Its rugged "built for touch" design and stylish appearance make it an attractive solution for high-use public venues.
What are the operating temperature and humidity specifications for this touchmonitor?
The Elo E596184 1517L operates reliably in temperatures from 32°F to 104°F (0°C to 40°C) and humidity levels of 20%–80% noncondensing. These specifications ensure dependable performance in typical commercial retail and warehouse environments.
Does the Elo E596184 1517L come with a warranty?
Yes, the Elo E596184 1517L includes a 3-year warranty, providing comprehensive coverage for your investment. We offer this touchscreen with full manufacturer support available from us today.
What mounting and installation options are available for the Elo E596184 1517L?
The Elo E596184 1517L features a removable base and includes a 75mm VESA mount for flexible installation options. It also has threaded-through mounting holes under the base, allowing for wall, arm, or countertop mounting configurations to suit your specific retail or warehouse setup.
The Elo E596184 Touchscreen is also known as
ELO-E596184
or E596184.
Full specifications (PDF)
