Elo E273226 Touchscreen

Elo 1517L - 15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4:3 Aspect Ratio, IntelliTouch ZB Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA Video Interface, RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.

Experience an energetic display of colors, contrast and pictures with the xga-2 lcd touchscreen monitor
The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
The XGA-2 touchscreen highlights XGA-2 display with the resolution of up to 1024 x 768 pixels
The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
Enjoy crisp content and energetic hues with the 250 Nit brightness
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Elo 1517L Touchscreens

$750.00

In Stock

Add to Quote

Overview

Full specifications (PDF)

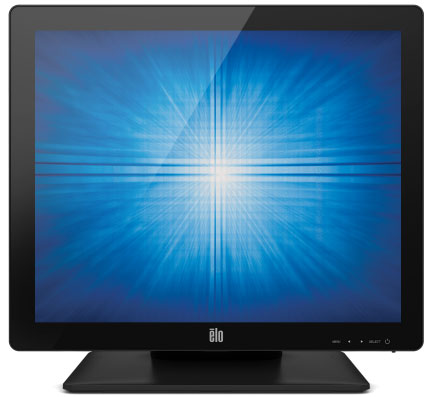

Elo 1517L Touchscreen Model Overview

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

Elo E273226 Touchscreen Overview

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA-2

Screen Surface:

Anti-glare

Response Time:

16 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

160°

Vertical Viewing Angle:

140°

Adjustable Display Angle:

Yes

Mount Type:

Desk Mountable
Wall Mountable
Pole Mount

Backlight Technology:

LED

Features:

Security Lock

Horizontal Frequency:

80 kHz

Video

Maximum Resolution:

1024 x 768

Standard Refresh Rate:

75 Hz

Color Supported:

16.2 Million Colors

Contrast Ratio:

700:1

Brightness:

250 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Interfaces/Ports

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC
12 V DC

Operating Power Consumption:

12 W

Standby Power Consumption:

1.70 W

Off-Mode Power Consumption:

1.30 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Product Color:

Black

Height:

Width:

19"

Height with Stand:

12.50"

Width with Stand:

14.10"

Depth with Stand:

7.80"

Weight (Approximate):

9.48 lb

Miscellaneous

Package Contents:

1517L Rev B 15-inch Multifunction Desktop
Detachable Touch and Video Cables
Power Cable

Certifications & Standards:

C-Tick
cUL
IC
CCC
CE
VCCI
KCC
e-Standby
CoC
BSMI
UL
FCC
CB
IMERC
IEC 60320 C6

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE
China RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0745235289119, 0834619001215, 0843296432953, 7411493347306

UPC: 745235289119, 834619001215, 843296432953

EAN: 0745235289119, 0834619001215, 0843296432953, 7411493347306

UNSPSC: 43211903
