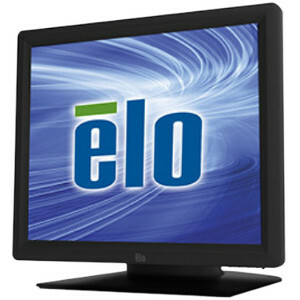

Elo E144246 Touchscreen

Part Number: E144246

Model: 1517L

$899.82

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Screen Size Class

15"

Viewable Screen Size

15"

Screen Mode

XGA-2

Screen Surface

Anti-glare

Product Description:

15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4:3 Aspect Ratio, AccuTouch ZB Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 240 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.

Explore all Elo 1517L Touchscreens

Add to Quote

Overview

Full specifications (PDF)

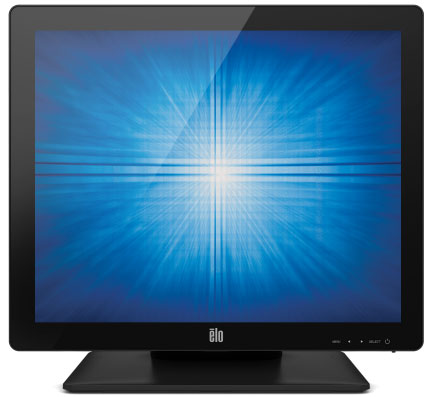

Elo 1517L Touchscreen Model Overview

The 1517L 15-inch LED Desktop Touchmonitor from Elo Touch Solutions is a stylish and robust solution designed for high-traffic commercial environments. With its "built for touch" reliability, this monitor withstands continuous public use while offering sleek aesthetics and energy efficiency. Enhanced by LED technology for 60% energy savings, it delivers exceptional performance in retail, hospitality, and interactive digital signage applications. The monitor is available in various touch technologies to meet diverse user needs, ensuring an engaging and intuitive experience.

Key Features:

Sleek and thin design with built for touch reliability
60% Energy Savings using LED Technology
Integrated cable management for a tidy workspace
Available with Antiglare or Clear glass
Black or White color options
Mountable on desktop, wall, or VESA
3-Year Standard Warranty

Specifications:

Model: 1517L
Color: Black or White
Active Display Area: 11.97 x 8.98 inches
Monitor Dimensions (with stand): 14.1 x 7.8 x 12.5 inches
Panel Thickness: 1.7 inches
Diagonal Size: 15.0 inches
Native Resolution: 1024 x 768
Brightness: Up to 250 nits
Response Time: 16 msec
Viewing Angle: Horizontal +/-80° / Vertical +/-70°
Contrast Ratio: 700:1
Touch Interface: Serial (RS232) and USB
Warranty: 3 Years Standard

Elo E144246 Touchscreen Overview

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA-2

Screen Surface:

Anti-glare

Response Time:

16 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

160°

Vertical Viewing Angle:

140°

Adjustable Display Angle:

Yes

Mount Type:

Desk Mountable
Wall Mountable
Pole Mount
Rear Mount

Backlight Technology:

LED

Features:

Security Lock

Video

Maximum Resolution:

1024 x 768

Standard Refresh Rate:

75 Hz

Color Supported:

16.2 Million Colors

Contrast Ratio:

700:1

Brightness:

250 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

5-wire Resistive

Interfaces/Ports

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Input Voltage:

110 V AC
220 V AC
12 V DC

Operating Power Consumption:

12 W

Standby Power Consumption:

1.70 W

Off-Mode Power Consumption:

1.30 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Product Color:

Black

Height:

16"

Height with Stand:

12.50"

Width with Stand:

14.10"

Depth with Stand:

7.80"

Weight (Approximate):

9.48 lb

Miscellaneous

Package Contents:

1517L Rev B 15-inch Multifunction Desktop
Detachable Touch and Video Cables
Power Cable

Certifications & Standards:

C-Tick
cUL
IC
CCC
CE
VCCI
KCC
e-Standby
CoC
BSMI
UL
FCC
CB
IMERC
IEC 60320 C6

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
China RoHS
WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0741149334815, 0834619001154, 4943783137777, 4943793109597, 4973163121980, 7411493348150

UPC: 741149334815, 834619001154

EAN: 0741149334815, 0834619001154, 4943783137777, 4943793109597, 4973163121980, 7411493348150

UNSPSC: 43211903
