Elo E523163 Touchscreen

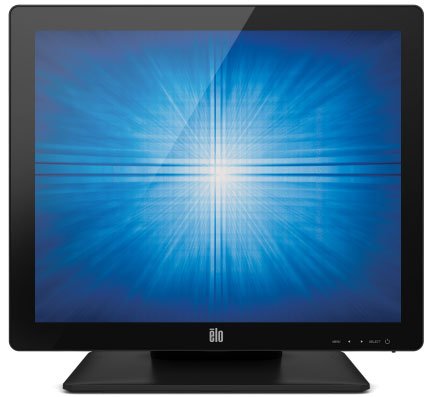

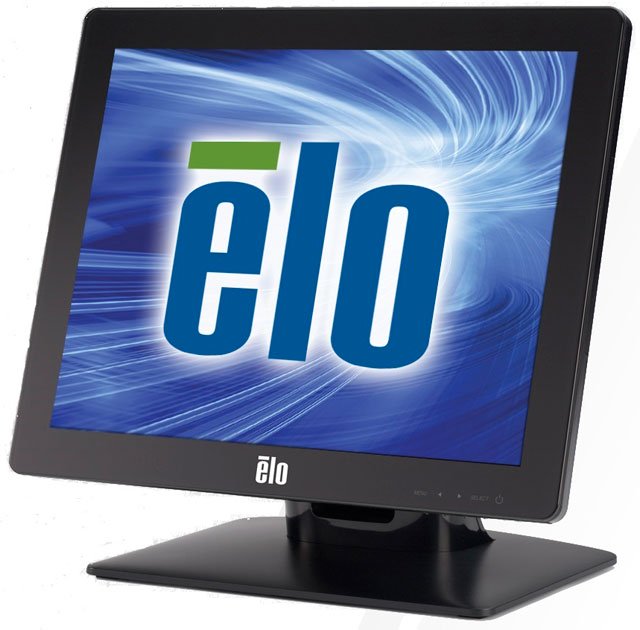

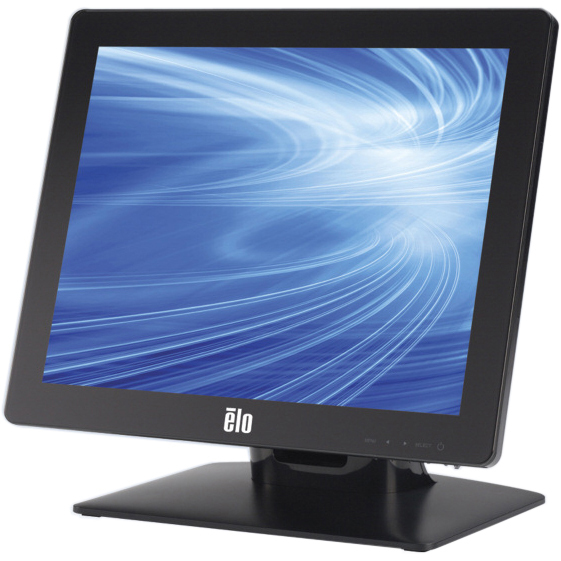

Elo 1517L - 15" Touchscreen Monitor, Elo 1517L, Desktop LCD, 4: 3 Aspect Ratio, AccuTouch ZB Single-Touch, 1024 x 768 XGA, 16.2 million Colors, 240 nits Brightness (typical), LED Backlight, 800: 1 Contrast Ratio (typical), VGA Video Interface, RS-232 Serial/USB Touch Controller Interface, Anti-Glare, Bezel, Stand, Black, 3-Year Warranty, Adjustable Display Angle, China, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E264383), Filler Plate.
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
$677.35
In Stock

Full specifications (PDF)

Sleek and thin design with "built for touch" reliability
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touch monitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel. The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.
Elo E523163 Overview

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

Loading...

Full specifications (PDF)

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA-2
Screen Surface:
Anti-glare
Response Time:
16 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
140°
Adjustable Display Angle:
Yes
Mount Type:
  • Desk Mountable
  • Wall Mountable
  • Pole Mount
Backlight Technology:
LED
Features:
Security Lock
Horizontal Frequency:
60 kHz
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
700:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
  • 12 V DC
Operating Power Consumption:
12 W
Standby Power Consumption:
1.70 W
Off-Mode Power Consumption:
1.30 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color:
Black
Height with Stand:
12.50"
Width with Stand:
14.10"
Depth with Stand:
7.80"
Weight (Approximate):
9.48 lb
Miscellaneous
Package Contents:
  • 1517L Rev B 15-inch Multifunction Desktop
  • Detachable Touch and Video Cables
  • Power Cable
Certifications & Standards:
  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • e-Standby
  • CoC
  • BSMI
  • UL
  • FCC
  • CB
  • IMERC
  • IEC 60320 C6
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0333727658439, 0722478139067, 0818213921827, 0818275635144, 0834619001222, 4943783193438, 4963273164960, 7411493344022
UPC: 333727658439, 722478139067, 818213921827, 818275635144, 834619001222
EAN: 0333727658439, 0722478139067, 0818213921827, 0818275635144, 0834619001222, 4943783193438, 4963273164960, 7411493344022
UNSPSC: 43211903

Loading...

The Elo E523163 is also known as Elo Touch Systems ELO-E523163 .
