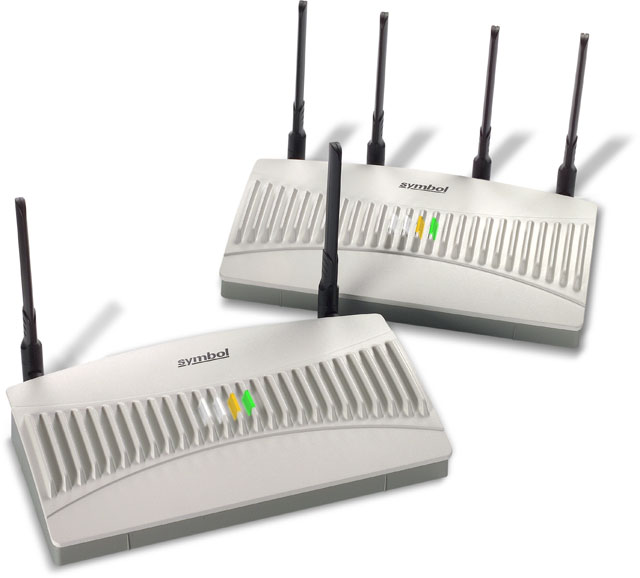

Motorola AP-5131 Access Point

Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP-5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP-5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP-5131 integrates a Router and DHCP Server for local LAN connectivity, a configurable stateful inspection firewall for LAN isolation, a VPN endpoint for secure backhaul connectivity, and a QoS Engine for superior performance of real-time video and voice applications. The AP-5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP-5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.

Full specifications (PDF)

$628.10 to $1,139.20

Motorola AP-5131
Motorola logo
Motorola Partner Logo
Part # Description Availability Price
AP-5131-13040-WW Symbol AP 5131
Dual Radio: Radio Only If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. Antennas not included. See accessories.
Ships
Same Day
$628.10
SNB-5131FL-P-1 Motorola AP-5131
Access Point Bundle: 1 AP5131 Sensor (Part# AP-5131-13040-WW) & external dual-band paddle antennas (Part# ML-2452-APA2-01), 1 base WIPS license (Part# AD-SNFL-P-1), requires 1 year service agreement for each component.
Ships
Same Day
See Price in Cart
AP-5131-40020-WW This part is replaced by AP-6521-60020-WR.
Symbol AP 5131
Single Radio Only. RoHS. If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. See accessories.
See
Replacement
AP-5131-40021-WWR This part is replaced by AP-6521-60020-WR.
Symbol AP 5131
Single Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF). Antennas not included. See accessories. RoHS.
See
Replacement
AP-5131-40021-WW This part is replaced by AP-5131-40021-WWR.
Symbol AP 5131
Single Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF)
See
Replacement
AP-5131-40022-WW This part is replaced by AP-6521-60010-WR.
Symbol AP 5131
Single Radio Kit includes 2 Dual-band Antennas (Part# ML-2452-APA2-01)
See
Replacement
AP-5131-40023-MCRS Symbol AP 5131
AP-5131 Access Point Includes: Line Cord SI Bundle
Check
Availability
AP-5131-40023-WWR This part is replaced by AP-6521-60010-WR.
Symbol AP 5131
Single Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF) and 2 dual-band antennas (Part# ML-2452-APA2-01). RoHS.
See
Replacement
AP-5131-40023-WW This part is replaced by AP-5131-40023-WWR.
Symbol AP 5131
Single Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF). Order 2 Dual-band Antennas (Part# ML-2452-APA2-01) separately.
See
Replacement
AP-5131-13041-WWR This part is replaced by AP-6532-66040-WR.
Symbol AP 5131
Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF). RoHS. Antennas not included.
See
Replacement
AP-5131-13041-WW This part is replaced by AP-5131-13041-WWR.
Symbol AP 5131
Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF)
See
Replacement
AP-5131-13042-WW This part is replaced by AP-6532-66030-US.
Symbol AP 5131
Dual Radio Kit includes 4 Dual-band Antennas (Part# ML-2452-APA2-01) If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. See accessories.
See
Replacement
AP-5131-13043-WWR This part is replaced by AP-6532-66030-WR.
Symbol AP 5131
Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF) and 4 Dual-band Antennas (Part# ML-2452-APA2-01). RoHS. Requires AC Line cord, if using in the USA order (Part# 23844-00-00R).
See
Replacement
AP-5131-13043-WW This part is replaced by AP-5131-13043-WWR.
Symbol AP 5131
Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF) and 4 Dual-band Antennas (Part# ML-2452-APA2-01)
See
Replacement
AP-5131-13043-GR Symbol AP 5131
AP-5131 Access Point (Dual Radio, Power supply, Antenna and TAA)
Check
Availability
AP-5131-40023-GR Symbol AP 5131
Wireless Access Point, TAA sales only, 802.11A/B/G single radio. Includes 2 dual band dipole antennas and PoE power supply. (Requires line cord)
Check
Availability
AP-5131-13040-D-WR This part is replaced by AP-6532-66040-WR.
Symbol AP 5131
AP-5131 Access Point, Dependent, 802.11A/B/G Dual Radio. (Switch required for use)
See
Replacement
AP-5131-40020-D-WR This part is replaced by AP-6521-60020-WR.
Symbol AP 5131
AP-5131 Access Point 802.11A/B/G Dependent, Single Radio. (Switch required for use)
See
Replacement

Access Point Expertise

Wireless 802.11b/a/g (wifi) access points, including Power-over-ethernet (PoE) models.
