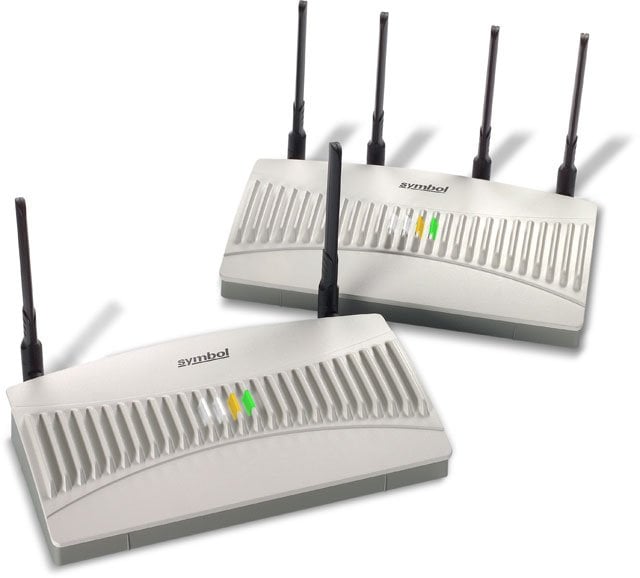

Symbol AP-5131-40023-WWR Access Point

Motorola AP-6521-60010-US Access Point A newer version of this item is available.
It is replaced by the Motorola AP-6521-60010-US Access Point.
Symbol AP 5131 - Single Radio Kit includes 802.3af PoE Power Supply (Part# AP-PSBIAS-T-1P-AF) and 2 dual-band antennas (Part# ML-2452-APA2-01). RoHS Compliant.
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11a/b/g technology and speeds up to 54 Mbit/s
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Read More
Discontinued See Replacement
Add to Quote
Symbol AP 5131 Access Point Model Overview
Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP 5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP 5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP 5131 integrates a Router and DHCP Server for local LAN connectivity; a configurable stateful inspection firewall for LAN isolation; a VPN endpoint for secure backhaul connectivity; and a QoS Engine for superior performance of real-time video and voice applications. The AP 5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP 5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.
Symbol AP-5131-40023-WWR Access Point Overview

The AP-5131 delivers convenient, flexible, scalable and cost-effective enterprise-level wired and wireless networking for a variety of business applications. Remote employees in branch offices, small businesses, and telecommuters working from home enjoy secure connectivity to the Internet, corporate private networks and more from desktops, laptops and other mobile devices. Enterprise users can take advantage of the AP-5131 Access Point's mesh features to extend corporate networks to difficult-to-cable areas - both indoors and outdoors.

Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
2
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • 802.11i
  • WPA2
  • WPA
  • Triple-DES IPSec encryption
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
2
Management & Protocols
Management:
  • DHCP Server
  • Java web-based graphical user interface
  • Symbol Mobility Services Platform (MSP)
  • SNMPv3
  • Command line interface (CLI)
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.8"
Depth:
5.3"
Weight (Approximate):
1.95 lb
Miscellaneous
Additional Information:
  • Operating Voltage: 48V DC
  • Integrated Power OverEthernet Support: 802.3af on LAN Port
  • Quality of Service (QoS)
  • Voice prioritization
Certifications & Standards:
  • UL / cUL 60950-1
  • IEC / EN60950-1
  • UL2043
  • TUV GS
  • RoHS
  • FCC (USA)
  • Industry Canada
  • CE (Europe)
  • TELEC (Japan)
  • WPA2
  • WMM
  • IEEE 802.3af
  • IEEE 802.11i
  • IEEE 802.1x
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
Item Numbers
GTIN: 0640746705168
UPC: 640746705168
EAN: 0640746705168
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol AP-5131-40023-WWR Access Point is also known as SYM-AP513140023WWR or AP-5131-40023-WWR.
