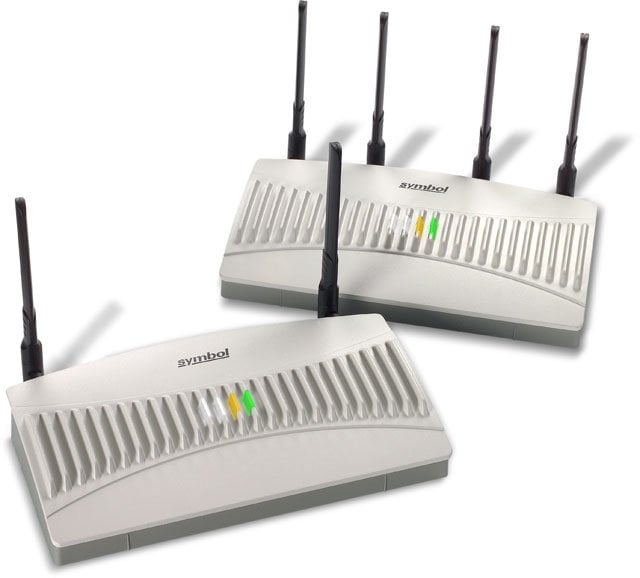

Motorola AP-5131-40020-WW Access Point


(No reviews)

Be the first to

Write a Review
Symbol AP5131 - Single Radio Only. If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. See accessories.

Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP 5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP 5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP 5131 integrates a Router and DHCP Server for local LAN connectivity, a configurable stateful inspection firewall for LAN isolation, a VPN endpoint for secure backhaul connectivity, and a QoS Engine for superior performance of real-time video and voice applications. The AP 5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP 5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.

Technical Information

  • Wireless Technology: IEEE 802.11a/b/g
  • Frequency Band/Bandwidth:
    • 2.4GHz
    • 5GHz
  • Frequency Band/Bandwidth Details:
    • 2.412 to 2.472GHz IEEE 802.11b/g ISM Band
    • 4.92 to 5.835GHz IEEE 802.11a
  • Transmission Speed:
    • 54MbpsAuto-fallback IEEE 802.11a/g
    • 6Mbps IEEE 802.11a/g
    • 11MbpsAuto-fallback IEEE 802.11b
    • 1Mbps IEEE 802.11b
  • Channels:
    • 1 to 35 Channel(s)Operating IEEE 802.11a
    • 1 to 13 Channel(s)Operating IEEE 802.11b/g
  • Transmit Power: 4dBm to 20dBm
  • Receiver Sensitivity:
    • -73 dBm @ 54Mbps 10% PER IEEE 802.11a
    • -91 dBm @ 6Mbps 10% PER IEEE 802.11a
    • -84 dBm @ 11Mbps 10% PER IEEE 802.11b
    • -94 dBm @ 1Mbps 10% PER IEEE 802.11b
  • Wireless Security: WPA WPA2
  • Modulation:
    • DSSS
    • OFDM

General Information

  • Manufacturer: Symbol
  • Product Name: AP-5131 Wireless Access Point

Physical Characteristics

  • Dimensions: 1.77" (45mm) x 9.45" (240mm) x 5.32" (135mm)
  • Weight: 1.95 lb (0.88 kg)

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Operating Non-condensing


  • Additional Information: Single Radio (Dual Band - a or b/g) Software selectable Ethernet connectivity: 1 x RJ-45 10/100 Base-T Operating Bands: IEEE 802.11b: 2.412 to 2.462 GHz IEEE 802.11a/g 5.150 to 5.250 (UNII -1) IEEE 802.11a/g 5.250 to 5.350 (UNII -2) IEEE 802.11a/g 5.725 to 5.825 (UNII -3)

Agency Approvals

  • Agency Approvals: FCC Wi-Fi 802.3af WPA2 WMM IEEE 802.11a IEEE 802.11b IEEE 802.11g UL2043 UL cUL 60950-1 IEC / EN60950-1 TUV GS


  • Manufacturer Warranty: 1 Year(s)

Full specifications (PDF)
