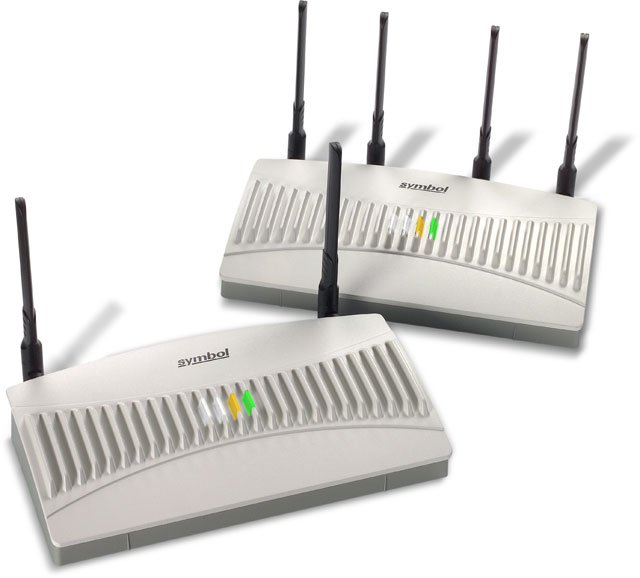

Symbol AP-5131-13040-WW Wireless Access Points

Part Number: AP-5131-13040-WW
Model: AP 5131

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11a/b/g
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  Dual Radio: Radio Only If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. Antennas not included. See accessories.

Symbol AP 5131 Wireless Access Points Model Overview

Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP 5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP 5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP 5131 integrates a Router and DHCP Server for local LAN connectivity; a configurable stateful inspection firewall for LAN isolation; a VPN endpoint for secure backhaul connectivity; and a QoS Engine for superior performance of real-time video and voice applications. The AP 5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP 5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.
Symbol AP-5131-13040-WW Wireless Access Points Overview

Designed for small offices and retail locations, the AP-5131 Dual Radio 802.11a/b/g Wireless Access Point delivers wired and wireless networking with enterprise class performance and security in a single device. This easy-to-deploy solution offers the flexibility to connect securely to remote corporate private networks, the Internet and local network resources with the speed and reliability to support the most demanding applications, including real-time video and voice. The all-in-one AP-5131 delivers a new level of cost-efficiency and networking simplicity for employees in branch offices or telecommuters working at home.

Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.73 GHz
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • IEEE 802.11i
  • WPA
  • WPA2
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
2
Management & Protocols
Management:
  • Java web-based graphical user interface
  • Symbol Mobility Services Platform (MSP)
  • SNMP 2
  • SNMP 1
  • SNMP 3
  • Command line interface (CLI)
  • DHCP server
Physical Characteristics
Height:
1.8"
Depth:
5.3"
Weight (Approximate):
1.95 lb
Miscellaneous
Additional Information:

Wireless Medium:

  • Direct Sequence Spread Spectrum (DSSS)
  • Orthogonal Frequency Division Multiplexing (OFDM)

Uplink:

  • 2 ports (WAN, LAN) Auto-sensing 10/100Base-T Ethernet
Item Numbers
UNSPSC: 43222631
