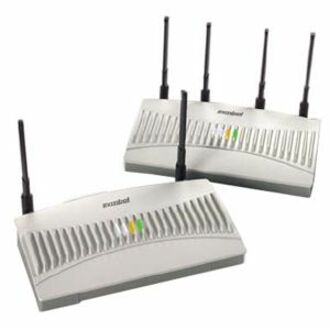

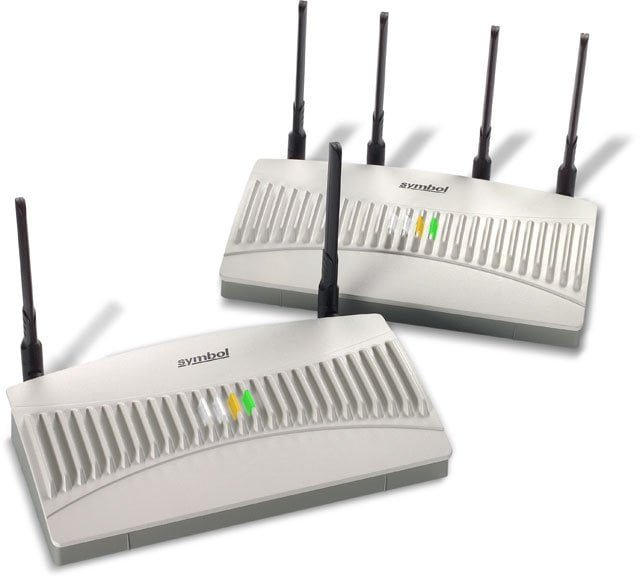

Symbol AP-5131-13043-WWR Access Point

Motorola AP-6532-66030-WR Access Point A newer version of this item is available.
It is replaced by the Motorola AP-6532-66030-WR Access Point.
Symbol AP 5131 - Dual Radio Kit includes 802.3af PoE Power Supply (Part# AP-PSBIAS-T-1P-AF) and 4 Dual-band Antennas (Part# ML-2452-APA2-01). RoHS Compliant. Requires AC Line cord, if using in the USA order (Part# 23844-00-00R).
  • Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
  • Ensure speedy data transfer of up to 54 Mbit/s with the IEEE 802.11a/b/g wireless technology
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Symbol AP 5131 Access Point Model Overview
Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP 5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP 5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP 5131 integrates a Router and DHCP Server for local LAN connectivity; a configurable stateful inspection firewall for LAN isolation; a VPN endpoint for secure backhaul connectivity; and a QoS Engine for superior performance of real-time video and voice applications. The AP 5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP 5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.
Symbol AP-5131-13043-WWR Access Point Overview

The AP-5131 delivers convenient, flexible, scalable and cost-effective enterprise-level wired and wireless networking for a variety of business applications. Remote employees in branch offices, small businesses, and telecommuters working from home enjoy secure connectivity to the Internet, corporate private networks and more from desktops, laptops and other mobile devices. Enterprise users can take advantage of the AP-5131 Access Point's mesh features to extend corporate networks to difficult-to-cable areas - both indoors and outdoors.

Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.73 GHz
Total Number of Antennas:
4
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • 802.11i
  • WPA2
  • WPA
  • Triple-DES IPSec encryption
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
  • DHCP Server
  • Java web-based graphical user interface
  • Symbol Mobility Services Platform (MSP)
  • SNMPv3
  • Command line interface (CLI)
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.8"
Depth:
5.3"
Weight (Approximate):
1.95 lb
Miscellaneous
Additional Information:

Wireless Medium:

  • Direct Sequence Spread Spectrum (DSSS)
  • Orthogonal Frequency Division Multiplexing (OFDM)

Uplink:

  • 2 ports (WAN, LAN) Auto-sensing 10/100Base-T Ethernet
Item Numbers
GTIN: 5052461126022
EAN: 5052461126022
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol AP-5131-13043-WWR Access Point is also known as SYM-AP513113043WWR or AP-5131-13043-WWR.
