Motorola AP-6532-66030-US Access Point

Motorola AP-7522-67030-US Access Point A newer version of this item is available.
It is replaced by the Motorola AP-7522-67030-US Access Point.
Motorola AP 6532 - Ap6532 11n Dual Radio Internal Ant Indep
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • Ensure speedy data transfer of up to 300 Mbit/s with the IEEE 802.11n wireless technology
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
  • Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

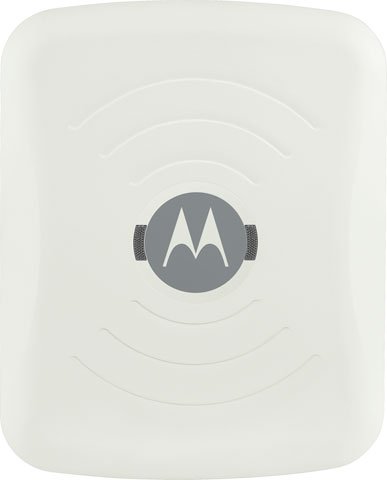

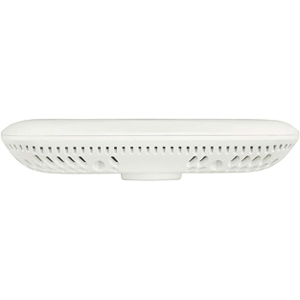

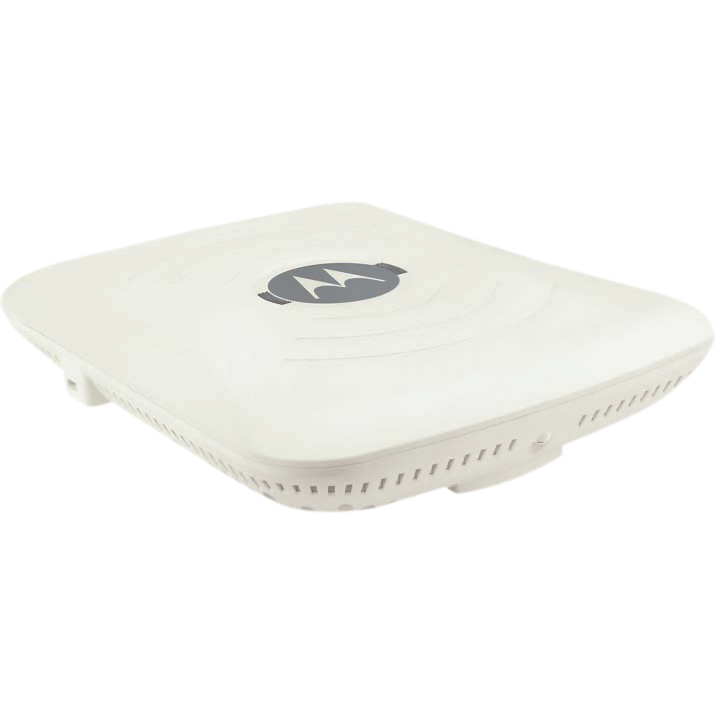

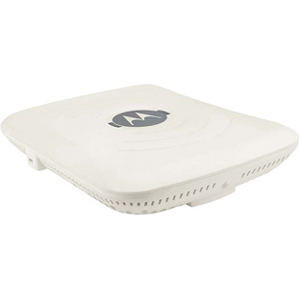

Motorola AP 6532 Access Point Model Overview
The performance-focused dual radio 802.11n Motorola AP 6532 access point provides customers with higher throughput and dual-radio performance while benefiting from WiNG 5 intelligence at the edge. This versatile AP leverages Motorola's hallmark 802.11n band-unlocked radios, allowing IT to use the second radio to provide WiFi access or serve as a dedicated wireless sensor that scans both 2.4 and 5 GHz bands for network assurance and security. The AP 6532 access point will also continue to run if its connection to a local or remote controller is interrupted. The AP 6532 can serve as a virtual controller and coordinate the operation of up to 24 neighboring access points for mobility and QOS services.
Motorola AP-6532-66030-US Access Point Overview

The AP 6532 is a performance-focused 802.11n access point that offers higher throughput along with WiNG 5's direct forwarding, security, QoS services and site survivability. The second radio can be used for access or as a sensor for troubleshooting and security. With it's WiNG 5 intelligence, this access point can serve as a virtual controller and coordinate the operation of up to 24 neighboring access points.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
3
Antenna Gain:
  • 2 dBi
  • 4.8 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • AAA
  • RADIUS
  • Location-based access control
  • VPN
  • Stateful packet filtering firewall
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:

VLAN

Power Description
Input Voltage:
57 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.7"
Width:
7.5"
Depth:
9.5"
Weight (Approximate):
2 lb
Miscellaneous
Certifications & Standards:
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.1Q
  • IEEE 802.1p
  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
  • UL 2043
  • FCC
  • IC
  • CE
  • TELEC
Item Numbers
GTIN: 0132017659237, 0799471567364
UPC: 132017659237, 799471567364
EAN: 0132017659237, 0799471567364
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-6532-66030-US Access Point is also known as MOT-AP653266030US or AP-6532-66030-US.
