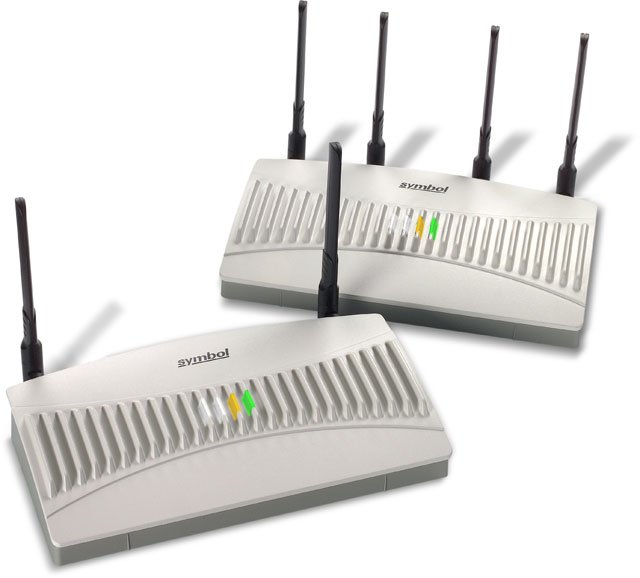

Symbol AP-5131-40020-D-WR Access Point

Motorola AP-6521-60020-WR Access Point A newer version of this item is available.
It is replaced by the Motorola AP-6521-60020-WR Access Point.
Symbol AP 5131 - AP-5131 Access Point 802.11A/B/G Dependent, Single Radio. (Switch required for use)
  • Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
  • With IEEE 802.11a/b/g network technology and data transfer rate of up to 54 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Symbol AP 5131 Access Point Model Overview
Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP 5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP 5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP 5131 integrates a Router and DHCP Server for local LAN connectivity; a configurable stateful inspection firewall for LAN isolation; a VPN endpoint for secure backhaul connectivity; and a QoS Engine for superior performance of real-time video and voice applications. The AP 5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP 5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.
Symbol AP-5131-40020-D-WR Access Point Overview

Designed for small offices and retail locations, the AP-5131 delivers wired and wireless networking with enterprise-class performance and security in a single device. This easy-to-deploy solution offers the flexibility to connect securely to remote corporate private networks, the Internet and local network resources with the speed and reliability to support the most demanding applications, including real-time video and voice.

Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • WPA
  • WPA2
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
2
Management & Protocols
Management:
  • Java web-based graphical user interface
  • SNMPv3
  • CLI
  • QoS
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Desktop
  • Ceiling Mountable
Height:
1.8"
Depth:
5.3"
Weight (Approximate):
1.95 lb
Miscellaneous
Additional Information:

Operating Channels:

  • Channel 1-35 (4920 - 5825 MHz)
  • Channel 1-13 (2412 - 2472 MHz)
Certifications & Standards:

Wi-Fi:

  • Wi-Fi

IEEE Standards:

  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.3af

Safety:

  • UL / cUL 60950-1
  • IEC / EN60950-1
  • UL2043
  • TUV GS
  • RoHS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol AP-5131-40020-D-WR Access Point is also known as SYM-AP513140020DWR or AP-5131-40020-D-WR.
