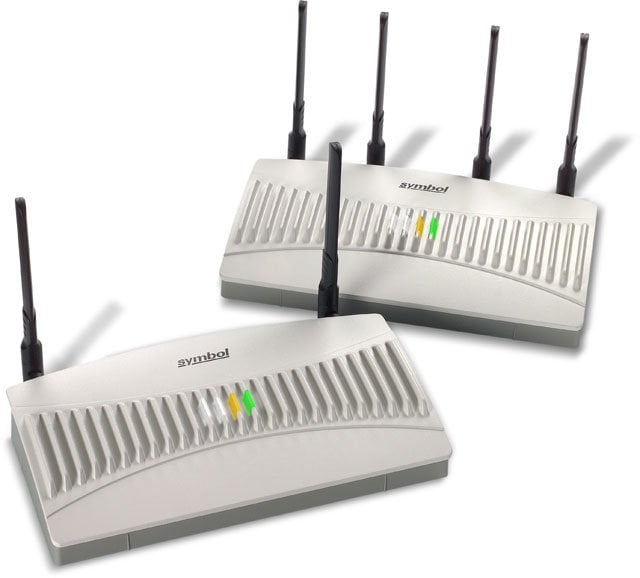

Motorola AP-5131-13040-D-WR Access Point


(No reviews)

Be the first to

Write a Review
Symbol AP5131 - AP-5131 Access Point, Dependent, 802.11A/B/G Dual Radio. (Switch required for use)

Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP 5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP 5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP 5131 integrates a Router and DHCP Server for local LAN connectivity, a configurable stateful inspection firewall for LAN isolation, a VPN endpoint for secure backhaul connectivity, and a QoS Engine for superior performance of real-time video and voice applications. The AP 5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP 5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.

Technical Information

  • Wireless LAN Standard: IEEE 802.11a/b/g
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 4
  • Wireless Transmission Speed: 54 Mbps
  • ISM Maximum Frequency: 2.46 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Wireless Security:
    • 802.11i
    • WPA2
    • WPA
    • Triple DES
    • IPSec encryption

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-5131
  • Product Name: AP-5131 Wireless Access Point
  • Packaged Quantity: 1

Physical Characteristics

  • Height: 1.8"
  • Depth: 5.3"
  • Form Factor:
    • Desktop
    • Wall Mountable
  • Weight (Approximate): 1.95 lb


  • Fast Ethernet Port: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Standards Compliance:
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • UL2043
    • TUV GS
    • RoHS
    • FCC (USA)
    • Industry Canada
    • CE (Europe)
    • TELEC (Japan)
    • WPA2
    • WMM
    • IEEE Standards:
    • IEEE 802.3af
    • IEEE 802.11i
    • IEEE 802.1x
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.3
    • Wi-Fi:
    • Wi-Fi
  • Additional Information:
    • Operating Channels:
    • Channnel 1-35 (4920 - 5825 MHz)
    • Channnel 1-13 (2412 - 2472 MHz)

Management & Protocols

  • Management:
    • Java web-based graphical user interface
    • DHCP
    • QoS
    • SNMP v3
    • Command line interface (CLI)

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Full specifications (PDF)
