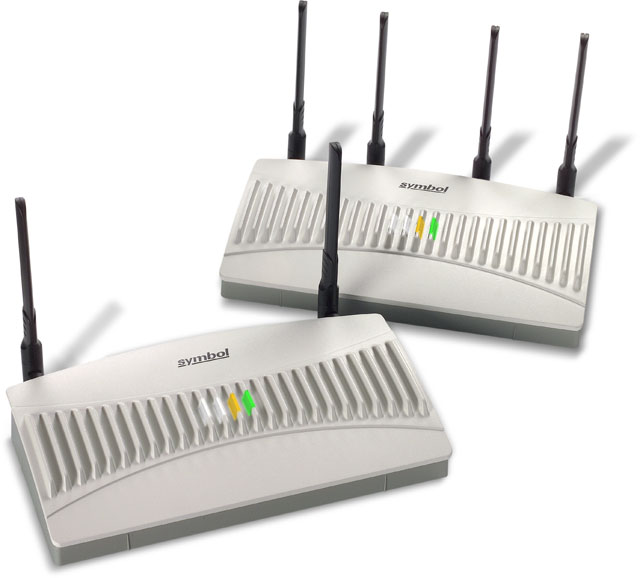

Symbol AP-5131-13042-WW Access Point

Motorola AP-6532-66030-US Access Point A newer version of this item is available.
It is replaced by the Motorola AP-6532-66030-US Access Point.
Symbol AP 5131 - Dual Radio Kit includes 4 Dual-band Antennas (Part# ML-2452-APA2-01) If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. See accessories.
  • Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
  • Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11a/b/g technology and speeds up to 54 Mbit/s
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)
You've just added this product to the cart:

Go To Cart
Add to Quote
Symbol AP 5131 Access Point Model Overview
Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP 5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP 5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP 5131 integrates a Router and DHCP Server for local LAN connectivity; a configurable stateful inspection firewall for LAN isolation; a VPN endpoint for secure backhaul connectivity; and a QoS Engine for superior performance of real-time video and voice applications. The AP 5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP 5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.
Symbol AP-5131-13042-WW Access Point Overview

Designed for small offices and retail locations, the AP-5131 Dual Radio 802.11a/b/g Wireless Access Point delivers wired and wireless networking with enterprise class performance and security in a single device. This easy-to-deploy solution offers the flexibility to connect securely to remote corporate private networks, the Internet and local network resources with the speed and reliability to support the most demanding applications, including real-time video and voice. The all-in-one AP-5131 delivers a new level of cost-efficiency and networking simplicity for employees in branch offices or telecommuters working at home.

Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
UNII Band:
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
Antenna Type:
Dual Band Antenna
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • IEEE 802.11i
  • WPA
  • WPA2
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
Management & Protocols
  • Java web-based graphical user interface
  • Symbol Mobility Services Platform (MSP)
  • SNMP 2
  • SNMP 1
  • SNMP 3
  • Command line interface (CLI)
  • DHCP server
Physical Characteristics
Weight (Approximate):
1.95 lb
Additional Information:
  • Housing: Metal, plenum-rated housing (UL2043)
  • Wi-Fi Multimedia (WMM)
  • Quality of Service (QoS)
  • Voice prioritization

Operating Channels:

  • Channel 1-35: 4.920 - 5.825 GHz
  • Channel 1-13: 2.412 - 2.472 GHz
Certifications & Standards:
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11i
  • IEEE 802.3
  • IEEE 802.3u
  • Wi-Fi
  • CE (Europe)
  • UL / cUL 60950-1
  • IEC / EN60950-1
  • UL2043
  • TUV GS
  • RoHS
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol AP-5131-13042-WW Access Point is also known as SYM-AP513113042WW or AP-5131-13042-WW.
