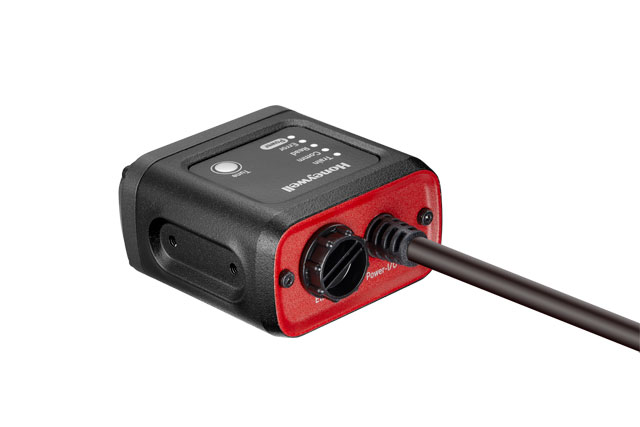

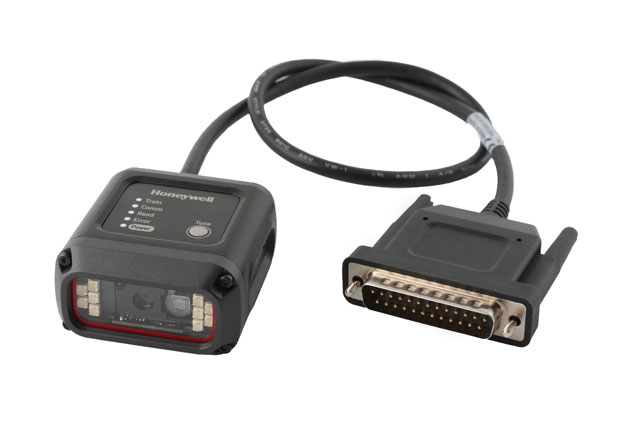

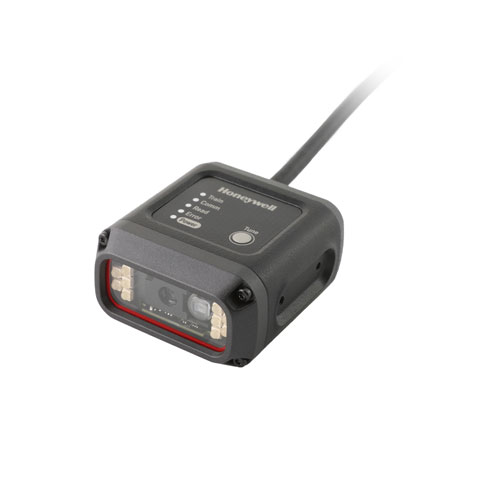

Honeywell HF800 Barcode Scanner

Honeywell HF800  -  The Honeywell HF800 is a fixed-mounting 2D industrial reader capable of reliably reading all types of 1D and 2D codes. The HF800 is the perfect solution for production data tracking for PCB and precision electronic parts, and various industrial applications where precision is vital. Equipped with an imager with a resolution of 500k pixels, the HF800 is capable of collecting images at a high quality 60 fps. A compact design and IP65 protection make the HF800 the best industrial scanner for harsh working environments with limited space.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$1,005.63
Item on backorder — chat for lead time
Honeywell HF800 Barcode Scanner
Honeywell HF800 Barcode Scanner
Honeywell HF800 Barcode Scanner
Honeywell HF800 Barcode Scanner
Honeywell HF800 Barcode Scanner Honeywell HF800 Barcode Scanner Honeywell HF800 Barcode Scanner Honeywell HF800 Barcode Scanner
Accessories For Honeywell HF800 Barcode Scanner

Category

Honeywell HF800 Barcode Scanner Options

Frequently Asked Questions

The HF800 reads all types of 1D and 2D codes, including Code 39, PDF417, QR Code, Datamatrix, Maxicode, and Aztec. It excels at reading difficult direct part mark (DPM) codes on printed labels and direct part markings, making it ideal for production data tracking in PCB and precision electronic parts manufacturing.

The HF800 features a 500K-pixel imager with 838×640 CMOS chip capable of collecting images at 60 fps. It has an IP65 protection rating for harsh environments, operates on 10VDC-30VDC power, and includes RS232, RS485, and Ethernet ports for flexible connectivity. The device weighs 210g (horizontal) or 265g (vertical) and measures 54.5×52.5×29mm or 73.2×52.5×29mm depending on orientation.

The HF800 is equipped with an AutoLearn function and DataMax software that allows users to complete image settings with just one button press. This significantly reduces configuration time and complexity, making it convenient for warehouse managers and IT procurement teams to deploy without extensive technical setup.

We offer the HF800 in two mounting orientations—0-degree (horizontal) and 90-degree (vertical)—to suit your installation needs. The scanner is also available in three versions based on working distance and field of view: HD (high definition), SR (standard range), and ER (extended range), allowing you to select the model that matches your specific application requirements.

Yes, the HF800 is designed for harsh and complex working environments. Its compact size makes it ideal for tight industrial spaces with limited room, and its IP65 protection rating ensures it can handle various harsh conditions including moisture, dust, and temperature fluctuations from 0°C to 50°C during operation.

The HF800 integrates network ports, RS232, RS485, and I/O ports to meet diverse application needs. It supports both Master/Slave network modes and includes 2 photoelectric dispersed inputs and 2 photoelectric dispersed outputs with programmable definitions, plus status indicators with five-status LED and buzzer feedback. Contact us today to discuss your connectivity requirements.

Full specifications (PDF)

Honeywell HF800 Barcode Scanner Model Overview

The new fixed-mounting industrial reader HF800 delivers outstanding barcode reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM), making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirma-tion of logistics barcode on the external packing cartons for electric/mechanical parts.HF800 is equipped with imager with a resolution of 500K-pixel which is capable of collecting images at 60 fps. Its built-in red LED light source combined with exceptional DPM decoding algorithm enables HF800 to have powerful DPM resolution. In addition, its compact size makes it ideal for use in industrial environment with limited space. The IP65 protection rating also ensures that it can handle various harsh working environments. HF800 is also equipped with DataMax software, as well as AutoLearn function. The user can complete image setting with just one button, a significant convenience for any bar code reader.The device is integrated with network ports, RS232 port and RS485 port as well as I/O port input to meet the needs of users in different application environments. A 0-degree and 90-degree version for vertical or horizontal mounting can be selected based on the site’s actual working needs. Depending on the working distance, there are 3 different versions available– HD, SR and ER. The user can select a product that suits their needs for working distance and field of vision.

Features and Benefits

  • Powerful DPM decoding: 500K-pixel resolution imager with 60fps capability and built-in red LED light source to give it powerful decoding capability for DPM.
  • Suitable for use in harsh and complex environments: Its compact size makes it ideal in tight industrial environment, while its IP65 rating ensures that it can handle all types of harsh and complex work environments.
  • Simple and quick configuration: Equipped with DataMax software and AutoLearn functions, it allows image setting to be completed with just one button, thereby significantly increasing the convenience of configuring the reader.
  • Wide variety of ports: HF800 is integrated with network port, RS232 port and RS485 port, as well supports I/O port output.Numerous models to meet different application needs: Offers two versions – 0° and 90° – as well as 3 versions namely HD, SR and ER for different distances*; product combinations meet the needs of users for different applications.
