The new fixed-mounting industrial reader HF800 delivers outstanding barcode reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM), making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirma-tion of logistics barcode on the external packing cartons for electric/mechanical parts.HF800 is equipped with imager with a resolution of 500K-pixel which is capable of collecting images at 60 fps. Its built-in red LED light source combined with exceptional DPM decoding algorithm enables HF800 to have powerful DPM resolution. In addition, its compact size makes it ideal for use in industrial environment with limited space. The IP65 protection rating also ensures that it can handle various harsh working environments. HF800 is also equipped with DataMax software, as well as AutoLearn function. The user can complete image setting with just one button, a significant convenience for any bar code reader.The device is integrated with network ports, RS232 port and RS485 port as well as I/O port input to meet the needs of users in different application environments. A 0-degree and 90-degree version for vertical or horizontal mounting can be selected based on the site’s actual working needs. Depending on the working distance, there are 3 different versions available– HD, SR and ER. The user can select a product that suits their needs for working distance and field of vision.
Features and Benefits
Powerful DPM decoding: 500K-pixel resolution imager with 60fps capability and built-in red LED light source to give it powerful decoding capability for DPM.
Suitable for use in harsh and complex environments: Its compact size makes it ideal in tight industrial environment, while its IP65 rating ensures that it can handle all types of harsh and complex work environments.
Simple and quick configuration: Equipped with DataMax software and AutoLearn functions, it allows image setting to be completed with just one button, thereby significantly increasing the convenience of configuring the reader.
Wide variety of ports: HF800 is integrated with network port, RS232 port and RS485 port, as well supports I/O port output.Numerous models to meet different application needs: Offers two versions – 0° and 90° – as well as 3 versions namely HD, SR and ER for different distances*; product combinations meet the needs of users for different applications.

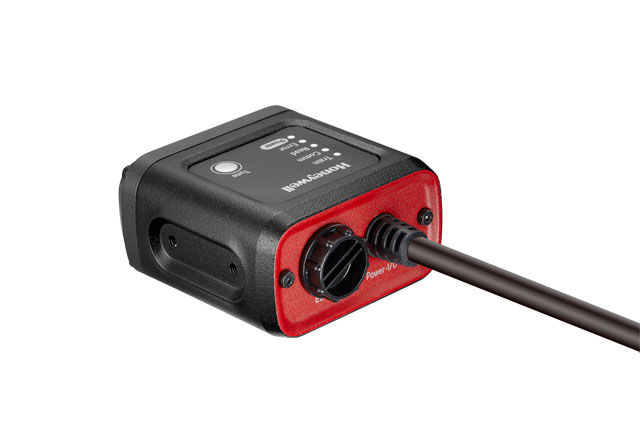

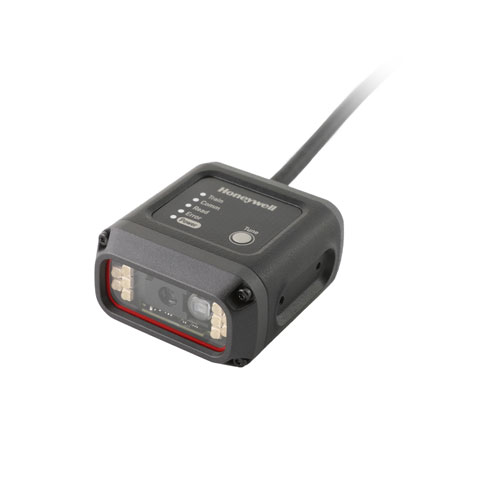

Honeywell HF800ER-R1-1H Barcode Scanner Overview
The new fixed-mounting industrial reader HF800 delivers outstanding barcode reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM), making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirmation of logistics barcode on the external packing cartons for electric/mechanical parts.
HF800 is equipped with imager with a resolution of 500K-pixel which is capable of collecting images at 60 fps. Its built-in red LED light source combined with exceptional DPM decoding algorithm enables HF800 to have powerful DPM resolution. In addition, its compact size makes it ideal for use in industrial environment with limited space. The IP65 protection rating also ensures that it can handle various harsh working environments.
HF800 is also equipped with DataMax software, as well as AutoLearn function. The user can complete image setting with just one button, a significant convenience for any bar code reader.
What barcode types can the Honeywell HF800ER read?
The Honeywell HF800ER reads all 1D barcodes including Code 39 and UPC, as well as 2D codes such as QR Code, Datamatrix, Maxicode, PDF417, and Aztec. Its 500k pixel imager with 838×640 CMOS chip and global shutter technology enables reliable decoding across all standard industrial barcode formats.
What is the read range and focus capability of the HF800ER?
The HF800ER features extended range (ER) focus capability, allowing it to read codes at varying distances depending on barcode size and resolution. For example, it can read 13 mil UPC codes from 25-150mm at 90 degrees and 40-175mm at 0 degrees, making it ideal for applications requiring flexible working distances in production environments.
Is the HF800ER suitable for harsh industrial environments?
Yes, the HF800ER is engineered for harsh working conditions with an IP65 protection rating, zinc alloy housing, and compact design that fits limited spaces. It operates reliably across temperatures from 0°C to 50°C and includes both laser and LED aiming indicators depending on mounting orientation.
What connectivity and integration options does the HF800ER offer?
The HF800ER provides multiple communication ports including RS232, RS485, and Ethernet, with network master/slave capabilities for seamless integration into manufacturing and warehouse management systems. It also features 2 programmable photoelectric dispersed inputs and outputs, plus a learning button for quick configuration without additional tools.
What are the power requirements for the HF800ER?
The HF800ER operates on standard 10VDC-30VDC power with a maximum consumption of 5W, making it efficient for continuous production line operation. This wide voltage range accommodates various industrial power supply configurations commonly found in manufacturing facilities.
How fast can the HF800ER capture and process barcode images?
The HF800ER captures images at 60 frames per second (fps) using its high-resolution 500k pixel imager, enabling rapid scanning of fast-moving items on production lines and conveyor systems. This imaging speed combined with its dedicated decoding performance makes it ideal for high-throughput PCB and precision electronic parts tracking applications.
The Honeywell HF800ER-R1-1H Barcode Scanner is also known as
HSM-HF800ERR11H
or HF800ERR11H.
Full specifications (PDF)
