The new fixed-mounting industrial reader HF800 delivers outstanding barcode reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM), making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirma-tion of logistics barcode on the external packing cartons for electric/mechanical parts.HF800 is equipped with imager with a resolution of 500K-pixel which is capable of collecting images at 60 fps. Its built-in red LED light source combined with exceptional DPM decoding algorithm enables HF800 to have powerful DPM resolution. In addition, its compact size makes it ideal for use in industrial environment with limited space. The IP65 protection rating also ensures that it can handle various harsh working environments. HF800 is also equipped with DataMax software, as well as AutoLearn function. The user can complete image setting with just one button, a significant convenience for any bar code reader.The device is integrated with network ports, RS232 port and RS485 port as well as I/O port input to meet the needs of users in different application environments. A 0-degree and 90-degree version for vertical or horizontal mounting can be selected based on the site’s actual working needs. Depending on the working distance, there are 3 different versions available– HD, SR and ER. The user can select a product that suits their needs for working distance and field of vision.
Features and Benefits
Powerful DPM decoding: 500K-pixel resolution imager with 60fps capability and built-in red LED light source to give it powerful decoding capability for DPM.
Suitable for use in harsh and complex environments: Its compact size makes it ideal in tight industrial environment, while its IP65 rating ensures that it can handle all types of harsh and complex work environments.
Simple and quick configuration: Equipped with DataMax software and AutoLearn functions, it allows image setting to be completed with just one button, thereby significantly increasing the convenience of configuring the reader.

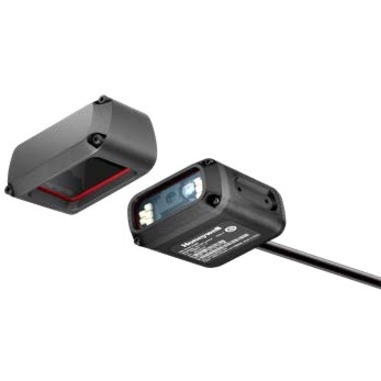

Wide variety of ports: HF800 is integrated with network port, RS232 port and RS485 port, as well supports I/O port output.Numerous models to meet different application needs: Offers two versions – 0° and 90° – as well as 3 versions namely HD, SR and ER for different distances*; product combinations meet the needs of users for different applications.

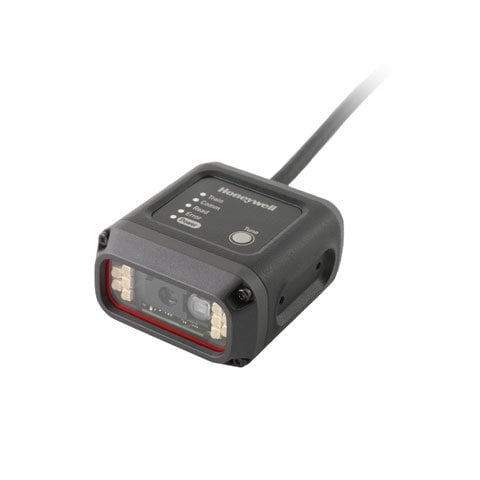

Honeywell HF800HD-R1-1H Barcode Scanner Overview
The new fixed-mounting industrial reader HF800 delivers outstanding barcode reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM), making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirmation of logistics barcode on the external packing cartons for electric/mechanical parts.
HF800 is equipped with imager with a resolution of 500K-pixel which is capable of collecting images at 60 fps. Its built-in red LED light source combined with exceptional DPM decoding algorithm enables HF800 to have powerful DPM resolution. In addition, its compact size makes it ideal for use in industrial environment with limited space. The IP65 protection rating also ensures that it can handle various harsh working environments.
HF800 is also equipped with DataMax software, as well as AutoLearn function. The user can complete image setting with just one button, a significant convenience for any bar code reader.
What barcode types can the Honeywell HF800HD read?
The Honeywell HF800HD reads all 1D barcodes including Code 39 and UPC, as well as 2D codes such as QR Code, Datamatrix, Maxicode, and Aztec. It also supports PDF417 codes, making it versatile for production data tracking across multiple barcode formats. We offer this scanner for applications requiring broad symbology support in industrial environments.
What is the reading distance range for the HF800HD?
The HF800HD offers variable reading distances depending on barcode size and orientation. For example, it reads 5mil Code 39 from 30-115mm at 0 degrees and 25-90mm at 90 degrees, while 13mil UPC codes can be read from 40-175mm at 0 degrees. These performance specs make it ideal for precision electronic parts and PCB production tracking where exact positioning matters.
Is the HF800HD suitable for harsh warehouse or manufacturing environments?
Yes, the HF800HD is specifically designed for harsh industrial environments with an IP65 protection rating, which protects against dust and water spray. Its compact design (54.5×52.5×29mm) and zinc alloy housing allow installation in tight spaces while maintaining durability. The scanner operates reliably across temperatures from 0°C to 50°C, making it suitable for most warehouse and manufacturing conditions.
What mounting options and connectivity does the HF800HD provide?

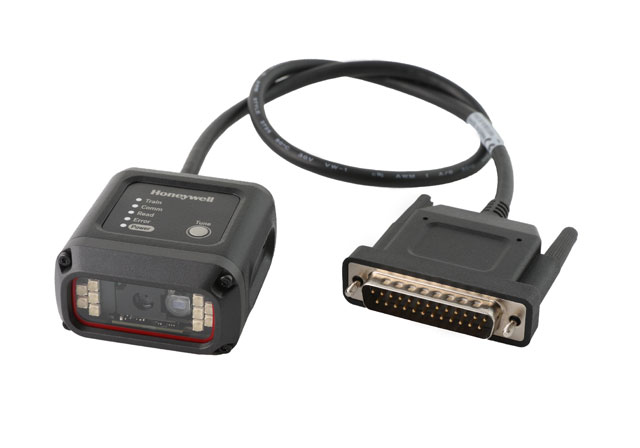

The HF800HD includes a horizontal mount and offers multiple connectivity options including RS232, RS485, and Ethernet ports for flexible integration into existing systems. It features programmable dispersed inputs and outputs for triggering external devices, plus network capability in Master/Slave mode for multi-scanner deployments. Contact us today to discuss integration with your specific warehouse management or production system.
How fast can the HF800HD capture and process barcode images?
The HF800HD captures images at 60 frames per second using an 838×640 CMOS imager with global shutter technology, delivering high-quality 500k pixel imaging for reliable code reading. This imaging speed enables rapid scanning in high-volume production environments without missing codes. Visit barcodesinc.com to learn how this performance level compares to your current scanning workflow.
What power requirements does the HF800HD have?
The HF800HD operates on standard 10VDC-30VDC power with maximum consumption of 5W, making it energy-efficient for continuous industrial operation. This wide voltage range accommodates various power supply configurations common in manufacturing and warehouse settings. We offer complete integration support to ensure proper power delivery for your installation—contact us today for technical guidance.
The Honeywell HF800HD-R1-1H Barcode Scanner is also known as
HSM-HF800HDR11H
or HF800HDR11H.
