The new fixed-mounting industrial reader HF800 delivers outstanding barcode reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM), making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirma-tion of logistics barcode on the external packing cartons for electric/mechanical parts.HF800 is equipped with imager with a resolution of 500K-pixel which is capable of collecting images at 60 fps. Its built-in red LED light source combined with exceptional DPM decoding algorithm enables HF800 to have powerful DPM resolution. In addition, its compact size makes it ideal for use in industrial environment with limited space. The IP65 protection rating also ensures that it can handle various harsh working environments. HF800 is also equipped with DataMax software, as well as AutoLearn function. The user can complete image setting with just one button, a significant convenience for any bar code reader.The device is integrated with network ports, RS232 port and RS485 port as well as I/O port input to meet the needs of users in different application environments. A 0-degree and 90-degree version for vertical or horizontal mounting can be selected based on the site’s actual working needs. Depending on the working distance, there are 3 different versions available– HD, SR and ER. The user can select a product that suits their needs for working distance and field of vision.
Features and Benefits
Powerful DPM decoding: 500K-pixel resolution imager with 60fps capability and built-in red LED light source to give it powerful decoding capability for DPM.
Suitable for use in harsh and complex environments: Its compact size makes it ideal in tight industrial environment, while its IP65 rating ensures that it can handle all types of harsh and complex work environments.
Simple and quick configuration: Equipped with DataMax software and AutoLearn functions, it allows image setting to be completed with just one button, thereby significantly increasing the convenience of configuring the reader.

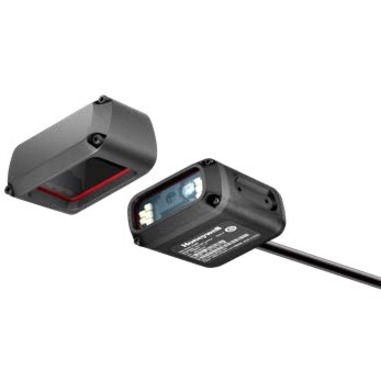

Wide variety of ports: HF800 is integrated with network port, RS232 port and RS485 port, as well supports I/O port output.Numerous models to meet different application needs: Offers two versions – 0° and 90° – as well as 3 versions namely HD, SR and ER for different distances*; product combinations meet the needs of users for different applications.
Honeywell HF800SR-R1-1H Barcode Scanner Overview
The new fixed-mounting industrial reader HF800 delivers outstanding barcode reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM), making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirmation of logistics barcode on the external packing cartons for electric/mechanical parts.
HF800 is equipped with imager with a resolution of 500K-pixel which is capable of collecting images at 60 fps. Its built-in red LED light source combined with exceptional DPM decoding algorithm enables HF800 to have powerful DPM resolution. In addition, its compact size makes it ideal for use in industrial environment with limited space. The IP65 protection rating also ensures that it can handle various harsh working environments.
HF800 is also equipped with DataMax software, as well as AutoLearn function. The user can complete image setting with just one button, a significant convenience for any bar code reader.
What barcode types can the Honeywell HF800SR read?
The HF800SR reads all standard 1D barcodes including Code 39 and UPC, as well as 2D codes such as QR Code, Datamatrix, Maxicode, and Aztec. It also supports PDF417 format, making it versatile for production data tracking and industrial applications where multiple barcode symbologies are used.
Is the Honeywell HF800SR suitable for harsh industrial environments?
Yes, the HF800SR is designed for harsh working environments with an IP65 protection rating, which provides protection against dust and water spray. Its compact design and durable zinc alloy housing make it ideal for limited-space industrial settings where reliability and durability are critical.
What are the imaging specifications of the HF800SR?
The HF800SR features an 838×640 CMOS imager with global shutter technology capable of capturing images at 60 frames per second. This high-speed imaging capability combined with 500k pixel resolution enables reliable reading of precision codes used in PCB and electronic parts manufacturing.
How does the HF800SR connect to warehouse management systems?

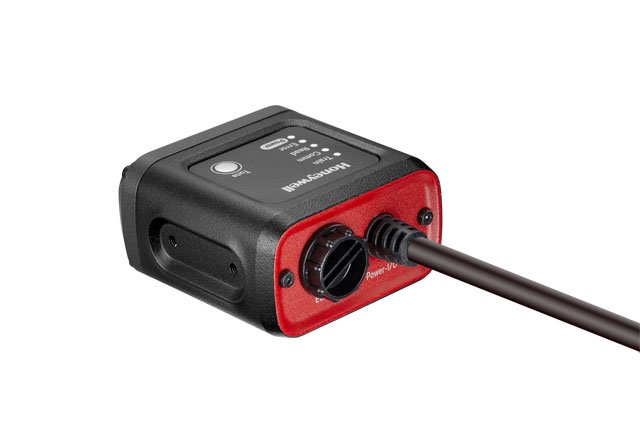

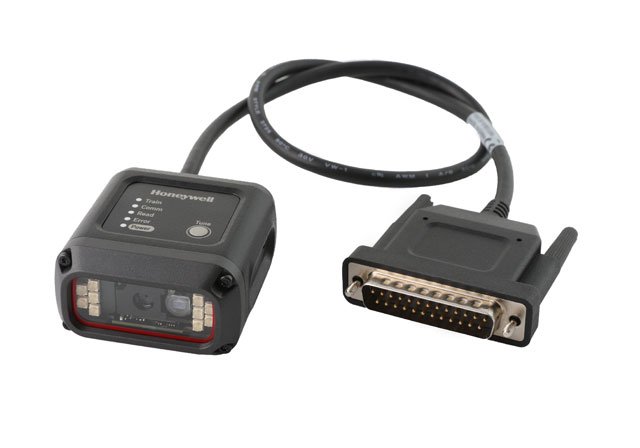

The HF800SR offers multiple connectivity options including RS232, RS485, and Ethernet ports, allowing seamless integration with warehouse management and manufacturing systems. It supports both Master/Slave network modes for flexible deployment across production and logistics operations.
What is the working distance range for the HF800SR model?
The HF800SR (Standard Range) model offers working distances of 50-80mm for 4mil Code 39 at 0 degrees and 25-55mm at 90 degrees. For 13mil UPC codes, the range extends to 40-175mm at 0 degrees and 25-150mm at 90 degrees, depending on barcode size and orientation.
What power requirements and operating conditions does the HF800SR need?
The HF800SR requires standard 10VDC-30VDC power input with maximum consumption of 5W, and operates reliably in temperatures from 0°C to 50°C. It can be stored in temperatures ranging from -20°C to 70°C, making it suitable for both climate-controlled warehouses and variable industrial environments.
The Honeywell HF800SR-R1-1H Barcode Scanner is also known as
HSM-HF800SRR11H
or HF800SRR11H.
Full specifications (PDF)
