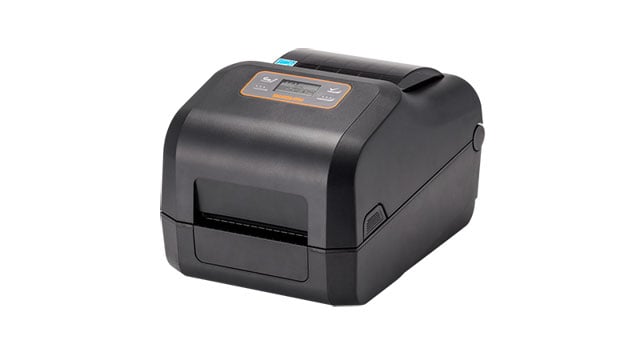

Bixolon XD5-40 Barcode Label Printer

Bixolon XD5-40  -  The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS??, BPL-Z?? and BPL-E??, while supporting Smart Switch Programming Language. The XD5 series supports UHF RFID encode and print capability, easy installation and maintenance with exceptional print quality at 300 dpi. The XD5 series can connect to a wired or wireless network - 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto cutter and platen rollers with tool-less removable design minimize operation and maintenance costs.?The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, plus the development of your own applications via a suite of SDKs, and is backed by class-leading reliability.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$243.21
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

Bixolon XD5-40 Barcode Label Printer
Bixolon XD5-40 Barcode Label Printer
Bixolon XD5-40 Barcode Label Printer Bixolon XD5-40 Barcode Label Printer

Label Core Size

Max Print Width

Printer Type

Print Resolution

Category

Bixolon XD5-40 Barcode Label Printer Options

Page
Full specifications (PDF)

Bixolon XD5-40 Barcode Label Printer Model Overview

The XD5-40 Series 4-inch Desktop Label Printer delivers robust and reliable performance tailored for various industries including manufacturing, logistics, retail, and healthcare. With advanced direct thermal and thermal transfer printing options, it achieves fast processing speeds of up to 7 inches per second. Coupled with high-resolution capabilities, seamless wireless connectivity, and extensive memory, this printer is designed for growing business needs. User-friendly features such as an adjustable media guide, easy paper loading, and optional LCD display make it perfect for efficient operation and management.


Key Features

  • Print Methods: Direct Thermal (XD5-40d) & Thermal Transfer (XD5-40t)
  • Print Speeds: Up to 7 ips (XD5-40d) and 6 ips (XD5-40t)
  • High Resolution: Optional 300 dpi for fine print quality
  • Wireless Connectivity: Dual-band WLAN and Bluetooth V5.0
  • Usability Features: Compact design, adjustable media guide, and optional auto cutter
  • Label Design Software Compatibility: BIXOLON's Label Artist™ and Seagull's BarTender®

Specifications

  • Print Methods:
    • XD5-40d: Direct Thermal
    • XD5-40t: Thermal Transfer or Direct Thermal
  • Print Speeds:
    • XD5-40d: Up to 7 ips (178 mm/sec)
    • XD5-40t: Up to 6 ips (152 mm/sec)
  • Print Resolution:
    • XD5-40d, XD5-40t: 203 dpi
  • Dimensions:
    • XD5-40d: 194 x 248 x 169 mm
    • XD5-40t: 210 x 284 x 188 mm
  • Weight:
    • XD5-40d: 1.89 kg (4.17 lbs.)
    • XD5-40t: 2.48 kg (5.46 lbs.)
  • Connectivity:
    • USB + USB Host (standard)
    • Optional interfaces available: Serial, Ethernet, WLAN, Bluetooth
