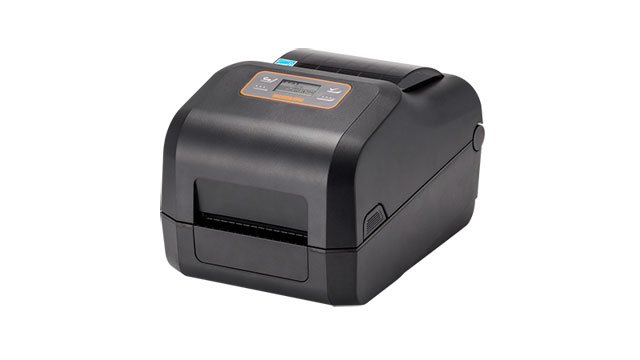

Bixolon XD5-43DK Barcode Label Printer

Bixolon XD5-40d - Barcode Label Printers, Bixolon XD5-43, Black, Built In USB, USB Host, 5 ips Printing Speed, Direct Thermal, 300 dpi, Power Supply/US Power Cord, Warranty: Limited 2 Years, TPH 1 Year

Supporting Direct Thermal(XD5-40d) and Thermal Transfer(XD5-40t) label printing
Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
Optional 300 dpi high resolution choice for fine print quality
Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.0 (MFi certified)
Extended memory space up to 256MB SDRAM, 256MB Flash
A suite of SDKs for major operating systems
An adjustable media guide and a holder
Compact clamshell design with intuitive menubuttons and optional LCD Display (LCD display as standard on XD5-40tR)
Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
Field-installable Peeler and Auto Cutter

Need a different version? See all Bixolon XD5-40 Barcode Label Printers

$340.97

Recommended TrueSupport Coverage (/mo.)

Add to Quote

Overview

Full specifications (PDF)

Bixolon XD5-40 Barcode Label Printer Model Overview

The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS??, BPL-Z?? and BPL-E??, while supporting Smart Switch Programming Language. The XD5 series supports UHF RFID encode and print capability, easy installation and maintenance with exceptional print quality at 300 dpi. The XD5 series can connect to a wired or wireless network - 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto cutter and platen rollers with tool-less removable design minimize operation and maintenance costs.?The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, plus the development of your own applications via a suite of SDKs, and is backed by class-leading reliability.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

5 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Length:

39.37"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
Code 128
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Plessey
POSTNET
GS1 DataBar
Standard 2 of 5
UPC/EAN
UPC-A
UPC-E
IMB
Aztec Code
Codablock
Code 49
Data Matrix
Maxi Code
Micro PDF-417
PDF417
QR Code
TLC 39

Application/Usage:

Desktop

Features:

Compact
LCD Display

Connectivity Technology:

Wired

Optional Connectivity:

Wireless LAN
Ethernet
Serial (RS-232)
Bluetooth

Fonts Included:

10 SLCS
One SLCS
16 BPL-Z
One BPL-Z
5 BPL-E
23 Code Page
Unicode supported
UTF-8
UTF-16LE
UTF-16BE

Memory

Standard Memory:

64 MB

Interfaces/Ports

USB Host:

Yes

USB:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Label
Gap
Black Mark
Notch
Fanfold
Continuous Label

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

7.87 mil

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Fonts & Emulation

Language Emulation:

SLCS
BPL-Z
BPL-D
BPL-E

Power Description

Power Source:

Power Adapter
AC Supply

Input Voltage:

120 V AC
230 V AC

Environmental Conditions

Operating Relative Humidity:

10% - 80%

Storage Temperature:

-4°F (-20°C) - 140°F (60°C)

Storage Relative Humidity:

10% - 90%

Physical Characteristics

Product Color:

Black

Miscellaneous

Power Cable Localization:

Platform Supported:

PC
Android
iOS
Mac

Energy Star:

Yes

Item Numbers

UNSPSC: 45101512
