Bixolon XD5-40TEK Barcode Label Printer

Bixolon XD5-40t - Barcode Label Printers, Bixolon XD5-40, Black, Built In USB, USB Host, Ethernet, Serial, 6 ips Print Speed, Thermal Trans, 203 dpi, 15-118mm Label Media Width, Up To 127 mm Roll DIA
  • Supporting Direct Thermal(XD5-40d) and Thermal Transfer(XD5-40t) label printing
  • Fast processing and print speed of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
  • Optional 300 dpi high resolution choice for fine print quality
  • Dual-band WLAN (5 GHz and 2.4 GHz)
  • Dual-mode Bluetooth V4.1 Classic and LE
  • Extended memory space up to 256MB SDRAM, 256MB Flash
  • An adjustable media guide and a holder
  • Field-installable Peeler and Auto Cutter
  • SNMP enabled WLAN functionality
  • XPM™ & XCM™ - Web-based printer management software and connection app
Read More
$411.96
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $407.84 1% OFF
5 $399.60 3% OFF
Add to Quote
Bixolon XD5-40 Barcode Label Printer Model Overview
The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS??, BPL-Z?? and BPL-E??, while supporting Smart Switch Programming Language. The XD5 series supports UHF RFID encode and print capability, easy installation and maintenance with exceptional print quality at 300 dpi. The XD5 series can connect to a wired or wireless network - 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto cutter and platen rollers with tool-less removable design minimize operation and maintenance costs.?The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, plus the development of your own applications via a suite of SDKs, and is backed by class-leading reliability.
Bixolon XD5-40TEK Barcode Label Printer Overview

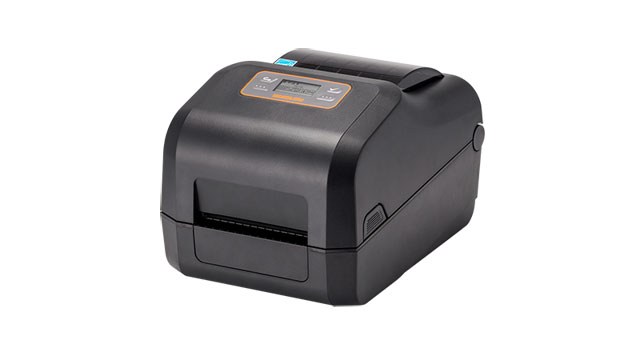

The mid-tier 4-inch (118mm) thermal transfer desktop label printer features a tool-less design for simple maintenance, multiple wired and wireless interface, optional mono LCD and supporting half-inch and full-inch core ribbon (74m and 300m). XD5-40t is suitable for asset marking, price management and manufacturing labelling that requires robust and exceptional print quality.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF417
  • QR Code
  • TLC 39
Application/Usage:
Desktop
Features:
  • Compact
  • LCD Display
Connectivity Technology:
Wired
Optional Connectivity:
  • Wireless LAN
  • Bluetooth
Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported
  • UTF-8
  • UTF-16LE
  • UTF-16BE
Memory
Standard Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Fanfold
  • Continuous Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • ZPL II
  • BPL-E
  • EPL
Power Description
Power Source:
  • AC Supply
  • Power Adapter
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Height:
7.4"
Width:
8.3"
Depth:
11.2"
Weight (Approximate):
5.47 lb
Miscellaneous
Platform Supported:
  • PC
  • Android
  • iOS
  • Mac
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
