Bixolon XD5-40d – Barcode Label Printer

Name: Bixolon XD5-40DEWK Barcode Label Printer
Brand: Bixolon
SKU: 712536
Price: 382.35 USD
Availability: OutOfStock

Part Number: XD5-40DEWK

Model: XD5-40

$382.35

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Use

Label Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

7 in/s

Maximum Print Resolution (dpi)

203

Product Description:

Barcode Label Printers, Bixolon XD5-40, Black, Built In USB, USB Host, Ethernet, Wi-Fi, Serial, 7 ips, Direct Thermal, 203 dpi, Up To 127 mm Roll Diameter

Explore all Bixolon XD5-40 Barcode Label Printers

Add to Quote

Bixolon XD5-40DEWK Barcode Label Printer

Overview

Full specifications (PDF)

Bixolon XD5-40 Barcode Label Printer Model Overview

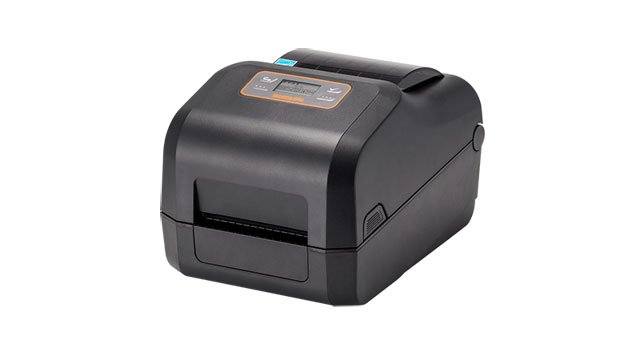

The XD5-40 Series 4-inch Desktop Label Printer delivers robust and reliable performance tailored for various industries including manufacturing, logistics, retail, and healthcare. With advanced direct thermal and thermal transfer printing options, it achieves fast processing speeds of up to 7 inches per second. Coupled with high-resolution capabilities, seamless wireless connectivity, and extensive memory, this printer is designed for growing business needs. User-friendly features such as an adjustable media guide, easy paper loading, and optional LCD display make it perfect for efficient operation and management.

Key Features

Print Methods: Direct Thermal (XD5-40d) & Thermal Transfer (XD5-40t)
Print Speeds: Up to 7 ips (XD5-40d) and 6 ips (XD5-40t)
High Resolution: Optional 300 dpi for fine print quality
Wireless Connectivity: Dual-band WLAN and Bluetooth V5.0
Usability Features: Compact design, adjustable media guide, and optional auto cutter
Label Design Software Compatibility: BIXOLON's Label Artist™ and Seagull's BarTender®

Specifications

Print Methods:
- XD5-40d: Direct Thermal
- XD5-40t: Thermal Transfer or Direct Thermal
Print Speeds:
- XD5-40d: Up to 7 ips (178 mm/sec)
- XD5-40t: Up to 6 ips (152 mm/sec)
Print Resolution:
- XD5-40d, XD5-40t: 203 dpi
Dimensions:
- XD5-40d: 194 x 248 x 169 mm
- XD5-40t: 210 x 284 x 188 mm
Weight:
- XD5-40d: 1.89 kg (4.17 lbs.)
- XD5-40t: 2.48 kg (5.46 lbs.)
Connectivity:
- USB + USB Host (standard)
- Optional interfaces available: Serial, Ethernet, WLAN, Bluetooth

Bixolon XD5-40DEWK Barcode Label Printer Overview

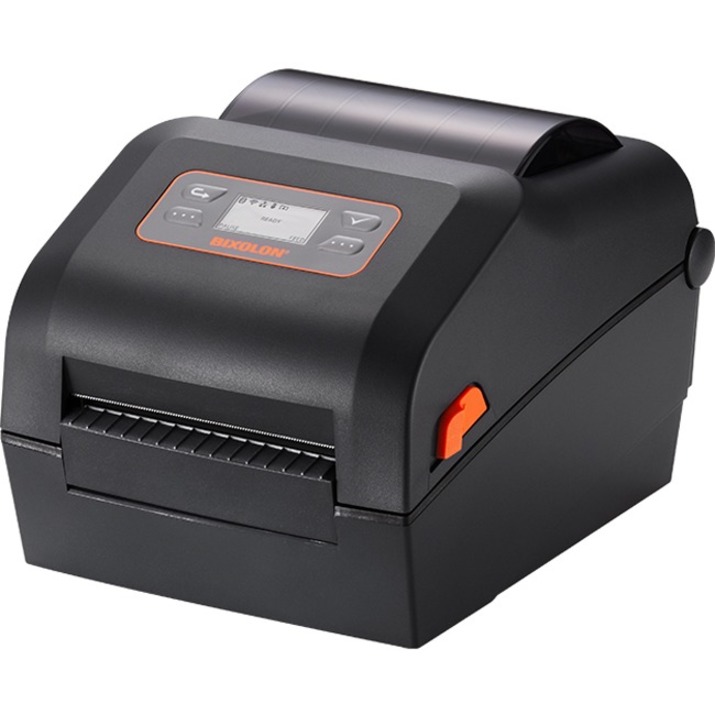

The compact, 4-inch Direct Thermal XD5-40d provides a performance feature set supporting multiple media types and range of wired and wireless interfaces. Fast processing and print speeds up to 7ips, the printer has optional high resolution and LCD display choices. 300dpi for finer output and LCD display for easier setup and use, or to receive instructional and alert information that provides links to model specific support pages.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

7 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Length:

39.37"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
Code 128
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Plessey
POSTNET
GS1 DataBar
Standard 2 of 5
UPC/EAN
UPC-A
UPC-E
IMB
Aztec Code
Codablock
Code 49
Data Matrix
Maxi Code
Micro PDF-417
PDF417
QR Code
TLC 39

Peel Facility:

Yes

Application/Usage:

Desktop

Features:

Compact
LCD Display

Connectivity Technology:

Wired

Optional Connectivity:

Bluetooth

Fonts Included:

10 SLCS
One SLCS
16 BPL-Z
One BPL-Z
5 BPL-E
23 Code Page
Unicode supported
UTF-8
UTF-16LE
UTF-16BE

Print Technology:

Direct Thermal

Memory

Standard Memory:

64 MB

Interfaces/Ports

Serial Port:

Yes

USB Host:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Wireless LAN:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Label
Gap
Black Mark
Notch
Fanfold
Continuous Label

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Fonts & Emulation

Language Emulation:

SLCS
BPL-Z
ZPL II
BPL-E
EPL

Power Description

Power Source:

AC Supply
Power Adapter

Input Voltage:

120 V AC
230 V AC

Environmental Conditions

Operating Temperature:

32°F (0°C) - 104°F (40°C)

Operating Relative Humidity:

10% - 80%

Storage Temperature:

-4°F (-20°C) - 140°F (60°C)

Storage Relative Humidity:

10% - 90%

Physical Characteristics

Color Family:

Black

Product Color:

Black

Height:

6.7"

Width:

7.6"

Depth:

9.8"

Weight (Approximate):

4.17 lb

Miscellaneous

Cables Included:

USB

Platform Supported:

PC
iOS
Android

Energy Star:

Yes

Item Numbers

GTIN: 8809521197501

EAN: 8809521197501

UNSPSC: 45101512
