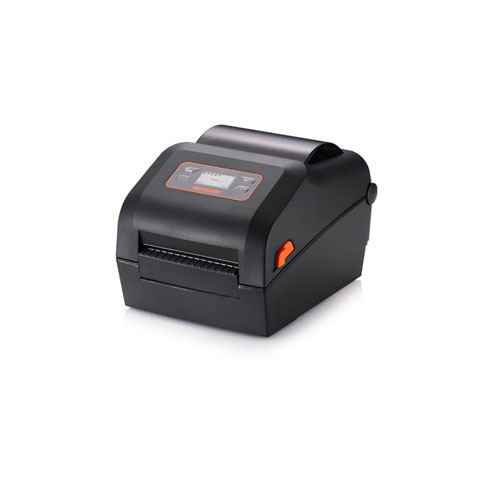

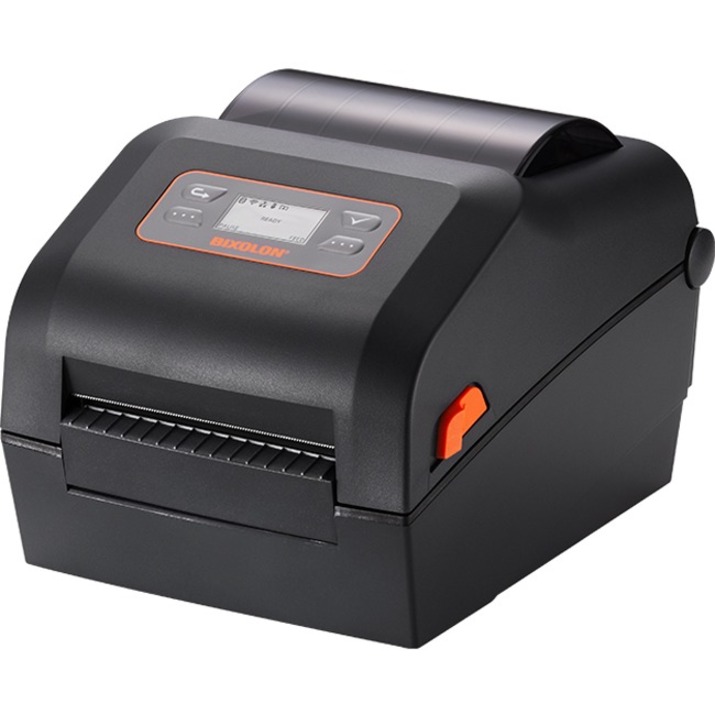

Bixolon XD5-40 – Barcode Label Printer – 203 dpi

Part Number: XD5-40DEK
Model: XD5-40
Add to My Shopping List Add to Compare
$304.81
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
203 dpi
Max Print Width
4.75 inch

Product Description:

  Desktop Label Printer, Bixolon XD5-40, USB, USB Host, Serial, Ethernet, 7 IPS, 203 DPI, Black. Includes: Power Supply
Explore all Bixolon XD5-40 Barcode Label Printers
Add to Quote
Bixolon XD5-40DEK Barcode Label Printer
Bixolon XD5-40DEK Barcode Label Printer
Bixolon XD5-40DEK Barcode Label Printer Bixolon XD5-40DEK Barcode Label Printer
Full specifications (PDF)

Bixolon XD5-40 Barcode Label Printer Model Overview

The XD5-40 Series 4-inch Desktop Label Printer delivers robust and reliable performance tailored for various industries including manufacturing, logistics, retail, and healthcare. With advanced direct thermal and thermal transfer printing options, it achieves fast processing speeds of up to 7 inches per second. Coupled with high-resolution capabilities, seamless wireless connectivity, and extensive memory, this printer is designed for growing business needs. User-friendly features such as an adjustable media guide, easy paper loading, and optional LCD display make it perfect for efficient operation and management.


Key Features

  • Print Methods: Direct Thermal (XD5-40d) & Thermal Transfer (XD5-40t)
  • Print Speeds: Up to 7 ips (XD5-40d) and 6 ips (XD5-40t)
  • High Resolution: Optional 300 dpi for fine print quality
  • Wireless Connectivity: Dual-band WLAN and Bluetooth V5.0
  • Usability Features: Compact design, adjustable media guide, and optional auto cutter
  • Label Design Software Compatibility: BIXOLON's Label Artist™ and Seagull's BarTender®

Specifications

  • Print Methods:
    • XD5-40d: Direct Thermal
    • XD5-40t: Thermal Transfer or Direct Thermal
  • Print Speeds:
    • XD5-40d: Up to 7 ips (178 mm/sec)
    • XD5-40t: Up to 6 ips (152 mm/sec)
  • Print Resolution:
    • XD5-40d, XD5-40t: 203 dpi
  • Dimensions:
    • XD5-40d: 194 x 248 x 169 mm
    • XD5-40t: 210 x 284 x 188 mm
  • Weight:
    • XD5-40d: 1.89 kg (4.17 lbs.)
    • XD5-40t: 2.48 kg (5.46 lbs.)
  • Connectivity:
    • USB + USB Host (standard)
    • Optional interfaces available: Serial, Ethernet, WLAN, Bluetooth
Bixolon XD5-40DEK Barcode Label Printer Overview

The compact, 4-inch Direct Thermal XD5-40d provides a performance feature set supporting multiple media types and range of wired and wireless interfaces. Fast processing and print speeds up to 7ips, the printer has optional high resolution and LCD display choices. 300dpi for finer output and LCD display for easier setup and use, or to receive instructional and alert information that provides links to model specific support pages.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF417
  • QR Code
  • TLC 39
Peel Facility:
Yes
Application/Usage:
Desktop
Features:
  • Compact
  • LCD Display
Connectivity Technology:
Wired
Optional Connectivity:
  • Wireless LAN
  • Bluetooth
Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported
  • UTF-8
  • UTF-16LE
  • UTF-16BE
Print Technology:
Direct Thermal
Memory
Standard Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Fanfold
  • Continuous Label
Media Size:
4.65"
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • ZPL II
  • BPL-E
  • EPL
Power Description
Power Source:
  • AC Supply
  • Power Adapter
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
6.7"
Width:
7.6"
Depth:
9.8"
Weight (Approximate):
4.17 lb
Miscellaneous
Cables Included:
USB
Platform Supported:
  • PC
  • Android
  • iOS
Energy Star:
Yes
Item Numbers
GTIN: 8809521197525
EAN: 8809521197525
UNSPSC: 45101512
