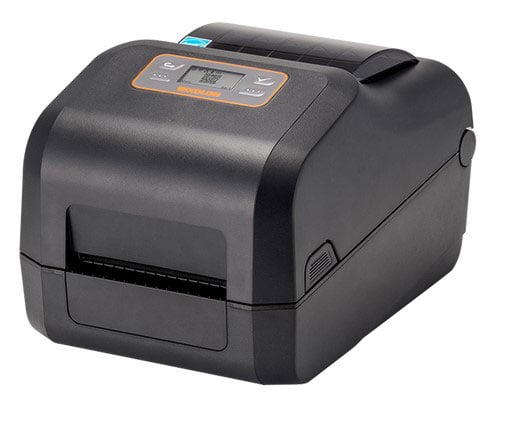

Bixolon XD5-43TK – Barcode Label Printer – 300 dpi

Part Number: XD5-43TK
Model: XD5-40
to get Free Ground Shipping on your order.
$426.15

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
300 dpi
Max Print Width
4.75 inch

Product Description:

  Barcode Label Printer, Bixolon XD5-43TK, Thermal Transfer, USB, USB Host, 4 IPS, 300 DPI, Black. Included: US Power Supply

Bixolon XD5-40 Barcode Label Printer Model Overview

The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS, BPL-Z and BPL-E, while supporting Smart Switch Programming Language. The XD5 series supports UHF RFID encode and print capability, easy installation and maintenance with exceptional print quality at 300 dpi. The XD5 series can connect to a wired or wireless network - 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto cutter and platen rollers with tool-less removable design minimize operation and maintenance costs. The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, plus the development of your own applications via a suite of SDKs, and is backed by class-leading reliability.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution:
300 dpi
Maximum Print Length:
39.37"
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF417
  • QR Code
  • TLC 39
Application/Usage:
Desktop
Features:
  • Compact
  • LCD Display
Optional Connectivity:
  • Wireless LAN
  • Bluetooth
  • Serial (RS-232)
  • Ethernet
Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported
  • UTF-8
  • UTF-16LE
  • UTF-16BE
Memory
Standard Memory:
64 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Fanfold
  • Continuous Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • ZPL II
  • BPL-E
  • EPL
Power Description
Power Source:
  • AC Supply
  • Power Adapter
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Relative Humidity (H-H):
10% - 80%
Miscellaneous
Platform Supported:
  • PC
  • Android
  • iOS
  • Mac
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
