Ubiquiti Networks UniFi Switch 24/48 Network Switch Model Overview
Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products. Available with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks. The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non blocking throughput, the 24 port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Ubiquiti Networks USW-48 Data Networking Overview

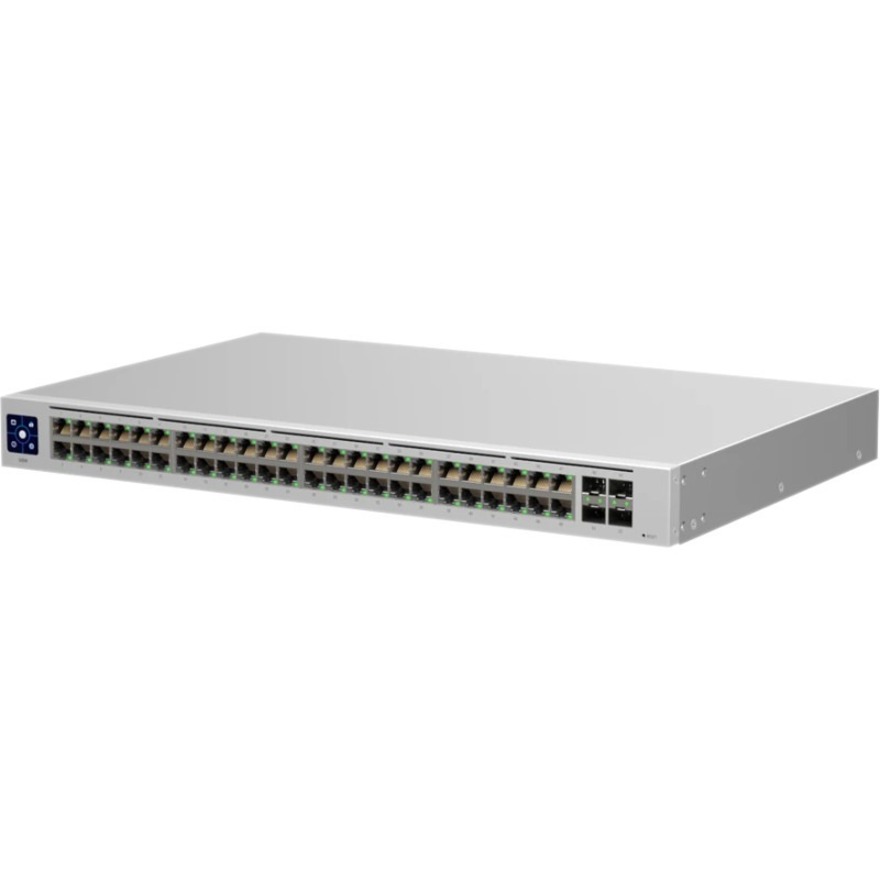

UniFi Switch 48 is a fully managed Layer 2 switch with (48) Gigabit Ethernet ports and (4) 1G SFP ports for fiber connectivity.
The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Application and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
(48) Gigabit RJ45 ports
(4) 1G SFP ports
Layer 2 features
Fanless, silent cooling
1.3" touchscreen display, supports UniFi Network AR
Managed by UniFi Network Application (5.13.10 or later)
Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti NanoMount Pole Mount for Wireless Access Point
Ubiquiti POE-24-24W Power over Ethernet Injector - 120 V AC, 230 V AC Input - 24 V DC, 1 A Output - 1 Ethernet Input Port(s) - 1 Ethernet Output Port(s) - 24 W.
Ubiquiti POE-48-24W-G Power over Ethernet Injector - 120 V AC, 230 V AC Input - 48 V DC, 500 mA Output - 1 Ethernet Input Port(s) - 1 Ethernet Output Port(s) - 24 W.
Ubiquiti POE-50-60W Power over Ethernet Injector - 120 V AC, 230 V AC Input - 50 V DC Output - 1 Ethernet Input Port(s) - 1 Ethernet Output Port(s) - 60 W.
Ubiquiti POE-15-12W Power over Ethernet Injector - 120 V AC, 230 V AC Input - 15 V DC, 800 mA Output - 1 Ethernet Input Port(s) - 1 Ethernet Output Port(s) - 12 W.
Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti NanoMount Pole Mount for Wireless Access Point
Ubiquiti POE-24-24W Power over Ethernet Injector - 120 V AC, 230 V AC Input - 24 V DC, 1 A Output - 1 Ethernet Input Port(s) - 1 Ethernet Output Port(s) - 24 W.
The Ubiquiti Networks USW-48 Data Networking is also known as
UBI-USW48
