Protection Type:
- Surge Protection
- Clamping Protection
- Peak Pulse Current

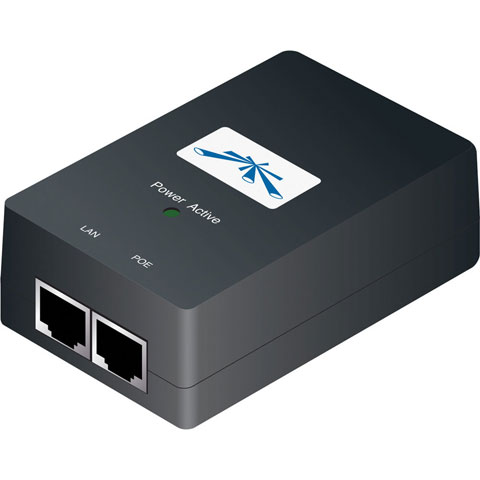

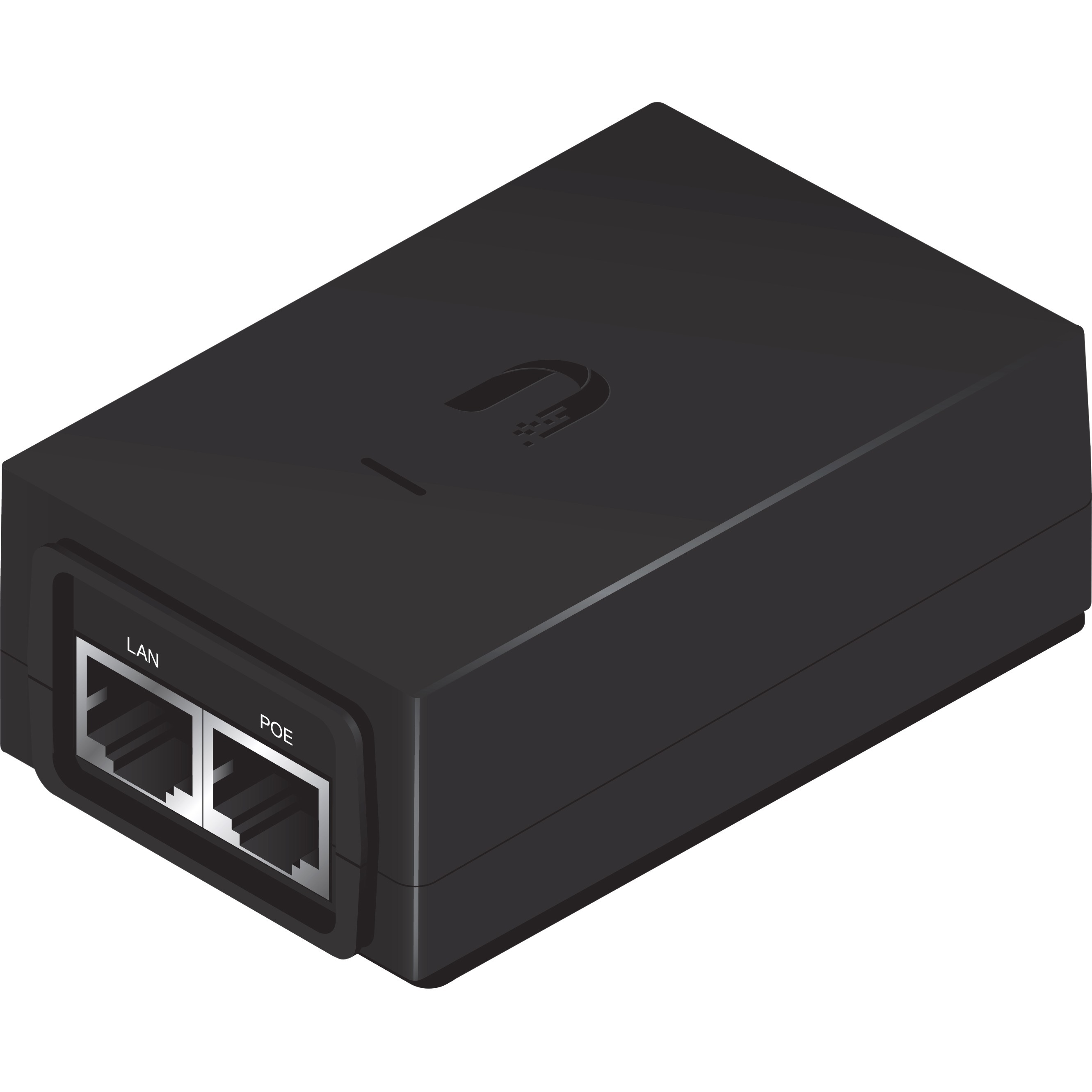

Ubiquiti Networks POE-48-24W-G PoE Injectors
Part Number:
POE-48-24W-G
Model:
Accessories
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
48 V DC
Maximum Input Current:
600 mA
Maximum Output Current:
500 mA
Minimum Frequency:
47 Hz
Maximum Frequency:
63 Hz
Maximum Output Power:
24 W
Interfaces/Ports
Input Ports:
1 x Gigabit Ethernet
Output Ports:
1 x PoE
Physical Characteristics
Height:
1.3"
Width:
2.4"
Depth:
3.6"
Weight (Approximate):
5.59 oz
Miscellaneous
Certifications & Standards:
CE FCC IC UL
Item Numbers
GTIN:
0007575705385, 0085783298738, 0696552126352, 0709257386072, 0810354021220, 0818208084827, 0818213995774, 0818216222853, 0818241164135, 0818275685378
UPC:
007575705385, 085783298738, 696552126352, 709257386072, 810354021220, 818208084827, 818213995774, 818216222853, 818241164135, 818275685378
EAN:
0007575705385, 0085783298738, 0696552126352, 0709257386072, 0810354021220, 0818208084827, 0818213995774, 0818216222853, 0818241164135, 0818275685378
UNSPSC:
39121004
Frequently Asked Questions
What is the power output specification of the Ubiquiti POE-48-24W-G injector?
The Ubiquiti POE-48-24W-G delivers 48V DC output at 500 mA, providing up to 24W of total PoE power. This injector accepts both 120V AC and 230V AC input, making it compatible with standard electrical infrastructure in most facilities.
How many Ethernet ports does the POE-48-24W-G have?
The POE-48-24W-G features one Ethernet input port and one Ethernet output port, making it ideal for injecting power into a single PoE-capable device or network segment.
What voltage range does the POE-48-24W-G PoE output support?
The injector outputs PoE in the 22-24V DC range using passive PoE delivery method. This voltage range is suitable for powering compatible Ubiquiti wireless access points and other PoE devices designed for 24V operation.
Is the Ubiquiti POE-48-24W-G suitable for outdoor deployments?
The POE-48-24W-G is designed for standard indoor use with an operating temperature range of -20 to 60°C and storage temperature range of -30 to 70°C. For outdoor installations, you should verify environmental protection and consider placement in weatherproof enclosures.
What input voltage options are available for the POE-48-24W-G?
The POE-48-24W-G accepts both 120V AC and 230V AC input power, providing flexibility for deployment in different regions and electrical environments. This dual-voltage support eliminates the need for separate units across different facilities.
Where can I purchase the Ubiquiti POE-48-24W-G injector?
We offer the Ubiquiti POE-48-24W-G PoE injector as part of our comprehensive networking accessories inventory. Contact us today or visit barcodesinc.com to check availability, pricing, and place your order for immediate delivery.
The Ubiquiti Networks POE-48-24W-G PoE Injectors is also known as
UBI-POE4824WG
