Protection Type:
- Surge Protection
- Clamping Protection
- Peak Pulse Current

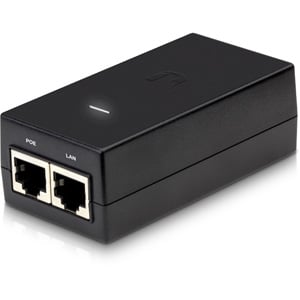

Ubiquiti Networks POE-15-12W PoE Injectors
Part Number:
POE-15-12W
Model:
Accessories
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
15 V DC
Maximum Input Current:
300 mA
Maximum Output Current:
800 mA
Minimum Frequency:
47 Hz
Maximum Frequency:
50 Hz
Maximum Output Power:
12 W
Interfaces/Ports
Input Ports:
1 x Ethernet
Output Ports:
1 x Ethernet
Physical Characteristics
Height:
3.3"
Width:
1.7"
Depth:
1.1"
Weight (Approximate):
3.24 oz
Miscellaneous
Compatibility:
Station/CPE Devices
Certifications & Standards:
- UL
- EN55022 (CISPR22) Class B
- CE
- IEC 60950-1:2005+A1
- UL60950-1
- EN55022:2010
- EN55024:2010
- FCC Class B
Item Numbers
GTIN:
0666039063982, 0696454052216, 0696455067707, 0810354021176, 0810354022968, 0818214675330, 0818216206310, 0818250988685, 8103540229688
UPC:
666039063982, 696454052216, 696455067707, 810354021176, 810354022968, 818214675330, 818216206310, 818250988685
EAN:
0666039063982, 0696454052216, 0696455067707, 0810354021176, 0810354022968, 0818214675330, 0818216206310, 0818250988685, 8103540229688
UNSPSC:
39121004
Frequently Asked Questions
What is the power output specification of the Ubiquiti POE-15-12W injector?
The Ubiquiti POE-15-12W delivers 15V DC at 800 mA output, providing 12W of power per port. This injector supports passive Power over Ethernet delivery and is designed for devices requiring lower voltage PoE than standard 48V systems.
What input voltage does the POE-15-12W accept?
The POE-15-12W accepts both 120V AC and 230V AC input, making it suitable for use in different regional power standards. This dual-voltage capability ensures compatibility across various international installations.
How many Ethernet ports does this PoE injector have?
The Ubiquiti POE-15-12W features 1 Ethernet input port and 1 Ethernet output port. This single-port design makes it ideal for injecting power into individual devices on your network.
Is the POE-15-12W compatible with standard PoE devices?
The POE-15-12W uses passive Power over Ethernet delivery at 15V DC, which differs from standard IEEE 802.3af/at PoE that operates at higher voltages. Compatibility depends on your specific device's power requirements—verify your equipment supports 15V passive PoE before deployment. Contact us today for guidance on device compatibility.
What are the operating temperature and humidity specifications?
The available product data does not specify the operating temperature and humidity ranges for the POE-15-12W model. We recommend contacting our team at barcodesinc.com for detailed environmental specifications to ensure this injector meets your facility requirements.
Can I use the POE-15-12W to power multiple devices simultaneously?
No, the POE-15-12W is a single-port injector with one Ethernet input and one output port, designed to power one device at a time. If you need to power multiple devices, you would require additional injectors or a PoE switch. Visit barcodesinc.com to explore multi-port PoE solutions available from us.
The Ubiquiti Networks POE-15-12W PoE Injectors is also known as
UBI-POE1512W
