Protection Type:
- Surge Protection
- Clamping Protection
- Peak Pulse Current

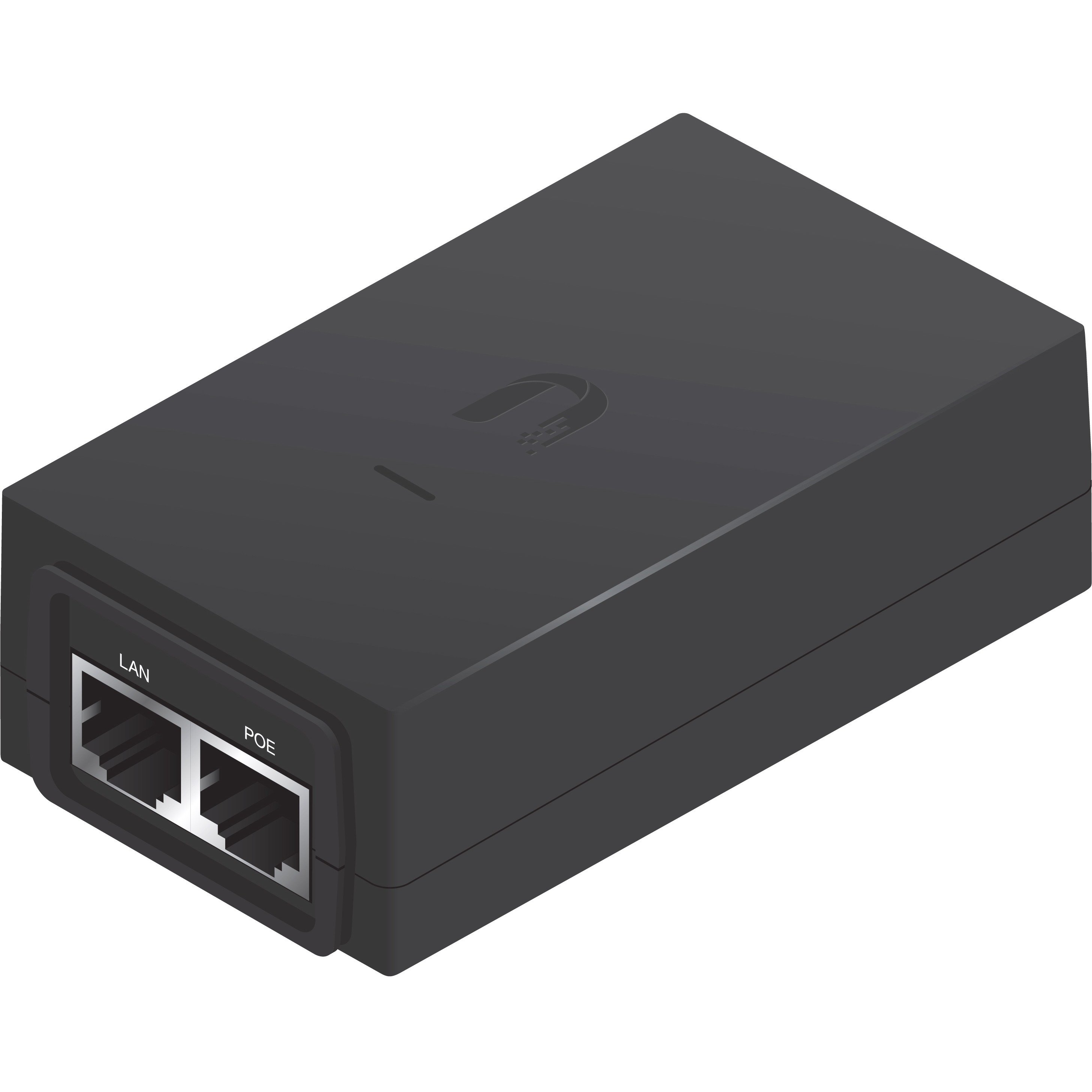

Ubiquiti Networks POE-50-60W PoE Injectors
Part Number:
POE-50-60W
Model:
Accessories
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
50 V DC
Maximum Input Current:
1.30 A
Minimum Frequency:
47 Hz
Maximum Frequency:
63 Hz
Maximum Output Power:
60 W
Interfaces/Ports
Input Ports:
1 x Ethernet
Output Ports:
1 x Ethernet
Physical Characteristics
Height:
1.3"
Width:
4"
Depth:
2.4"
Weight (Approximate):
6.77 oz
Miscellaneous
Compatibility:
Ubiquiti airFiber Radio Receiver
Certifications & Standards:
- IEC 60950-1:2005+A1
- UL60950-1
- EN55022:2010
- EN55024:2010
- FCC Class B
Country of Origin:
China
Item Numbers
GTIN:
0007577547006, 0686727726029, 0810354021237, 0810354023118, 0817882026680, 0818213969034, 0818213992872, 0818231446739, 0818242892495, 4250605597733
UPC:
007577547006, 686727726029, 810354021237, 810354023118, 817882026680, 818213969034, 818213992872, 818231446739, 818242892495, 999563975736
EAN:
0007577547006, 0686727726029, 0810354021237, 0810354023118, 0817882026680, 0818213969034, 0818213992872, 0818231446739, 0818242892495, 4250605597733
UNSPSC:
39121004
Frequently Asked Questions
What is the output voltage and power capacity of the Ubiquiti POE-50-60W injector?
The Ubiquiti POE-50-60W delivers 50V DC output at 60W maximum power capacity. This injector is designed to power compatible Ubiquiti networking devices over a single Ethernet connection, making it ideal for remote installations where AC power access is limited.
What input power options does the POE-50-60W support?
The POE-50-60W accepts both 120V AC and 230V AC input, providing flexible installation options across different regional power standards. This universal input voltage range ensures compatibility whether you're deploying in North America, Europe, or other markets.
How does the POE-50-60W connect to my network equipment?
The POE-50-60W features one Ethernet input port and one Ethernet output port, allowing you to inject power into a standard Cat5/Cat6 Ethernet cable running to your Ubiquiti device. Simply connect your AC power source to the injector, plug the input port into your network, and connect the output port to your PoE-compatible device.
What are the operating temperature and humidity specifications for the POE-50-60W?
The POE-50-60W operates reliably in temperatures from -20°C to 60°C (-4°F to 140°F) and in humidity levels from 5% to 90% non-condensing. These specifications make it suitable for indoor installations and protected outdoor enclosures in most climate conditions.
Is the POE-50-60W protected against power surges?
Yes, the POE-50-60W includes 4kV surge immunity for both differential and common mode protection, helping safeguard your connected Ubiquiti equipment from electrical transients and lightning-induced power spikes.
Where can I purchase the Ubiquiti POE-50-60W injector?
We offer the Ubiquiti POE-50-60W PoE injector as part of our comprehensive inventory of networking accessories and power solutions. Visit barcodesinc.com or contact us today to check availability, pricing, and delivery options for your deployment needs.
