Ubiquiti Networks USW-24 Data Networking

Part Number: USW-24
Model: UniFi Switch 24/48
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$269.58
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
24
Uplink Port
Yes
Modular
Yes
Port/Expansion Slot Details
24 x Gigabit Ethernet Network2 x Gigabit Ethernet Expansion Slot

Product Description:

  Ubiquiti UniFi Switch 24 - 24 Ports - Manageable - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - 1 Year Limited Warranty.
DUE TO GLOBAL MANUFACTURE SUPPLY CHAIN ISSUES, EXPECT EXTENDED LEAD TIMES FOR UBIQUITI PRODUCTS.
Explore all Ubiquiti Networks UniFi Switch 24/48 Network Switches
Add to Quote
Ubiquiti Networks USW-24 Data Networking
Ubiquiti Networks USW-24 Data Networking
Ubiquiti Networks USW-24 Data Networking Ubiquiti Networks USW-24 Data Networking
Full specifications (PDF)

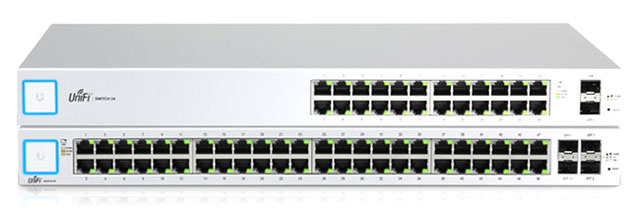

Ubiquiti Networks UniFi Switch 24/48 Network Switch Model Overview

Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products. Available with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks. The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non blocking throughput, the 24 port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Ubiquiti Networks USW-24 Data Networking Overview

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features:

  • (24) Gigabit Ethernet Ports
  • (2) Gigabit SFP Ports
  • 1.3" color touchscreen for status information
  • Managed by UniFi Network Controller
  • 1U rackmountable (kit included)

Managed by UniFi Network Controller version: 5.12.32 or higher

Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 1000Base-T
  • 1000Base-X
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP (mini-GBIC)
Shared SFP Slot:
No
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Power Consumption:
25 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
7.9"
Weight (Approximate):
5.95 lb
Miscellaneous
Package Contents:
  • UniFi Switch 24
  • Rackmount Kit
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0810010071415
UPC: 810010071415
EAN: 0810010071415
UNSPSC: 43222612
