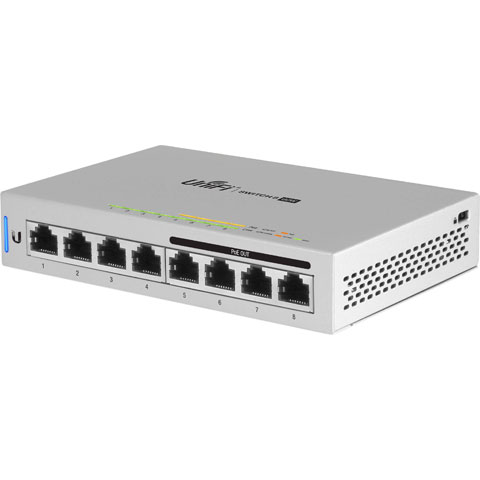

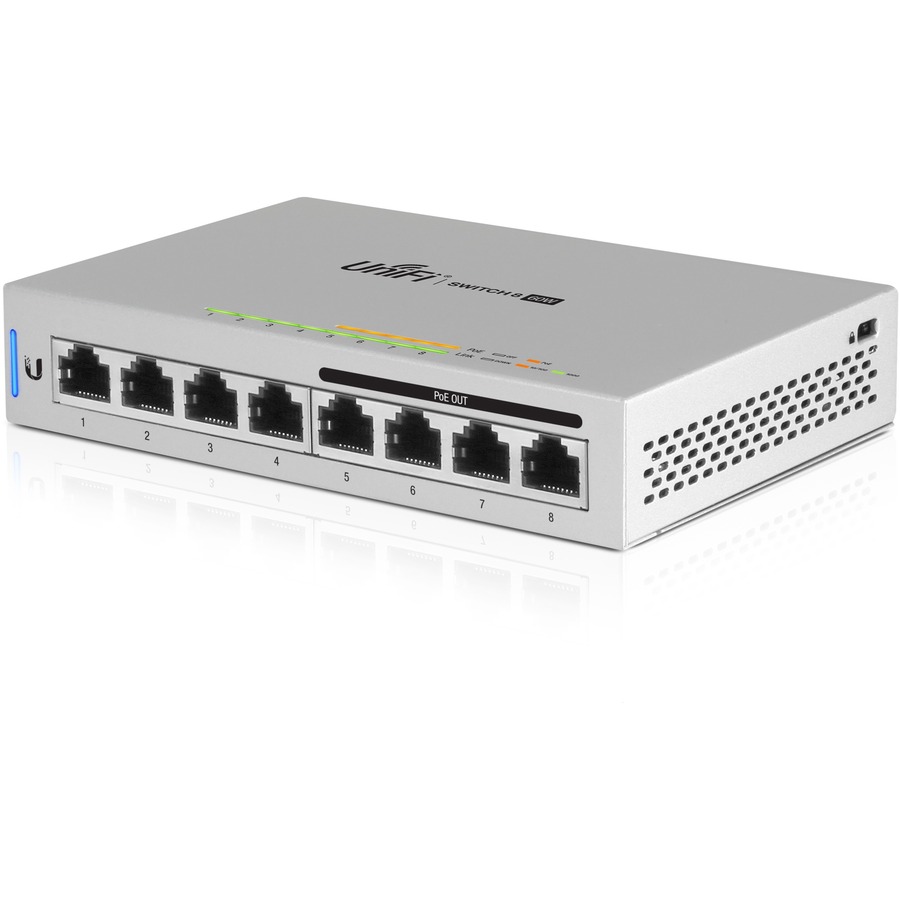

Ubiquiti Networks US-8-60W Ethernet Switch

Part Number: US-8-60W
Model: UniFi Switch 8
Add to My Shopping List Add to Compare
$333.17
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
8
Uplink Port
No
Modular
No
Stack Port
No

Product Description:

  Ubiquiti UniFi US-8-60W Ethernet Switch - 8 Ports - Manageable - Twisted Pair - Desktop - 1 Year Limited Warranty.
Explore all Ubiquiti Networks UniFi Switch 8 Ethernet Switches
Add to Quote
Ubiquiti Networks US-8-60W Ethernet Switch
Ubiquiti Networks US-8-60W Ethernet Switch
Ubiquiti Networks US-8-60W Ethernet Switch
Ubiquiti Networks US-8-60W Ethernet Switch Ubiquiti Networks US-8-60W Ethernet Switch Ubiquiti Networks US-8-60W Ethernet Switch
Full specifications (PDF)

Ubiquiti Networks UniFi Switch 8 Ethernet Switch Model Overview

Experience seamless connectivity with the Ubiquiti UniFi Switch 8, a robust 8-port managed gigabit switch designed for enterprise networks. Its compact design houses Gigabit Ethernet ports that ensure high-speed throughput of up to 8 Gbps, making it perfect for critical data transfer needs. Power over Ethernet (PoE) capabilities make it an ideal solution for powering devices like access points and cameras directly through the Ethernet cable. Easily manage your network with the intuitive UniFi Controller, giving you comprehensive oversight and configuration options.


Key features:

  • 8 Gigabit RJ45 Ports for high-speed network performance.
  • Non-Blocking Throughput of 8 Gbps
  • PoE Passthrough Port for powering devices.
  • Managed Capabilities via the UniFi Controller software.
  • Supports multi-site management for easier network oversight.

Specifications:

  • Model: US-8
  • Weight: 432 g (15.24 oz)
  • Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
  • Total Non-Blocking Throughput: 8 Gbps
  • Switching Capacity: 16 Gbps
  • Forwarding Rate: 11.9 Mpps
  • Power Consumption: 12W (excluding PoE output)
  • PoE Ports: 4 ports supporting IEEE 802.3af/at
  • Operating Temperature: -5 to 45°C (23 to 113°F)
  • Certifications: CE, FCC, IC
Ubiquiti Networks US-8-60W Ethernet Switch Overview
Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. The new 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching
for your networks.

Switching Performance

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps with a switching capacity of 16 Gbps.

PoE

The US-8 can be powered by 802.3af/at, 48V passive PoE, or the included power adapter. When the US-8 is powered by 802.3at PoE or the included power supply, port 8 supports 48V (2-pair) PoE passthrough to deliver up to 12W of power.
Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
8
Uplink Port:
No
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
8 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Adapter
Redundant Power Supply Supported:
No
Physical Characteristics
Form Factor:
Desktop
Height:
1.2"
Width:
5.8"
Depth:
3.9"
Weight (Approximate):
15.24 oz
Miscellaneous
Package Contents:
  • UniFi US-8-60W Ethernet Switch
  • AC Adapter
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0703624196684, 0783555175071, 0783555181683, 0783555181690, 0810354026164, 0810354026188, 0817882023009, 0818203303756, 0818208298927, 0818214943934
UPC: 703624196684, 783555175071, 783555181683, 783555181690, 810354026164, 810354026188, 817882023009, 818203303756, 818208298927, 818214943934
EAN: 0703624196684, 0783555175071, 0783555181683, 0783555181690, 0810354026164, 0810354026188, 0817882023009, 0818203303756, 0818208298927, 0818214943934
UNSPSC: 43222612

Recommended Accessories

Category

  • Data Networking Device Accessories (40)
  • Network Antennas (1)
  • Network Transceivers & SFP Modules (1)
  • PoE Injectors (10)
  • Ubiquiti Networks Wireless and Data Networking Products (40)

Recommended Accessories for Model: Ubiquiti Networks US-8-60W Ethernet Switch

Top Data Networking Device Accessories Purchased With Ubiquiti Networks US-8-60W

See All Data Networking Device Accessories for Ubiquiti Networks US-8-60W Ethernet Switch >

Top Network Antennas Purchased With Ubiquiti Networks US-8-60W

Top Network Transceivers & SFP Modules Purchased With Ubiquiti Networks US-8-60W

Top PoE Injectors Purchased With Ubiquiti Networks US-8-60W

See All PoE Injectors for Ubiquiti Networks US-8-60W Ethernet Switch >

Top Ubiquiti Networks Wireless and Data Networking Products Purchased With Ubiquiti Networks US-8-60W

See All Ubiquiti Networks Wireless and Data Networking Products for Ubiquiti Networks US-8-60W Ethernet Switch >

Frequently Asked Questions

The US-8-60W is powered by its included power adapter and features four auto-sensing PoE ports that deliver up to 15.4W of power per port. This makes it ideal for powering UniFi Access Points and UniFi G3 Video Cameras throughout your network.

The US-8-60W supports non-blocking throughput of up to 8 Gbps with a switching capacity of 16 Gbps, allowing it to simultaneously process traffic on all ports at line rate without any packet loss. This robust performance makes it suitable for enterprise-level network deployments.

Yes, the US-8-60W is fully compatible with UniFi G3 Video Cameras and all UniFi Access Point models, including UAP, UAP-LR, UAP-PRO, and the entire UAP-AC series. This compatibility allows you to build an integrated UniFi ecosystem for your network.

The US-8-60W features 8 Gigabit Ethernet RJ45 ports in a compact desktop form factor. All ports support Gigabit speeds for reliable connectivity across your network infrastructure.

Yes, the US-8-60W is a fully manageable switch, meaning you can configure and monitor it through the UniFi Controller software for centralized network management. This allows you to control and oversee your network infrastructure from a single interface.

The US-8-60W carries CE, FCC, and IC certifications, ensuring compliance with international regulatory standards. The switch comes with a 1-year limited warranty and is available from us today at competitive pricing.

The Ubiquiti Networks US-8-60W Ethernet Switch is also known as UBI-US860W
