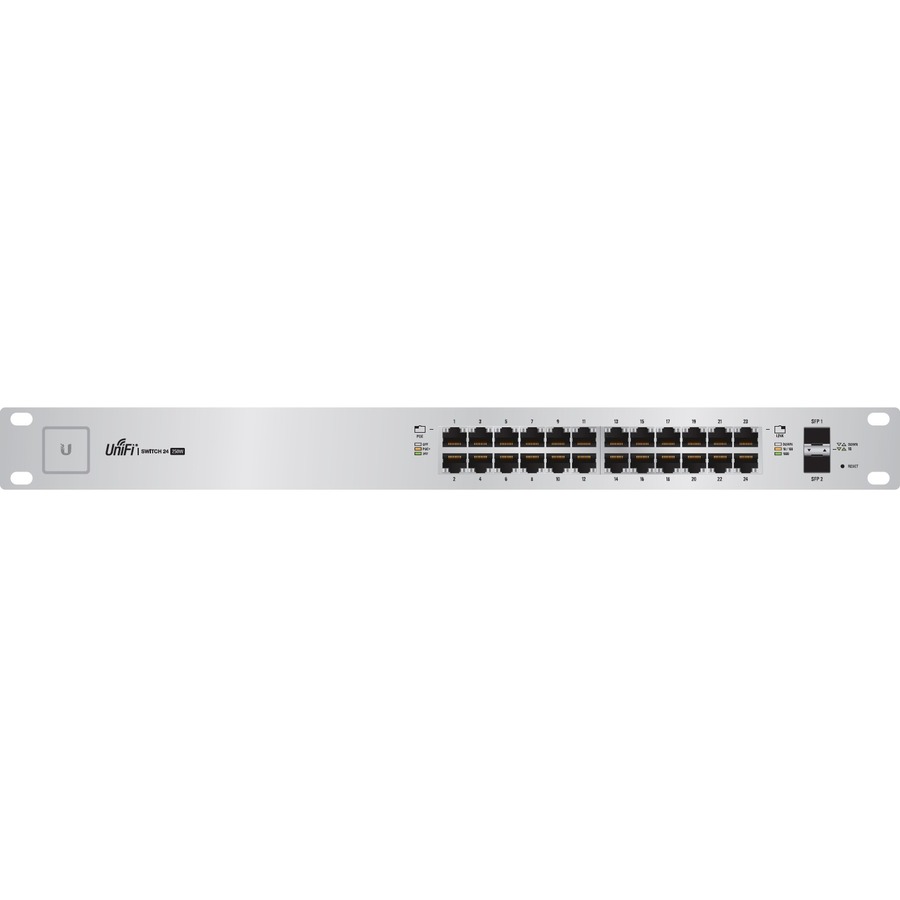

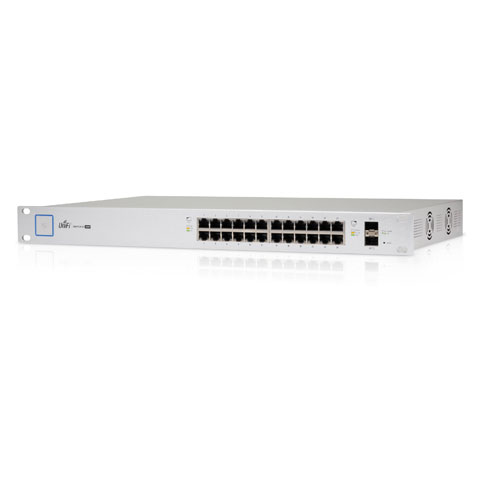

Ubiquiti Networks US-24-250W Ethernet Switch

Part Number: US-24-250W
Model: UniFi Switch PoE 24/48
Add to My Shopping List Add to Compare
$731.82
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
24
Token Ring Port
No
LRE Port
No
Bypass
No

Product Description:

  Ubiquiti UniFi Switch - 24 Ports - Manageable - 2 Layer Supported - 1U High - Rack-mountable - 1 Year Limited Warranty.
Explore all Ubiquiti Networks UniFi Switch PoE 24/48 Network Switches
Add to Quote
Ubiquiti Networks US-24-250W Ethernet Switch
Ubiquiti Networks US-24-250W Ethernet Switch
Ubiquiti Networks US-24-250W Ethernet Switch
Ubiquiti Networks US-24-250W Ethernet Switch Ubiquiti Networks US-24-250W Ethernet Switch Ubiquiti Networks US-24-250W Ethernet Switch
Full specifications (PDF)

Ubiquiti Networks UniFi Switch PoE 24/48 Network Switch Model Overview

Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps.
Ubiquiti Networks US-24-250W Ethernet Switch Overview
Powerful Enterprise Switch Models

The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.

Optical Fiber Connectivity

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ Support

The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
No
Number of PoE+ (RJ-45) Ports:
24
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
I/O Expansions
Total Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.8"
Width:
19.1"
Depth:
11.2"
Weight (Approximate):
8.16 lb
Miscellaneous
Certifications & Standards:
  • CE
  • FCC
  • IC
Country of Origin:
China
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0810354020766, 0810354023149, 0818249689883, 8103540231490
UPC: 696552889189, 810354020766, 810354023149, 818249689883
EAN: 0810354020766, 0810354023149, 0818249689883, 8103540231490
UNSPSC: 43222612

Recommended Accessories

Category

  • Data Networking Device Accessories (40)
  • Network Antennas (1)
  • Network Transceivers & SFP Modules (1)
  • PoE Injectors (10)
  • Ubiquiti Networks Wireless and Data Networking Products (40)

Recommended Accessories for Model: Ubiquiti Networks US-24-250W Ethernet Switch

Top Data Networking Device Accessories Purchased With Ubiquiti Networks US-24-250W

See All Data Networking Device Accessories for Ubiquiti Networks US-24-250W Ethernet Switch >

Top Network Antennas Purchased With Ubiquiti Networks US-24-250W

Top Network Transceivers & SFP Modules Purchased With Ubiquiti Networks US-24-250W

Top PoE Injectors Purchased With Ubiquiti Networks US-24-250W

See All PoE Injectors for Ubiquiti Networks US-24-250W Ethernet Switch >

Top Ubiquiti Networks Wireless and Data Networking Products Purchased With Ubiquiti Networks US-24-250W

See All Ubiquiti Networks Wireless and Data Networking Products for Ubiquiti Networks US-24-250W Ethernet Switch >

Frequently Asked Questions

The US-24-250W features 24 Gigabit RJ45 Ethernet ports plus 2 SFP ports for fiber uplinks. This configuration makes it ideal for mid-sized network deployments that require both copper and fiber connectivity options.

The US-24-250W delivers a non-blocking throughput of 26 Gbps with a total switching capacity of 52 Gbps and a forwarding rate of 38.69 Mpps. This means the switch can process traffic simultaneously on all ports at line rate without any packet loss.

Yes, the US-24-250W is a fully managed PoE+ Gigabit switch with auto-sensing IEEE 802.3af/at PoE capabilities. The switch automatically detects PoE devices and powers them without requiring manual configuration or setup.

Yes, the US-24-250W is rack-mountable and measures 443 x 43 x 221 mm (17.44 x 1.69 x 8.70 inches), making it a 1U form factor suitable for standard network equipment racks. Rack-mount brackets are available to secure the unit in your infrastructure.

The US-24-250W includes two SFP ports for uplinks of up to 1 Gbps, enabling easy network expansion and long-distance connectivity. These fiber ports allow you to connect to other switches or high-performance storage servers without consuming RJ45 ports.

The US-24-250W is a fully managed switch that can be configured and monitored through the UniFi Controller software. This allows you to access device details, manage configurations, and centrally control multiple UniFi sites from a single interface.

The Ubiquiti Networks US-24-250W Ethernet Switch is also known as UBI-US24250W
