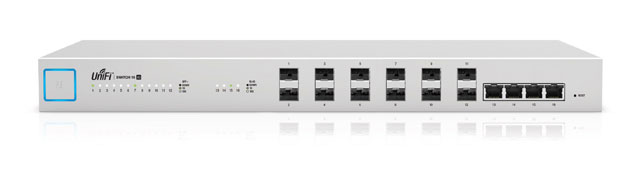

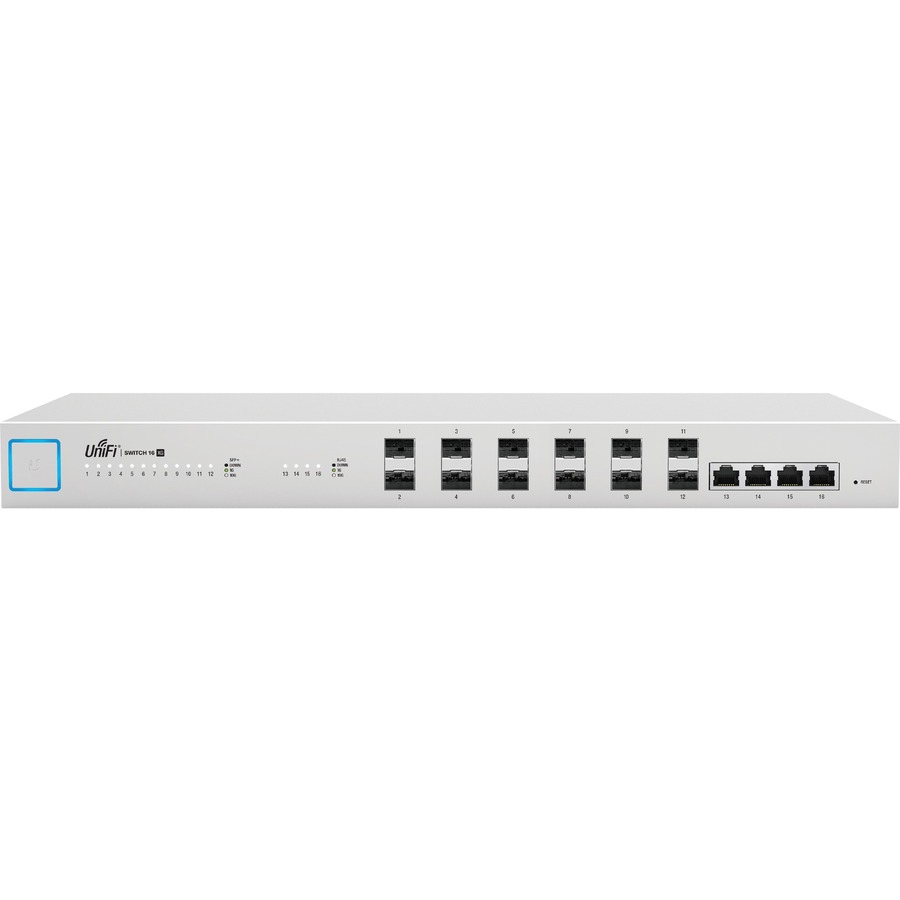

Ubiquiti Networks US-16-XG Ethernet Switch

Part Number: US-16-XG
Model: UniFi Switch 16 XG
Add to My Shopping List Add to Compare
$930.51
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
4
Uplink Port
Yes
Modular
Yes
Port/Expansion Slot Details
12 x 10 Gigabit Ethernet Expansion Slot4 x 10 Gigabit Ethernet Network

Product Description:

  Ubiquiti 10G 16-Port Managed Aggregation Switch - 4 Ports - Manageable - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Desktop.
Explore all Ubiquiti Networks UniFi Switch 16 XG Network Switches
Add to Quote
Ubiquiti Networks US-16-XG Ethernet Switch
Ubiquiti Networks US-16-XG Ethernet Switch
Ubiquiti Networks US-16-XG Ethernet Switch Ubiquiti Networks US-16-XG Ethernet Switch
Full specifications (PDF)

Ubiquiti Networks UniFi Switch 16 XG Network Switch Model Overview

Build and expand your network with Ubiquiti Networks UniFi Switch 16 XG, part of the UniFi Enterprise System. The US 16 XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network. The US 16 XG offers an extensive suite of advanced Layer-2 switching features and protocols. The US 16 XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The total non-blocking throughput is up to 160 Gbps.
Ubiquiti Networks US-16-XG Ethernet Switch Overview

The Switch XG 16 (US XG 16) is a fully managed, Layer 2 switch with (12) 10G SFP+ ports and (4) 10GbE RJ45 ports. Its 320 Gbps switching capacity and 160 Gbps total, non-blocking line rate make it an ideal aggregation switch for your core network. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
4
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
  • 12 x 10 Gigabit Ethernet Expansion Slot
  • 4 x 10 Gigabit Ethernet Network
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
  • 10GBase-X
  • 10GBase-T
I/O Expansions
Total Number of Expansion Slots:
12.0
Expansion Slot Type:
SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
12
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.7"
Width:
17.4"
Depth:
8.7"
Weight (Approximate):
5.78 lb
Miscellaneous
Package Contents:
  • 10G 16-Port Managed Aggregation Switch
  • Mount Brackets
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Item Numbers
GTIN: 0703624197223, 0709257388816, 0810354026072, 0818214948489
UPC: 703624197223, 709257388816, 810354026072, 818214948489
EAN: 0703624197223, 0709257388816, 0810354026072, 0818214948489
UNSPSC: 43222612

Recommended Accessories

Category

  • Data Networking Device Accessories (40)
  • Network Antennas (1)
  • Network Transceivers & SFP Modules (1)
  • PoE Injectors (10)
  • Ubiquiti Networks Wireless and Data Networking Products (40)

Recommended Accessories for Model: Ubiquiti Networks US-16-XG Ethernet Switch

Top Data Networking Device Accessories Purchased With Ubiquiti Networks US-16-XG

See All Data Networking Device Accessories for Ubiquiti Networks US-16-XG Ethernet Switch >

Top Network Antennas Purchased With Ubiquiti Networks US-16-XG

Top Network Transceivers & SFP Modules Purchased With Ubiquiti Networks US-16-XG

Top PoE Injectors Purchased With Ubiquiti Networks US-16-XG

See All PoE Injectors for Ubiquiti Networks US-16-XG Ethernet Switch >

Top Ubiquiti Networks Wireless and Data Networking Products Purchased With Ubiquiti Networks US-16-XG

See All Ubiquiti Networks Wireless and Data Networking Products for Ubiquiti Networks US-16-XG Ethernet Switch >

Frequently Asked Questions

The US-16-XG delivers a total non-blocking throughput of 160 Gbps with a switching capacity of 320 Gbps and a forwarding rate of 238.10 Mpps. This enables simultaneous processing of traffic on all ports at line rate without packet loss, making it ideal for high-bandwidth aggregation in enterprise networks.

The US-16-XG features 16 total ports: 12 SFP+ ports supporting 1/10 Gbps fiber connectivity and 4 RJ45 ports supporting 1/10 Gbps twisted pair connections. This combination of fiber and copper ports provides flexible deployment options for your network infrastructure.

Yes, the US-16-XG is fully rack-mountable as a 1U device and includes mounting brackets. It measures 443 x 221 x 43 mm (17.44 x 8.70 x 1.69 inches) and weighs 2.62 kg without brackets or 2.71 kg with brackets, making it compact for standard 19-inch rack installations.

The US-16-XG supports both AC and DC power inputs with an internal 56W DC power supply. AC power accepts 100-240VAC at 50-60 Hz, while DC power accepts 25-16VDC through a 2.5mm connector, with a maximum power consumption of 36W excluding SFP/SFP+ modules.

The Ubiquiti US-16-XG is designed to operate in temperatures from -5 to 40°C (23 to 104°F) and humidity levels of 5 to 95% noncondensing. It also includes ESD/EMP protection rated at ±24 kV for both air and contact scenarios.

The US-16-XG supports comprehensive Layer-2 switching protocols including VLAN tagging (802.1Q), link aggregation (802.3ad), spanning tree variants (802.1D/W/S), port-based authentication (802.1X), LLDP discovery, and IGMP snooping. These features enable advanced network segmentation, redundancy, and management capabilities for enterprise deployments.

The Ubiquiti Networks US-16-XG Ethernet Switch is also known as UBI-US16XG
