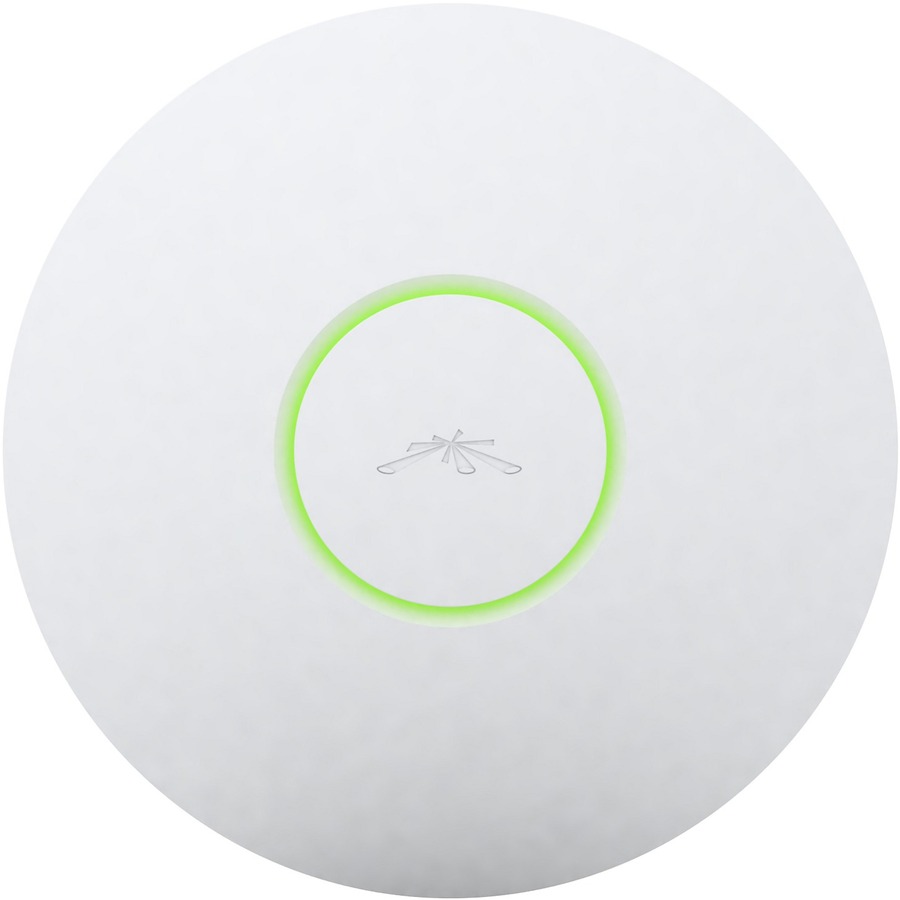

Ubiquiti Networks UAP-LR-3 Access Point

The Ubiquiti Networks UAP-LR-3 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Ubiquiti Networks UniFi AP - Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti UniFi UAP-LR IEEE 802.11n 300 Mbit/s Wireless Access Point - 2.40 GHz - 600 ft Maximum Indoor Range - 1 x Network (RJ-45) - Ethernet, Fast Ethernet - Wall Mountable, Ceiling Mountable - 3 Pack

When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
Link your Wi-Fi traffic to your wired network with Fast Ethernet port

Need a different version? See all Ubiquiti Networks UniFi AP Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Ubiquiti Networks UniFi AP Access Point Model Overview

The UniFi Enterprise Wi-Fi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. The LED indicator simplifies deployment and configuration. Plug and Play installation and intuitive management reduce the need for dedicated IT personnel resources.

Ubiquiti Networks UAP-LR-3 Access Point Overview

Scalable and Unified Enterprise WiFi Management

The UniFi® Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tileor wall using the included mounting hardware. UniFi AP (UAP) outdoor models have a form factor built to last outdoors.

The UniFi Enterprise WiFi System includes the UniFi Controller software. The software installs on any PC, Mac, or Linux machine within the network and is easily accessible through any standard web browser. Using theUniFi Controller software, an Enterprise WiFi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

Frequency Band:

2.40 GHz

ISM Band:

Yes

UNII Band:

ISM Maximum Frequency:

2.40 GHz

Antenna Gain:

3 dBi

Antenna Type:

Omnidirectional Antenna

Indoor Antenna Range:

600 ft

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WEP
WPA-PSK
WPA-TKIP
WPA2 AES

Features:

LED Indicator
MIMO Technology
Quality of Service (QoS)
Security Slot

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet

Number of Network (RJ-45) Ports:

Network (RJ-11):

PoE (RJ-45) Port:

PoE PD Port:

Yes

VGA:

HDMI:

Audio Line Out:

Serial Port:

USB:

Powerline:

Management Port:

Management & Protocols

Management:

VLAN

Power Description

Input Voltage:

24 V DC

Physical Characteristics

Form Factor:

Wall Mountable
Ceiling Mountable

Height:

7.9"

Width:

7.9"

Depth:

1.4"

Weight (Approximate):

10.23 oz

Miscellaneous

Package Contents:

UniFi Enterprise WiFi System
Power over Ethernet Adapter
Wall and Ceiling Mount Adapter

Certifications & Standards:

IEEE Standards:

802.11b
802.11g
802.11n
802.11i
802.1Q

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0609132712302, 0609722639163, 0810354023057, 0810354025129, 0818241493013

UPC: 609132712302, 609722639163, 810354023057, 810354025129, 818241493013

EAN: 0609132712302, 0609722639163, 0810354023057, 0810354025129, 0818241493013

UNSPSC: 43222631
