Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points

Part Number: UAP-AC-HD-5
Model: UniFi AP AC HD
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
2.40 GHz5 GHz
Total Number of Antennas
4
Number of Internal Antennas
4

Product Description:

  Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti UniFi AC HD UAP-AC-HD IEEE 802.11ac 2.47 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - 2 x Network (RJ-45) - Ceiling Mountable, Wall Mountable - 5 Pack
Explore all Ubiquiti Networks UniFi AP AC HD Wireless Access Points
Add to Quote
Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points
Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points
Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points
Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points
Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points
Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points
Full specifications (PDF)

Ubiquiti Networks UniFi AP AC HD Wireless Access Points Model Overview

UniFi 802.11AC Dual Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware. It uses the power of UniFi and its revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology. The UniFi AP AC HD has 4x4 Dual-Radio 2.53 Gbps Performance
Ubiquiti Networks UAP-AC-HD-5 Wireless Access Points Overview

Build your Wi-Fi network with the UniFi® HD Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-HD, is an indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters. Engineered from the ground up to take advantage of 802.11AC Wave 2, the UAP-AC-HD provides unparalleled multi-user support.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 2.40 GHz
  • 5 GHz
Total Number of Antennas:
4
Number of Internal Antennas:
4
Wireless Transmission Speed:
2.47 Gbit/s

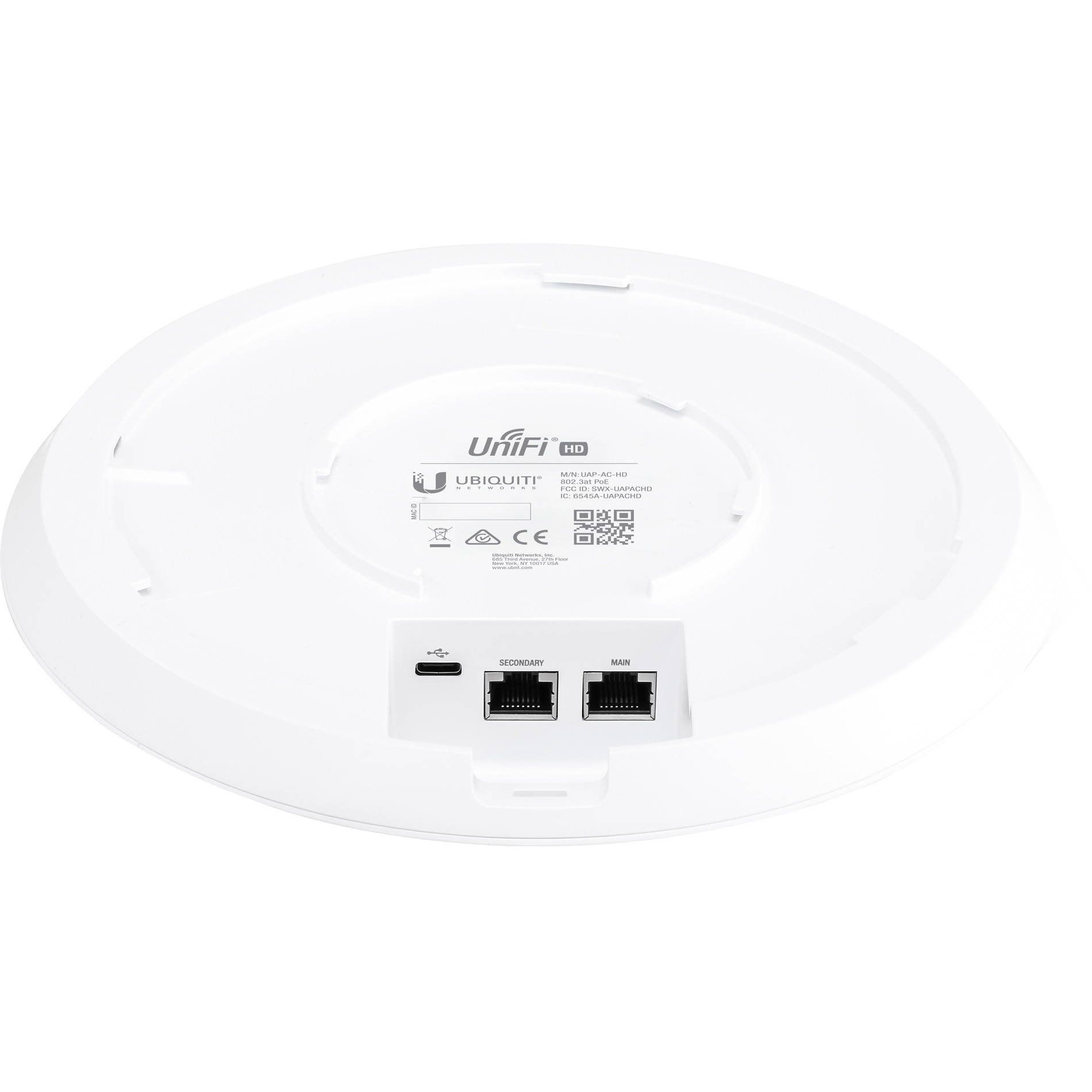

Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE PD Port:
Yes
USB:
Yes
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.9"
Diameter:
8.7"
Weight (Approximate):
1.54 lb
Miscellaneous
Package Contents:
  • UniFi AC HD UAP-AC-HD Wireless Access Point
  • Wall/Ceiling Mounting Kits
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0810354026119, 0810354026133, 0818239176935
UPC: 810354026119, 810354026133, 818239176935
EAN: 0810354026119, 0810354026133, 0818239176935
UNSPSC: 43222631
