Full specifications (PDF)
Antenna Connector:
RP-SMA Connector
Features:
- Water Proof
- Rugged
- MIMO Technology
- Quality of Service (QoS)

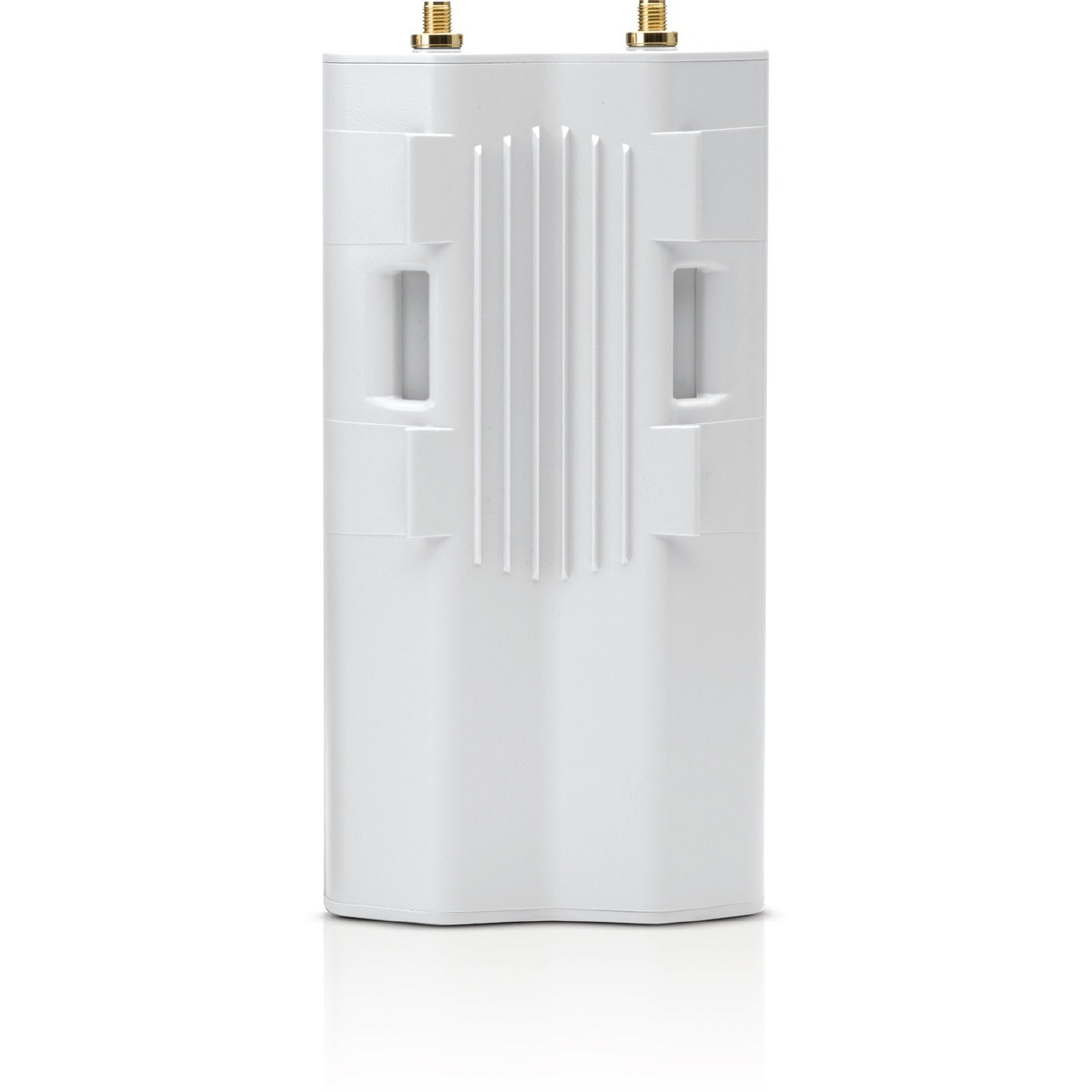

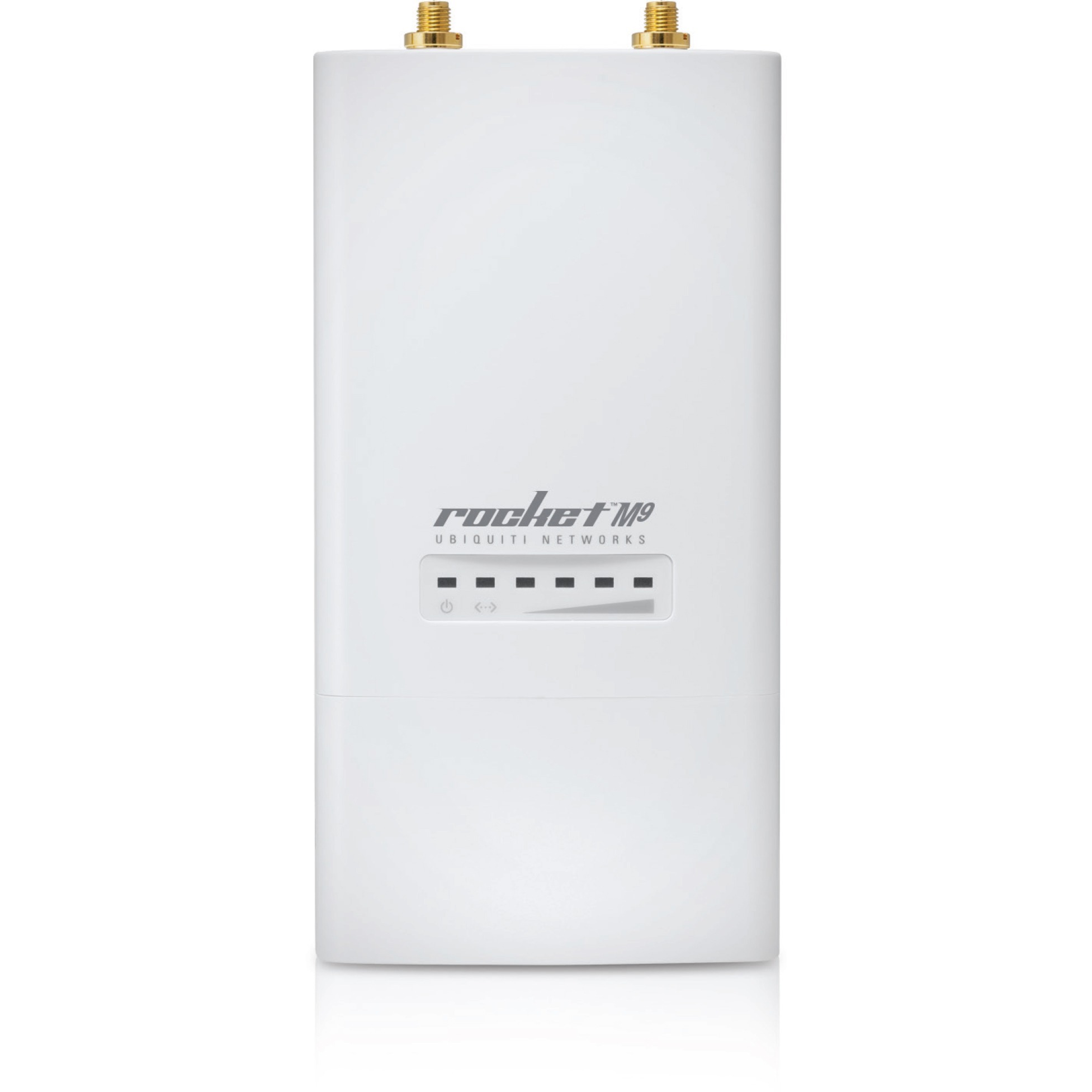

Ubiquiti Networks Rocket M pos.htm Model Overview
Featuring mix-and-match industrial design, the Rocket is a Ubiquiti Networks airMAX BaseStation that supports speeds of up to 150+ Mbps real TCP/IP throughput. It is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications. The Rocket is available in several frequency models: 900 MHz, 2.4 GHz, 3/3.65 GHz, and 5 GHz, to support your specific application. You have the freedom to locate, deploy, and operate the Rocket in these unlicensed bands (subject to local country regulations).
Ubiquiti Networks RocketM9 Point to Point Wireless Overview
Integrated AirMax Technology
Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller.
This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video for seamless access.
Scalability High capacity and scalability.
Long Distance Capable of high speed 50km+ links
Latency Multiple features dramatically reduce noise.
Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller.
This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video for seamless access.
Scalability High capacity and scalability.
Long Distance Capable of high speed 50km+ links
Latency Multiple features dramatically reduce noise.
Technical Information
Interfaces/Ports
Ethernet Technology:
- Ethernet
- Fast Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management & Protocols
Management:
- Web Based Management
- airControl
- airOS
Physical Characteristics
Form Factor:
Pole-mountable
Height:
6.7"
Width:
3.1"
Depth:
1.2"
Weight (Approximate):
1.10 lb
Miscellaneous
Package Contents:
- Rocket M900 Wireless Access Point
- Pole Mounting Kit
- PoE Supply
Certifications & Standards:
- CE
- FCC Part 15.247
- IC RS210
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0804904191655, 0810354021466, 0818213984877, 0818214354532, 0818243169664, 0818253872745, 0991431235904
UPC:
804904191655, 810354021466, 818213984877, 818214354532, 818243169664, 818253872745, 991431235904
EAN:
0804904191655, 0810354021466, 0818213984877, 0818214354532, 0818243169664, 0818253872745, 0991431235904
UNSPSC:
43222631
Get help from a Barcoding Expert!
The Ubiquiti Networks RocketM9 Point to Point Wireless is also known as
UBI-ROCKETM9
