Ubiquiti Networks Rocket AC Wireless Access Points Model Overview

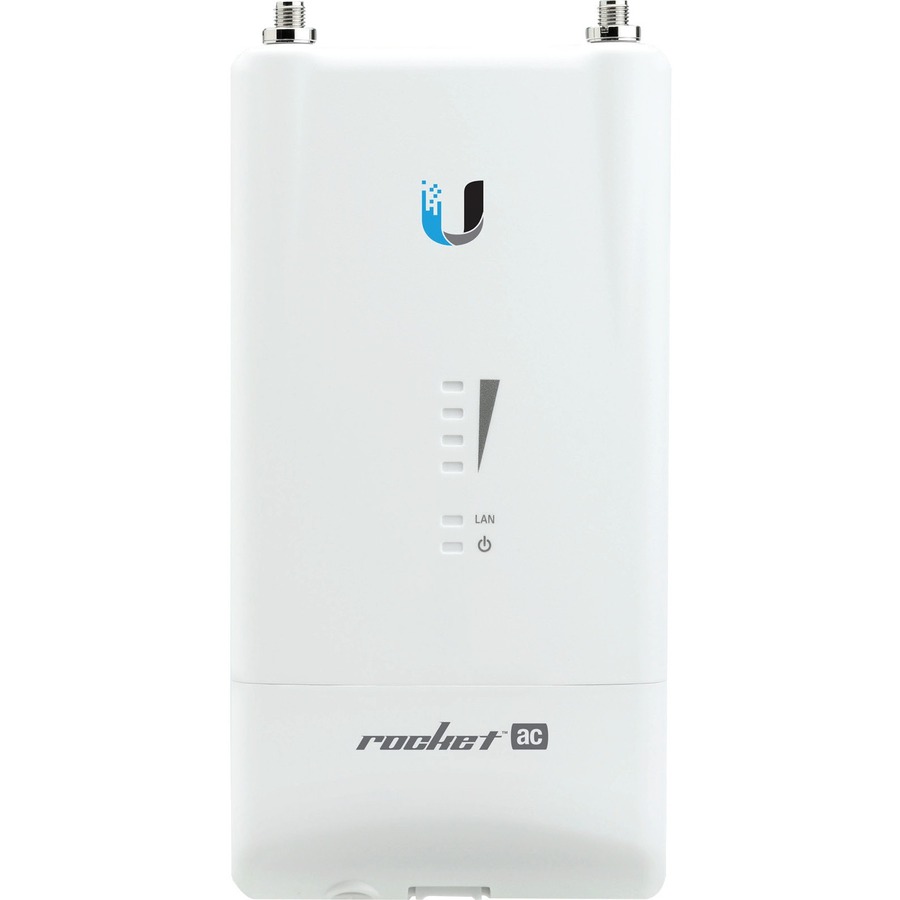

The Rocket5ac Lite from Ubiquiti Networks is a powerful airMAX® ac BaseStation designed for superior performance and flexibility. With throughput capabilities of up to 500+ Mbps, this device is perfect for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) configurations. Featuring advanced TDMA technology, it ensures efficient data transmission while eliminating collisions, making it excellent for high-density environments. Equipped with a robust design suitable for outdoor deployment, the Rocket5ac Lite integrates seamlessly with airMAX antennas, offering a plug-and-play installation experience.
Key Features
High Throughput: Achieves up to 500+ Mbps with airMAX ac technology.
Easy Integration: Plug-and-play with airMAX ac antennas.
Advanced TDMA Protocol: Reduces latency and maximizes airtime efficiency.
Multiple Configuration Options: Supports both PtP and PtMP modes.
Robust Build: UV-stabilized outdoor enclosure for long-lasting performance.
Specifications
Dimensions: 162 x 84 x 37 mm (6.38 x 3.31 x 1.46")
Weight: 250 g (8.81 oz)
Power Supply: 24V, 0.5A Gigabit PoE Adapter
Operating Frequency: 5150-5875 MHz
Processor: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2 SDRAM, 16 MB NOR FLASH
Network Interface: (1) 10/100/1000 Mbps
Channel Size: 10/20/30/40/50/60/80 MHz
Operating Temperature: -40 to 80° C (-40 to 176° F)
Ubiquiti Networks has designed the first airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Rocket® ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
Pair the Rocket5ac Lite with airMAX ac antennas for optimal performance:
PtP backhaul Rocket5ac Lite with the RocketDish™ ac
PtMP links Rocket5ac Lite with the airMAX ac Sector
Software airOS®
airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX ac products.
Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer
Advanced RF Analytics
airMAX ac devices feature a multi -radio architecture to power a revolutionary RF analytics engine.
An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.
Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer.
Carrier to Interference-plus-Noise Ratio (CINR) histograms
Spectral Analysis
airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
Constantly monitors environmental noise
Collects energy data points in real -time spectral views
Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network.
In airView, there are three spectral views, each of which represents different data.
Waterfall Aggregate energy collected for each frequency
Waveform Aggregate energy collected
Ambient Noise Level Background noise energy shown as a function of frequency
airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.
