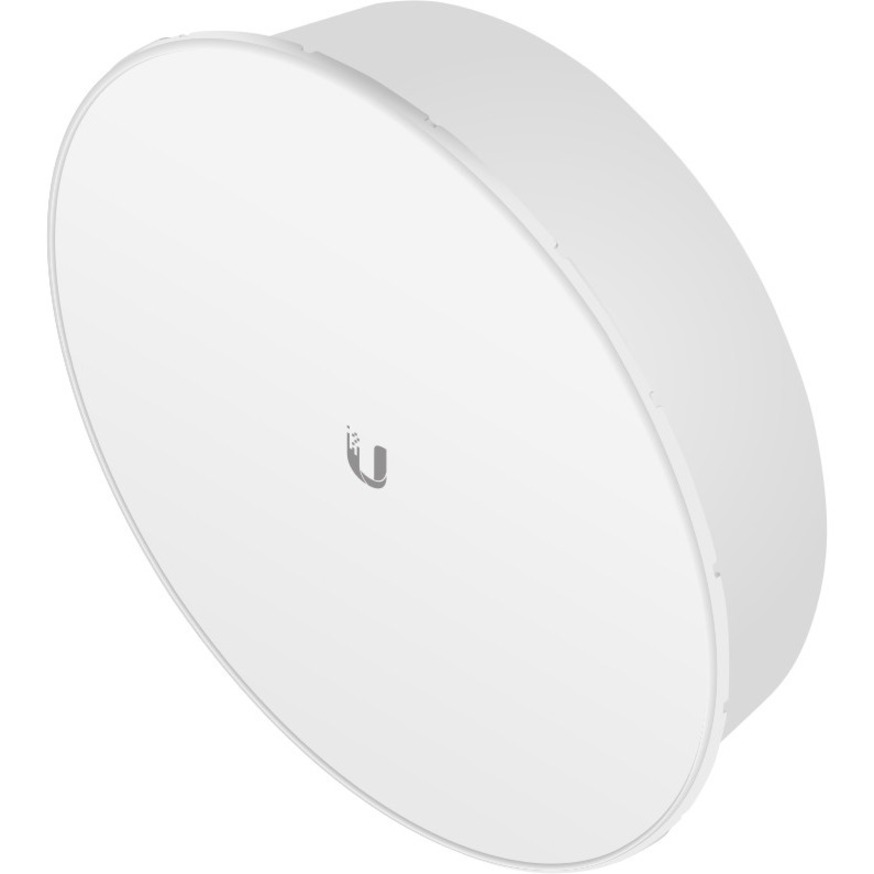

Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless

Part Number: PBE-M5-400-ISO
Model: PowerBeam M5 Iso
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
Frequency Band
5 GHz
Outdoor Antenna Range
15.5 Mile
Wireless Transmission Speed
150 Mbit/s

Product Description:

  Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti PowerBeam M5 PBE-M5-400-ISO IEEE 802.11n 150 Mbit/s Wireless Bridge - 5 GHz - 15.5 Mile Maximum Outdoor Range - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Pole-mountable
Explore all Ubiquiti Networks PowerBeam M5 Iso Point to Multipoint Wirelesses
Add to Quote
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless
Full specifications (PDF)

Ubiquiti Networks PowerBeam M5 Iso Point to Multipoint Wireless Model Overview

Ubiquiti Networks launches the PowerBeam ISO, an airMAX Bridge that is ideal for deployments requiring maximum performance and RF isolation. The PowerBeam ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.
Ubiquiti Networks PBE-M5-400-ISO Point to Point Wireless Overview

Incorporating advanced engineering with proprietary airMAX technology, the PowerBeam®M5 ISO is ideal for deployments requiring maximum performance and RF isolation.

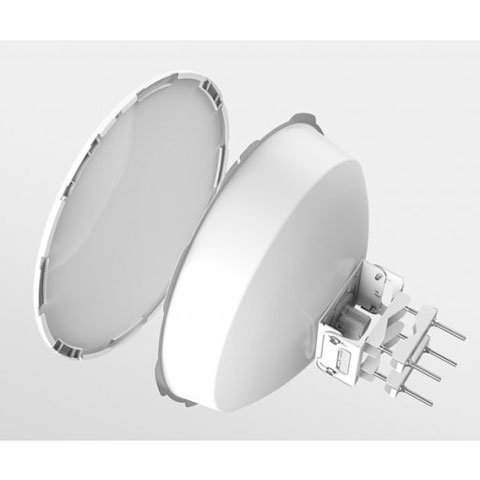

Innovative Mechanical Design

The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

Superior RF Isolation

Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.

Advanced Software Technology

Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
Frequency Band:
5 GHz
Outdoor Antenna Range:
15.5 Mile
Wireless Transmission Speed:
150 Mbit/s
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
Pole-mountable
Height:
10.3"
Width:
18.1"
Depth:
18.1"
Weight (Approximate):
7.10 lb
Miscellaneous
Package Contents:
  • 5 GHz airMAX Bridge with RF Isolated Reflector

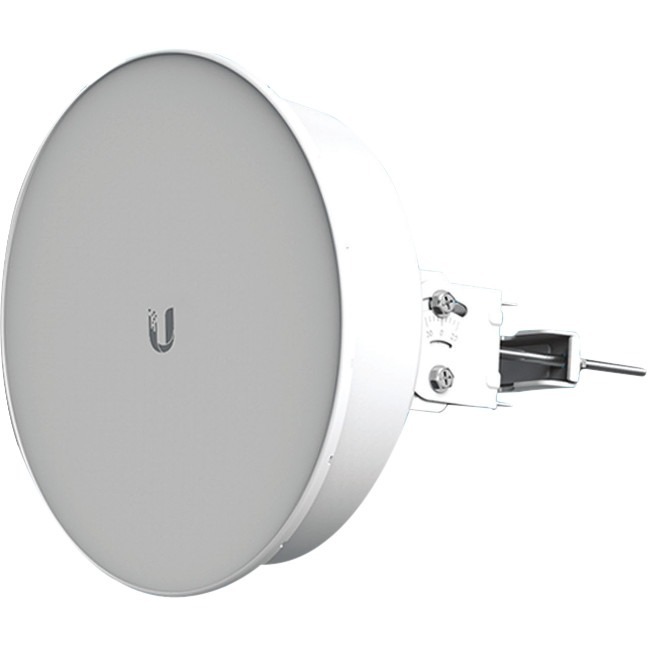

  • Pole-Mount Kit
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0688474342682, 0688474342699, 0810354023811
UPC: 688474342682, 688474342699, 810354023811
EAN: 0688474342682, 0688474342699, 0810354023811
UNSPSC: 43222631
