Ubiquiti Networks NBM9 Point to Multipoint Wireless

Part Number: NBM9
Model: NanoBridge M
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
Antenna Gain
11.3 dBi
Wireless Transmission Speed
100 Mbit/s
Features
MIMO TechnologyQuality of Service (QoS)

Product Description:

  Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti NanoBridge NBM9 IEEE 802.11n 100 Mbit/s Wireless Bridge - 1 x Network (RJ-45) - Ethernet, Fast Ethernet - Pole-mountable
Explore all Ubiquiti Networks NanoBridge M Point to Multipoint Wirelesses
Add to Quote
Ubiquiti Networks NBM9 Point to Multipoint Wireless
Ubiquiti Networks NBM9 Point to Multipoint Wireless
Ubiquiti Networks NBM9 Point to Multipoint Wireless
Ubiquiti Networks NBM9 Point to Multipoint Wireless
Ubiquiti Networks NBM9 Point to Multipoint Wireless
Ubiquiti Networks NBM9 Point to Multipoint Wireless Ubiquiti Networks NBM9 Point to Multipoint Wireless Ubiquiti Networks NBM9 Point to Multipoint Wireless Ubiquiti Networks NBM9 Point to Multipoint Wireless Ubiquiti Networks NBM9 Point to Multipoint Wireless
Full specifications (PDF)

Ubiquiti Networks NanoBridge M Point to Multipoint Wireless Model Overview

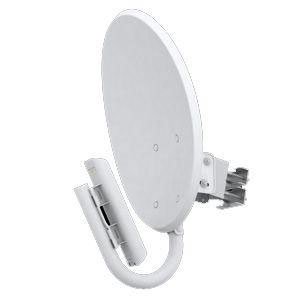

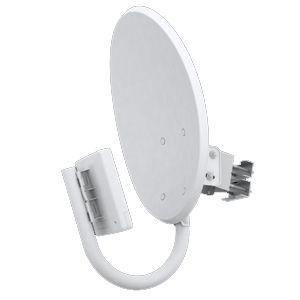

With the NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). The NanoBridge combines Ubiquiti's InnerFeed and airMAX technologies to create a simple, yet powerful wireless unit capable of up to 100+ Mbps real outdoor throughput and up to 30+ km range.
Ubiquiti Networks NBM9 Point to Multipoint Wireless Overview
With the NanoBridge®, Ubiquiti Networks™ pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment).

The NanoBridge combines Ubiquiti's InnerFeed™ and airMAX technologies to create a simple, yet powerful wireless unit capable of up to 100+ Mbps real outdoor throughput and up to 30+ km range.

InnerFeed Technology

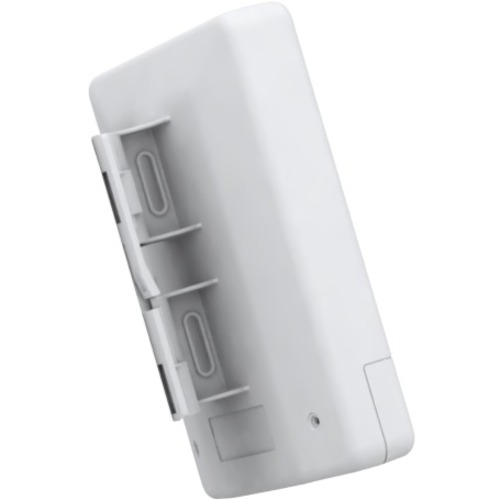

Ubiquiti's revolutionary InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable*. This improves performance because it eliminates cable losses.

Providing high performance and robust all-in-one mechanical design at a low cost, the NanoBridge is extremely versatile and cost-effective to deploy.
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
Antenna Gain:
11.3 dBi
Wireless Transmission Speed:
100 Mbit/s
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management & Protocols
Management:
  • airControl
  • Web Based Management
Physical Characteristics
Form Factor:
Pole-mountable
Height:
28.5"
Width:
17.3"
Depth:
21.4"
Weight (Approximate):
11.24 lb
Miscellaneous
Additional Information:

NBOD9 - Sold Separately

Certifications & Standards:
  • FCC
  • IC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0700175495266, 0810354021497, 4250605598310
UPC: 700175495266, 810354021497
EAN: 0700175495266, 0810354021497, 4250605598310
UNSPSC: 43222631
