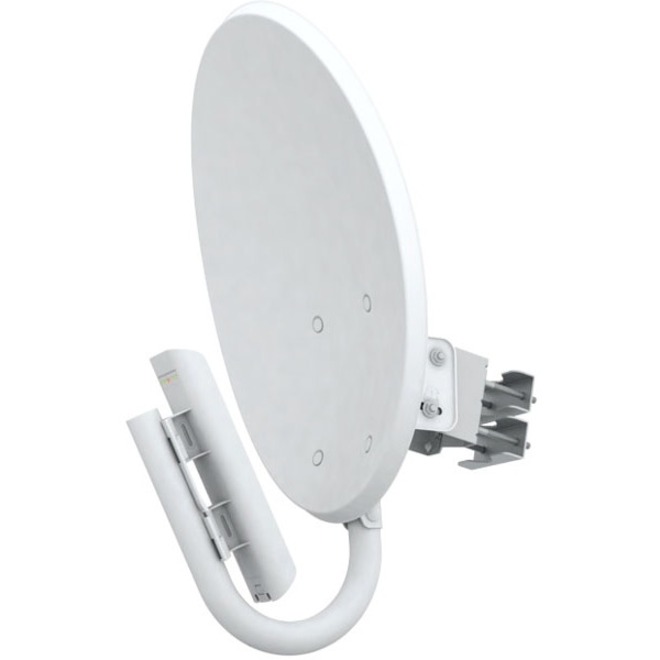

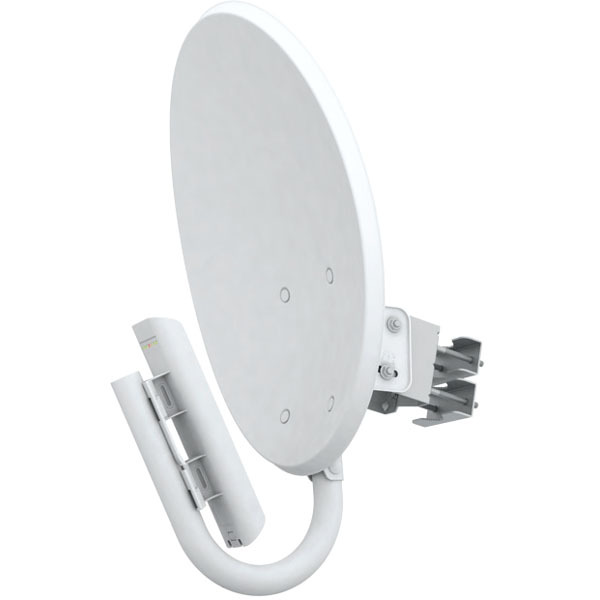

Ubiquiti Networks NBM3 Point to Multipoint Wireless

Ubiquiti Networks NanoBridge M - Ubiquiti Nanobridge NBM3 IEEE 802.11n 150 Mbit/s Wireless Bridge - 12.4 Mile Maximum Outdoor Range - 2 x Network (RJ-45) - Ethernet, Fast Ethernet - Pole-mountable.
DUE TO GLOBAL MANUFACTURE SUPPLY CHAIN ISSUES, EXPECT EXTENDED LEAD TIMES FOR UBIQUITI PRODUCTS.
  • In situations where running a cable would be impractical or prohibited, use this wireless bridge to create point-to-point Wi-Fi connectivity between two wired networks
  • 150 Mbit/s wireless transmission speed provides high and efficient communication with maximum efficiency
  • With IEEE 802.11n standard and up to 150 Mbit/s data transfer rates, this wireless bridge enables efficient network performance
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
  • PoE+ port to receive data and power of up to 25.5W through a single cable in places where a power outlet is not available
  • 12.4 Mile outdoor antenna range for reliable connectivity and productive output
  • Quality of Service (QoS) feature for maximum productivity with added dependability
  • Pole-mountable form factor offers comfortable usage for a longer duration
Read More
$176.84
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Ubiquiti Networks NanoBridge M Point to Multipoint Wireless Model Overview
With the NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). The NanoBridge combines Ubiquiti's InnerFeed and airMAX technologies to create a simple, yet powerful wireless unit capable of up to 100+ Mbps real outdoor throughput and up to 30+ km range.
Ubiquiti Networks NBM3 Point to Multipoint Wireless Overview
With the NanoBridge®, Ubiquiti Networks™ pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment).

The NanoBridge combines Ubiquiti's InnerFeed™ and airMAX technologies to create a simple, yet powerful wireless unit capable of up to 100+ Mbps real outdoor throughput and up to 30+ km range.

InnerFeed Technology

Ubiquiti's revolutionary InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable*. This improves performance because it eliminates cable losses.

Providing high performance and robust all-in-one mechanical design at a low cost, the NanoBridge is extremely versatile and cost-effective to deploy.
Technical Information
Wireless LAN Standard:
IEEE 802.11n
Antenna Gain (Isotropic):
22.5 dBi
Outdoor Antenna Range:
12.4 Mile
Wireless Transmission Speed:
150 Mbit/s
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management & Protocols
Management:
  • airControl
  • Web Based Management
Physical Characteristics
Form Factor:
Pole-mountable
Height:
27.8"
Width:
17.3"
Depth:
19.4"
Weight (Approximate):
10.25 lb
Miscellaneous
Package Contents:
  • High-Performance airMAX Bridge
  • Pole-Mount Kit
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0810354021473
UPC: 810354021473
EAN: 0810354021473
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ubiquiti Networks NBM3 Point to Multipoint Wireless is also known as UBI-NBM3
