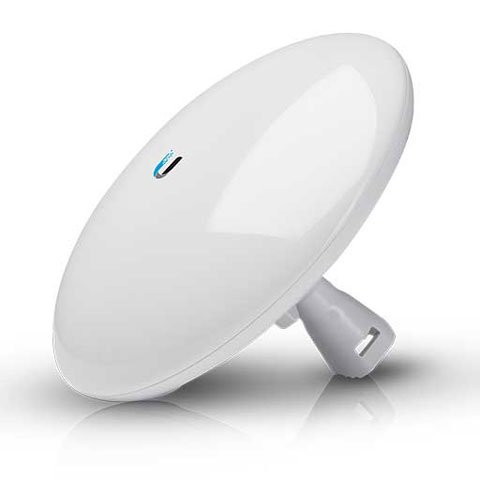

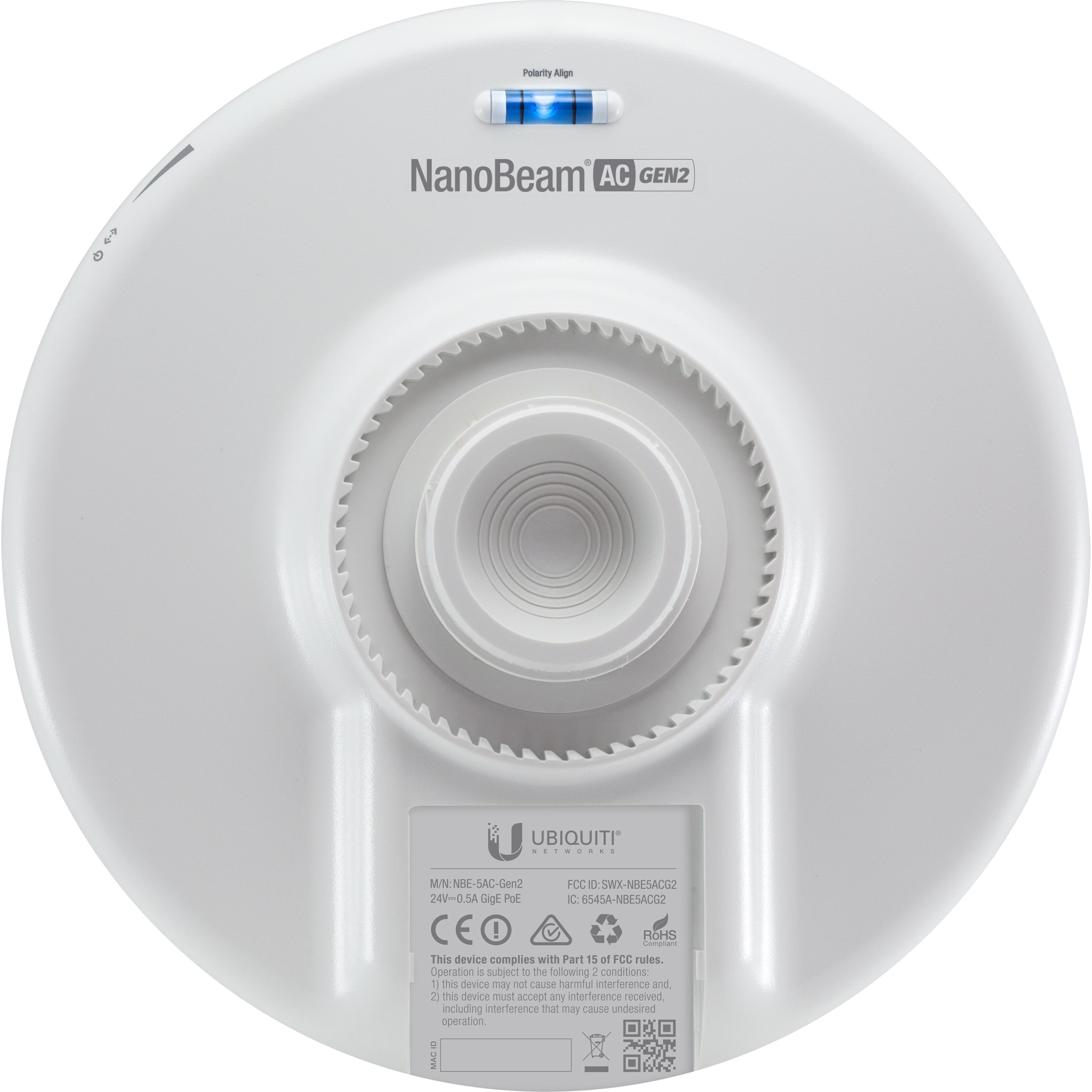

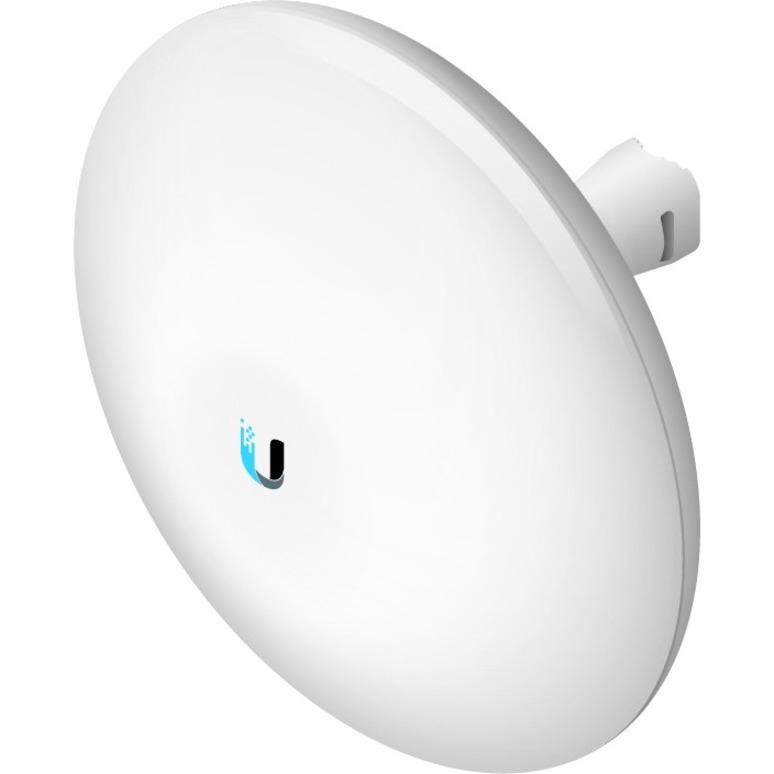

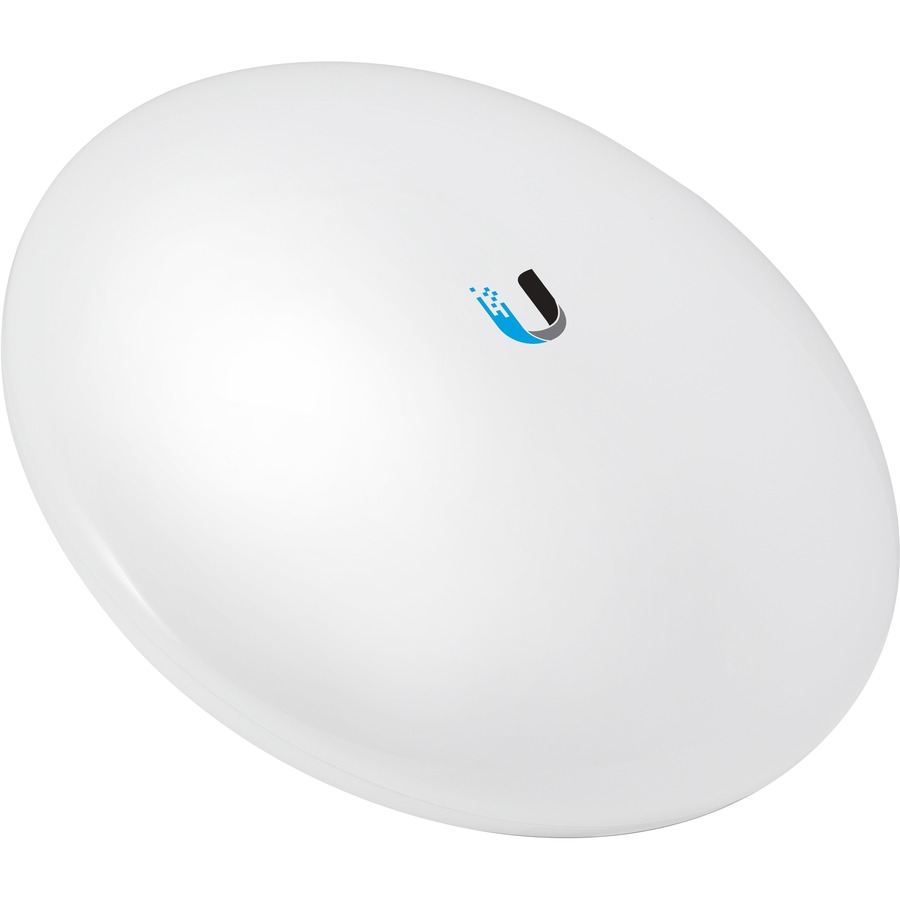

The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.
Features:
The Ubiquiti Networks NBE-5AC-Gen2 is an airMAX CPE (Customer Premises Equipment) designed for point-to-multipoint and point-to-point wireless deployments. It can function as a client device in airMAX PtMP networks or as a powerful wireless client for long-range point-to-point links, making it versatile for various network topologies.
The NBE-5AC-Gen2 directs RF energy in a tighter beamwidth, which focuses transmission in one direction and blocks or spatially filters out noise from other RF signals. This improved noise immunity is especially important in areas crowded with other RF signals of the same or similar frequency.
The NBE-5AC-Gen2 operates on IEEE 802.11ac at 5 GHz with throughput up to 450 Mbps and features dual gigabit Ethernet ports with PoE support. It includes a dedicated Wi-Fi management radio and runs airOS 8, Ubiquiti's operating system for airMAX ac products.
The NBE-5AC-Gen2 supports multiple mounting configurations including pole-mount, wall-mount, and window-mount options, providing flexibility for various deployment scenarios in warehouses, logistics facilities, and outdoor environments.
The NBE-5AC-Gen2 supports airMAX ac protocol, access point PtMP airMAX mixed mode, long-range point-to-point link mode, selectable channel widths (10/20/30/40/50/60/80 MHz for PtP and 10/20/30/40 MHz for PtMP), automatic channel selection, and WPA2 security. It also includes automatic distance selection and manual or automatic transmit power control.
The NBE-5AC-Gen2 features an integrated design that combines the radio and antenna into a single unit, delivering maximum gain in the smallest footprint. This compact, cost-effective design eliminates unnecessary cabling and simplifies installation while maintaining high performance.
Full specifications (PDF)
