Full specifications (PDF)
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
5 GHz
Outdoor Antenna Range:
6.2 Mile
Wireless Transmission Speed:
450 Mbit/s

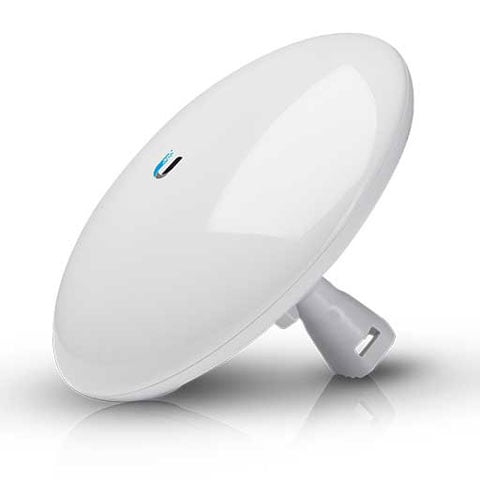

Ubiquiti Networks NanoBeam AC Point to Multipoint Wireless Model Overview
Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam 5AC Gen 2. The NanoBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Providing high performance and an innovative form factor, the NanoBeam 5AC Gen 2 is versatile and cost effective to deploy.

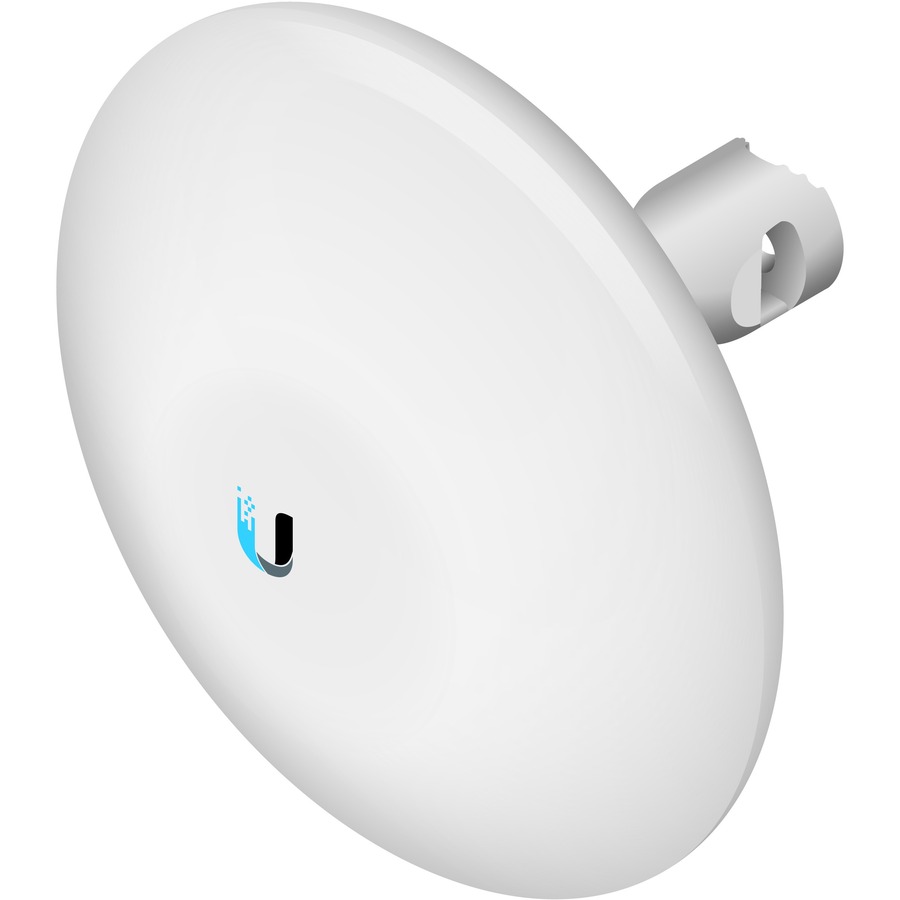

Ubiquiti Networks NBE-5AC-16 Point to Multipoint Wireless Overview
High-Performance airMAX® ac Bridge
Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® ac is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna "Beam" Performance
The form factor of the NanoBeam® ac features the highest gain for its size. The NanoBeam ac's excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

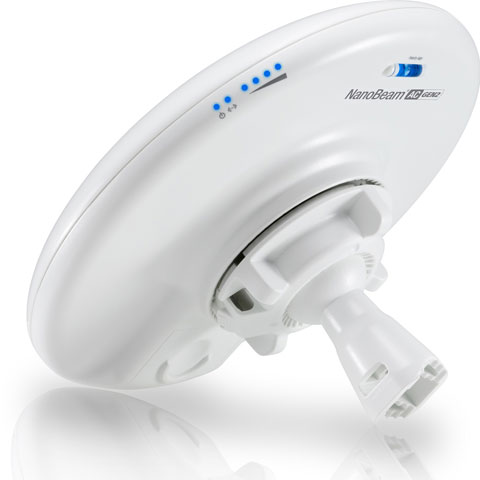

Plug and Play Installation
The NanoBeam® ac mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Wall Mount Kit
Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.
Technical Information
Interfaces/Ports
Ethernet Technology:
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
- Wall Mountable
- Pole-mountable
Height:
2.1"
Width:
5.5"
Depth:
5.5"
Weight (Approximate):
11.29 oz
Miscellaneous
Package Contents:
- NanoBeam ac NBE-5AC-16 Wireless Bridge
- Pole Mount Kit
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0011650909780, 0688474343603, 0688474343610, 0703624196448, 0703624197933, 0810354022418, 0810354025334, 5053118066630, 9780961114152
UPC:
011650909780, 688474343603, 688474343610, 703624196448, 703624197933, 810354022418, 810354025334
EAN:
0011650909780, 0688474343603, 0688474343610, 0703624196448, 0703624197933, 0810354022418, 0810354025334, 5053118066630, 9780961114152
UNSPSC:
43222631
