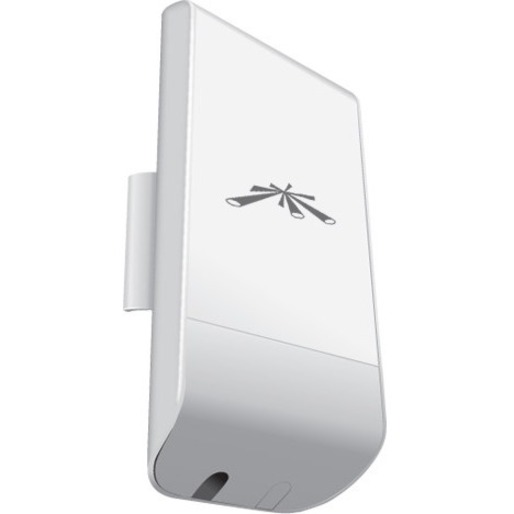

Ubiquiti Networks LOCOM5 Point to Multipoint Wireless

Part Number: LOCOM5
Model: NanoStation M
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Network Band
Single Band
Frequency Band
5 GHz
ISM Band
No
UNII Band
Yes

Product Description:

  Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti NanoStation locoM5 IEEE 802.11n 150 Mbit/s Wireless Bridge - 9.3 Mile Maximum Outdoor Range - 1 x Network (RJ-45) - Ethernet, Fast Ethernet - Pole-mountable
Explore all Ubiquiti Networks NanoStation M Point to Multipoint Wirelesses
Add to Quote
Ubiquiti Networks LOCOM5 Point to Multipoint Wireless
Ubiquiti Networks LOCOM5 Point to Multipoint Wireless
Ubiquiti Networks LOCOM5 Point to Multipoint Wireless
Ubiquiti Networks LOCOM5 Point to Multipoint Wireless Ubiquiti Networks LOCOM5 Point to Multipoint Wireless Ubiquiti Networks LOCOM5 Point to Multipoint Wireless
Full specifications (PDF)

Ubiquiti Networks NanoStation M Point to Multipoint Wireless Model Overview

The NanoStation M and NanoStation locoM by Ubiquiti Networks are game changing solutions for outdoor and indoor connectivity. Designed with cutting-edge industrial aesthetics and high-performance airMAX® technology, these compact devices provide efficient, cost-effective broadband equipment. Suitable for both Point-to-Multi-Point (PtMP) and Point-to-Point (PtP) applications, they deliver exceptional scalability and improved latency for seamless data transmission. Upgrade your network capabilities and experience reliable high-speed connections no matter the environment.


Key Features
  • Versatile Design: Ideal for both indoor and outdoor installations.
  • Powerful Integrated Antenna: High gain for long-distance communication.
  • Intelligent QoS: Prioritizes voice and video for improved streaming.
  • Remote Hardware Reset: Easily reset your device from a distant power supply.
  • Dual Ethernet Connectivity: Includes a secondary Ethernet port with software-enabled PoE output.

Specifications
  • Dimensions: 294 x 31 x 80 mm (NanoStation M5)
  • Weight: 400 g (NanoStation M5)
  • Power Supply: 24V, 0.5A PoE
  • Max. Power Consumption: 8W
  • Operating Frequency: 5 GHz
  • Gain: 14.6-16.1 dBi
  • Networking Interface: (2) 10/100 Ethernet Ports
  • Operating Temperature: -30 to 75° C
  • Operating Humidity: 5 to 95% Noncondensing
  • Wireless Approvals: FCC Part 15.247, IC RS210, CE
Ubiquiti Networks LOCOM5 Point to Multipoint Wireless Overview

Low-cost and efficient broadband 5 GHz CPE.

  • 5 GHz frequency band
  • Cost-effective, high-performance
  • Plug-and-play integration with airMAX antennas
Full specifications (PDF)
Technical Information
Network Band:
Single Band
Frequency Band:
5 GHz
ISM Band:
No
UNII Band:
Yes
UNII Minimum Frequency:
5.17 GHz
UNII Maximum Frequency:
5.88 GHz
Antenna Gain (Isotropic):
13 dBi
Indoor/Outdoor:
Outdoor
MIMO Technology:
Yes
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE PD Port:
Yes
Audio Line Out:
No
Serial Port:
No
Management & Protocols
Management:
  • airControl
  • Web Based Management
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Consumption:
5.50 W
Physical Characteristics
Form Factor:
Pole-mountable
Antenna Form Factor:
Internal
Height:
6.3"
Width:
3.1"
Depth:
1.2"
Weight (Approximate):
6.35 oz
Item Numbers
GTIN: 0042822132903, 0602003746284, 0602003746291, 0609722639118, 0609728683610, 0701748268768, 0701748268775, 0810354022340, 0810354024931, 0817882023252
UPC: 042822132903, 602003746284, 602003746291, 609722639118, 609728683610, 701748268768, 701748268775, 810354022340, 810354024931, 817882023252
EAN: 0042822132903, 0602003746284, 0602003746291, 0609722639118, 0609728683610, 0701748268768, 0701748268775, 0810354022340, 0810354024931, 0817882023252
UNSPSC: 43222631
