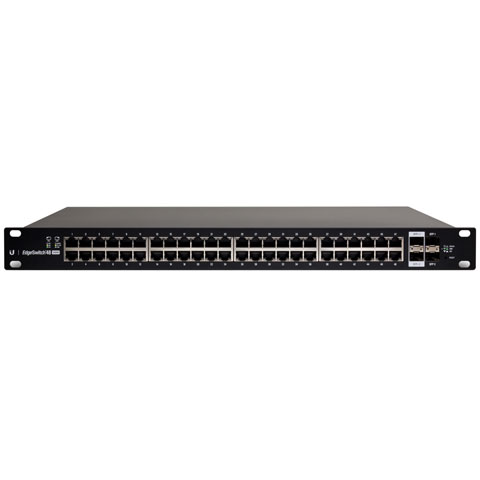

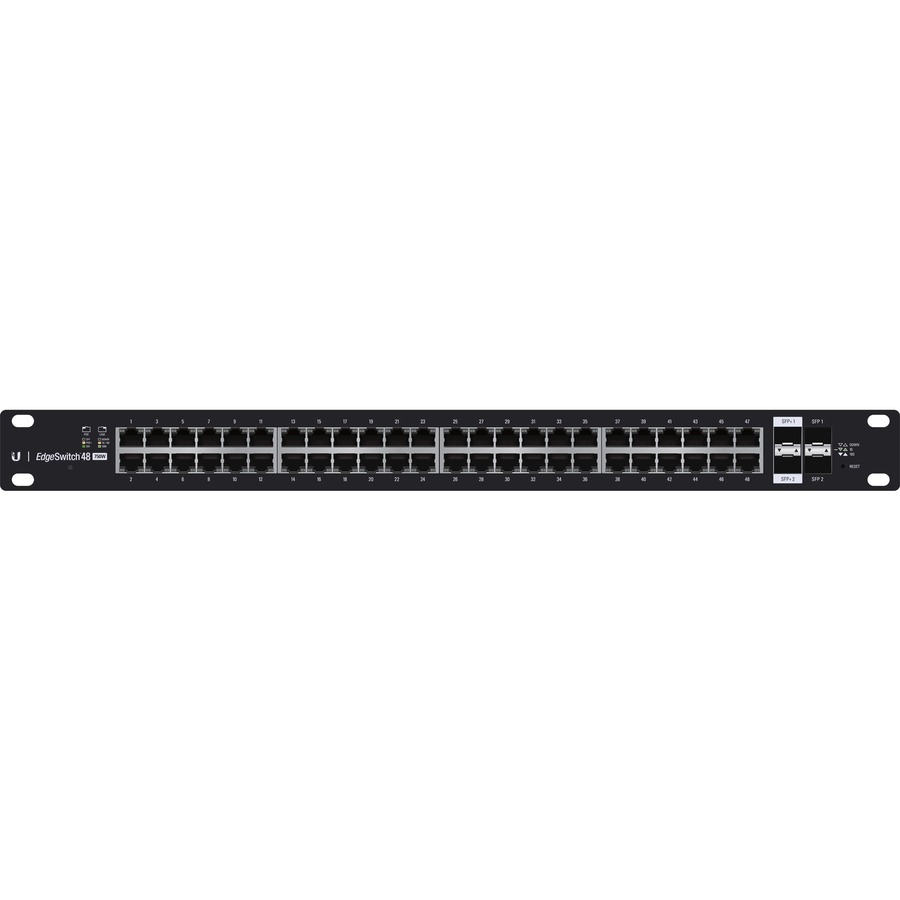

Ubiquiti Networks ES-48-750W Ethernet Switch

Part Number: ES-48-750W
Model: EdgeSwitch
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
48
Token Ring Port
No
LRE Port
No
Uplink Port
Yes

Product Description:

  Ubiquiti EdgeSwitch ES-48-750W Layer 3 Switch - 48 Ports - Manageable - 3 Layer Supported - 1U High - Rack-mountable - 1 Year Limited Warranty.
Explore all Ubiquiti Networks EdgeSwitch Network Switches
Add to Quote
Ubiquiti Networks ES-48-750W Ethernet Switch
Ubiquiti Networks ES-48-750W Ethernet Switch
Ubiquiti Networks ES-48-750W Ethernet Switch
Ubiquiti Networks ES-48-750W Ethernet Switch
Ubiquiti Networks ES-48-750W Ethernet Switch
Ubiquiti Networks ES-48-750W Ethernet Switch
Ubiquiti Networks ES-48-750W Ethernet Switch Ubiquiti Networks ES-48-750W Ethernet Switch Ubiquiti Networks ES-48-750W Ethernet Switch Ubiquiti Networks ES-48-750W Ethernet Switch Ubiquiti Networks ES-48-750W Ethernet Switch Ubiquiti Networks ES-48-750W Ethernet Switch
Full specifications (PDF)

Ubiquiti Networks EdgeSwitch Network Switch Model Overview

Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Ubiquiti Networks ES-48-750W Ethernet Switch Overview

Advanced Switching Technology for the Masses

Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
48
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Number of PoE+ (RJ-45) Ports:
48
Stack Port:
No
Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
  • 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP
  • SFP+
Number of SFP Slots:
2
Number of SFP+ Slots:
2
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
  • Web-based Management
  • Command Line Interface (CLI)
  • SNMP v1, v2, and v3
  • SSH 1.5 and 2.0
  • SSL 3.0 and TLS 1.0
  • Secure Copy (SCP)
  • Telnet
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.8"
Width:
19.1"
Depth:
13.7"
Weight (Approximate):
11.68 lb
Miscellaneous
Certifications & Standards:
  • CE
  • FCC
  • IC
IEEE Standards:
  • 802.1AB
  • 802.1D
  • 802.1S
  • 802.1W
  • 802.1Q
  • 802.1p
  • 802.1X
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.1ak
  • 802.3ac
  • 802.3ad
  • 802.3x
  • 802.1D
  • 802.1D
  • 802.1Q
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0686727770619, 0810354020681, 0818250460204, 0826927746988
UPC: 686727770619, 810354020681, 818250460204, 826927746988
EAN: 0686727770619, 0810354020681, 0818250460204, 0826927746988
UNSPSC: 43222612
