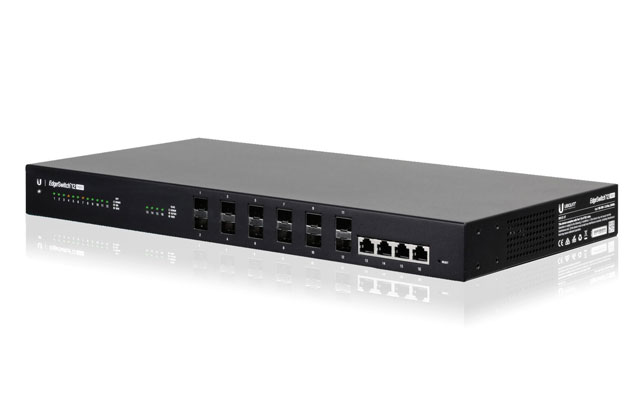

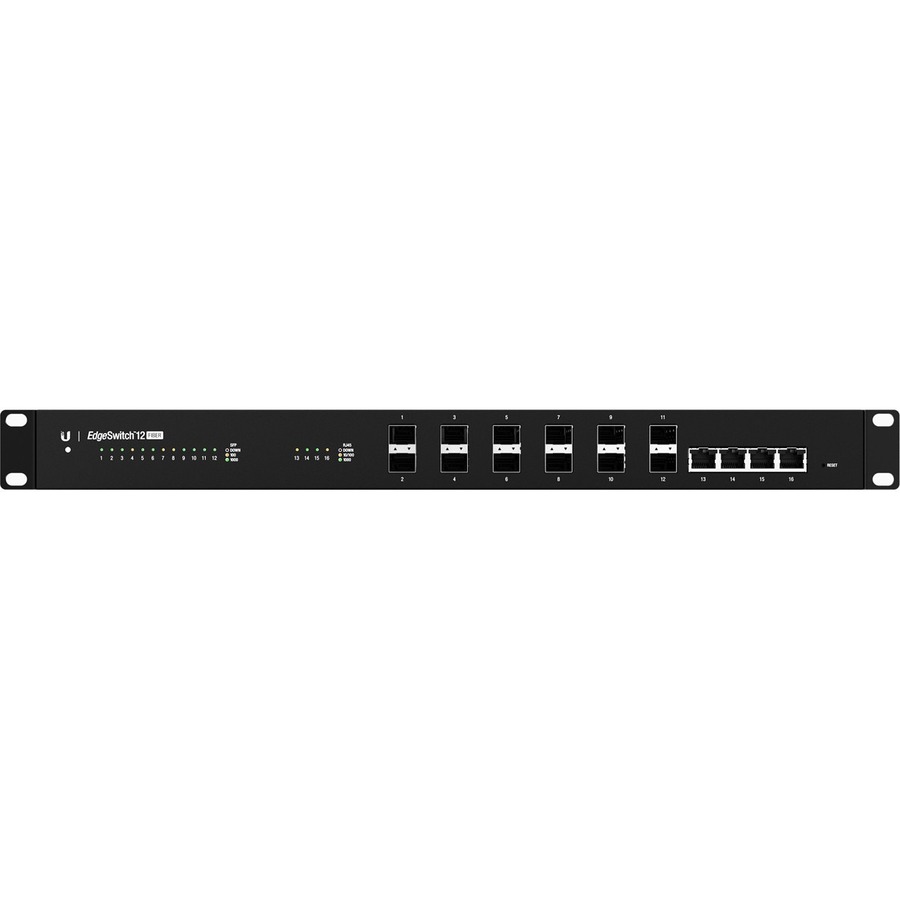

Ubiquiti Networks ES-12F Ethernet Switch

Part Number: ES-12F
Model: EdgeSwitch 12 Fiber
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
4
Modular
Yes
Port/Expansion Slot Details
12 x Gigabit Ethernet Expansion Slot4 x Gigabit Ethernet Network
Media Type Supported
Optical FiberTwisted Pair

Product Description:

  Ubiquiti Managed Gigabit Fiber Switch - 4 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty.
Explore all Ubiquiti Networks EdgeSwitch 12 Fiber Ethernet Switches
Add to Quote
Ubiquiti Networks ES-12F Ethernet Switch
Ubiquiti Networks ES-12F Ethernet Switch
Ubiquiti Networks ES-12F Ethernet Switch Ubiquiti Networks ES-12F Ethernet Switch
Full specifications (PDF)

Ubiquiti Networks EdgeSwitch 12 Fiber Ethernet Switch Model Overview

The Ubiquiti EdgeSwitch 12 Fiber (Model: ES-12F) is a powerful, fully managed Gigabit fiber switch designed to deliver outstanding performance and versatility for high-bandwidth networks. Featuring non-blocking throughput of 16 Gbps and robust Layer-2 switching capabilities, this switch ensures efficient data processing across all ports while maintaining low latency. The EdgeSwitch Fiber includes 12 SFP ports alongside four Gigabit RJ45 ports, making it ideal for both fiber and copper connectivity. Its comprehensive user interface simplifies management, while advanced features cater to the needs of demanding users.


Key features:
  • 12 Gigabit SFP Ports for optimal fiber connectivity
  • 4 Gigabit RJ45 Ports for copper connections
  • Non-Blocking Throughput of up to 16 Gbps
  • Advanced Layer-2 Switching Features and Layer-3 routing capabilities
  • User-Friendly Interface featuring both Graphical User Interface and CLI

Specifications:
  • Model: ES-12F
  • Total Non-Blocking Throughput: 16 Gbps
  • Switching Capacity: 32 Gbps
  • Forwarding Rate: 23.81 Mpps
  • Max. AC Power Consumption: 56W
  • Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69 inches)
  • Weight: 2.68 kg (5.91 lb)
  • Operating Temperature: -5 to 40°C (23 to 104°F)
  • Rackmount: Yes, 1U High
Ubiquiti Networks ES-12F Ethernet Switch Overview
The EdgeSwitch™ Fiber is an aggregation switch that offers robust performance, low latency, and intelligent switching for growing networks.

Gigabit Connectivity

For fiber connectivity, the EdgeSwitch Fiber features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.

Powerful Switching Performance

The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.

Advanced Enterprise Switching

The EdgeSwitch Fiber uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.

Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
4
Modular:
Yes
Port/Expansion Slot Details:
  • 12 x Gigabit Ethernet Expansion Slot
  • 4 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 1000Base-X
  • 1000Base-T
I/O Expansions
Number of Total Expansion Slots:
12
Expansion Slot Type:
SFP
Shared SFP Slot:
No
Number of SFP Slots:
12
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
8.7"
Weight (Approximate):
5.71 lb
Miscellaneous
Package Contents:
  • Managed Gigabit Fiber Switch
  • Rack-Mount Brackets
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0686727770169, 0686727770183, 0810354023583, 0810354023606, 0818250395261
UPC: 686727770169, 686727770183, 810354023583, 810354023606, 818250395261
EAN: 0686727770169, 0686727770183, 0810354023583, 0810354023606, 0818250395261
UNSPSC: 43222612
