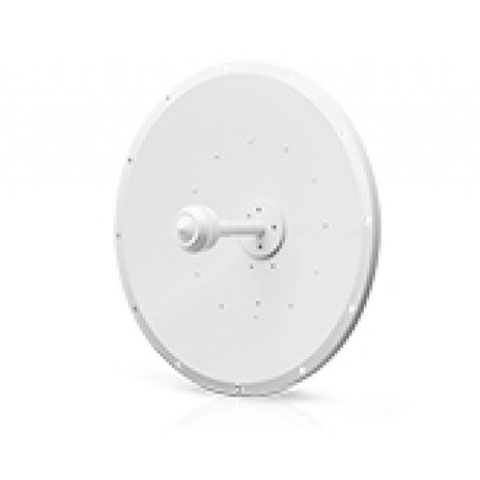

Ubiquiti Networks AF-2G24-S45 Wireless Antenna

Part Number: AF-2G24-S45
Model: airFiber X
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Operating Frequency Range
2.4 GHz
Antenna Gain
24 dBi
Polarization
Slant
Height
25.59"

Product Description:

  Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti airFiber X Antenna - 2.40 GHz - 24 dBi - Radio CommunicationPole
Explore all Ubiquiti Networks airFiber X Wireless Antennas
Add to Quote
Ubiquiti Networks AF-2G24-S45 Wireless Antenna
Ubiquiti Networks AF-2G24-S45 Wireless Antenna
Ubiquiti Networks AF-2G24-S45 Wireless Antenna
Ubiquiti Networks AF-2G24-S45 Wireless Antenna
Ubiquiti Networks AF-2G24-S45 Wireless Antenna
Ubiquiti Networks AF-2G24-S45 Wireless Antenna
Ubiquiti Networks AF-2G24-S45 Wireless Antenna
Ubiquiti Networks AF-2G24-S45 Wireless Antenna Ubiquiti Networks AF-2G24-S45 Wireless Antenna Ubiquiti Networks AF-2G24-S45 Wireless Antenna Ubiquiti Networks AF-2G24-S45 Wireless Antenna Ubiquiti Networks AF-2G24-S45 Wireless Antenna Ubiquiti Networks AF-2G24-S45 Wireless Antenna Ubiquiti Networks AF-2G24-S45 Wireless Antenna
Full specifications (PDF)

Ubiquiti Networks airFiber X Wireless Antenna Model Overview

The airFiber X antenna delivers 2x2, dual-polarity performance. Pair an airFiber X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.
Ubiquiti Networks AF-2G24-S45 Wireless Antenna Overview
The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

Models: AF-2G24-S45, AF-3G26-S45, AF-5G23-S45, AF-5G30-S45, AF-5G34-S45

Compact Footprint for Deployment Flexibility

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

Plug and Play Integration

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

Advanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.

airFiber X Conversion Kit

The 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model AF-5G-OMT-S45, converts the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.
Full specifications (PDF)
Technical Information
Operating Frequency Range:
2.4 GHz
Antenna Gain:
24 dBi
Polarization:
Slant
Physical Characteristics
Height:
25.59"
Width:
25.59"
Depth:
11.61"
Form Factor:
Pole
Weight (Approximate):
21.61 lb
Miscellaneous
Application/Usage:
Radio Communication
Package Contents:
  • airFiber X Antenna
  • Dish Reflector
  • Antenna Feed
  • Mounting Bracket
  • 2 x Pole Clamps
  • Protective Shroud
  • 2 x Stabilizer Brackets
  • Elevation Rod
  • 4 x M10x150 Carriage Bolts
  • 2 x M10x100 Bolts
  • 3 x M10x25 Carriage Bolts
  • 4 x M4 Bolts
  • Quick Start Guide
Compatibility:
airFiber AF-2X Radio
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0085783298332, 0810354023743, 0818263367835, 0818275867996, 0991429999283
UPC: 085783298332, 810354023743, 818263367835, 818275867996, 991429999283
EAN: 0085783298332, 0810354023743, 0818263367835, 0818275867996, 0991429999283
UNSPSC: 43221706
